Power Ceramic Wirewound Resistors 5W-10W For Inrush Current Prevention

Ceramic Fusible Resistors Circuit Breaker for the prevention of inrush current

SQF fusible resistor is using metal alloy wire Wounded on ceramic core, then connected with Thermal fuse and this object with terminals inserted into the ceramic case which has good thermal conductivity, and finally sealed and insulated with Inorganic fillers.

Features:

• Suitable for the prevention of inrush current for switching regulations.
• Excels in surge withstanding capability
• Respond quickly to over loading as well as external overheating.
• The dispersion in fusing characteristics has been minimized and assure high stability performance

Dimensions:

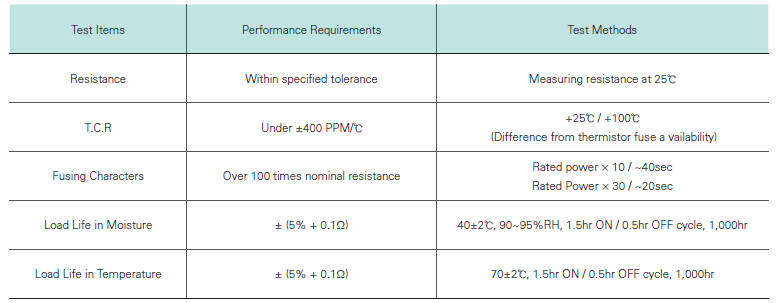

Electrical Performance:

Jingdacheng Electronics(JDC) is a leading power resistors manufacturer in China, and we are always focusing on providing various resistors and loading solutions since it was established in 1997. With 24 years industry experiences, JDC has a professional team for resistor designing, manufacturing and quality control, and most of our managements have been working for JDC at least 10 years. Even approved by ISO9001:2014, JDC started proceeding a very high standard (Japan JIS) of manufacturing and quality inspection since we built a long partner cooperation with Japan IWAKI MUSEN in 2013. Now, JDC is providing many resistors and solutions for some top500 companies, Such as: Huawei, Yaskawa, Panasonic, Midea, etc.
