| Categories | Medical ECG Machine |
|---|---|
| Brand Name: | RAINBOW |
| Model Number: | ECG- 8803 |
| Certification: | ISO13485, FSC |
| Place of Origin: | Hunan, China |
| MOQ: | 1 |
| Price: | Nogtiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000units/year |
| Delivery Time: | Within 3 days |
| Packaging Details: | Carton box dimension: 34.5*18.5*39.5cm |
| type: | medical ECG machine |
| original: | Hunan, China |
| size: | 3.5inch |
| weight: | 3.3kg |
| Company Info. |
| Hunan Province Rainbow Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Electrocardiograph

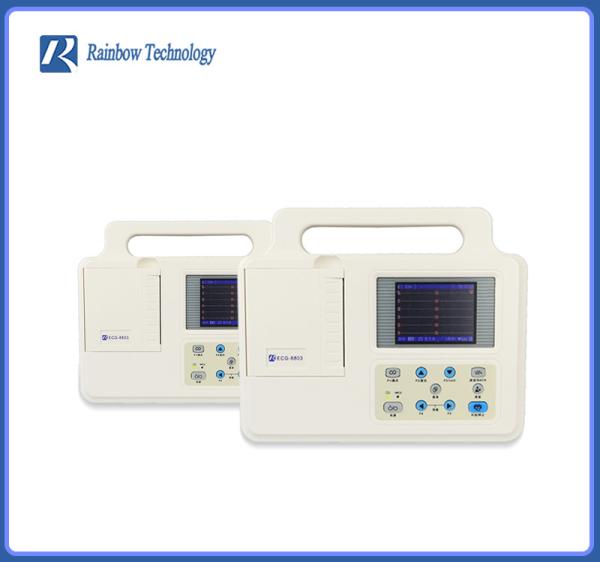

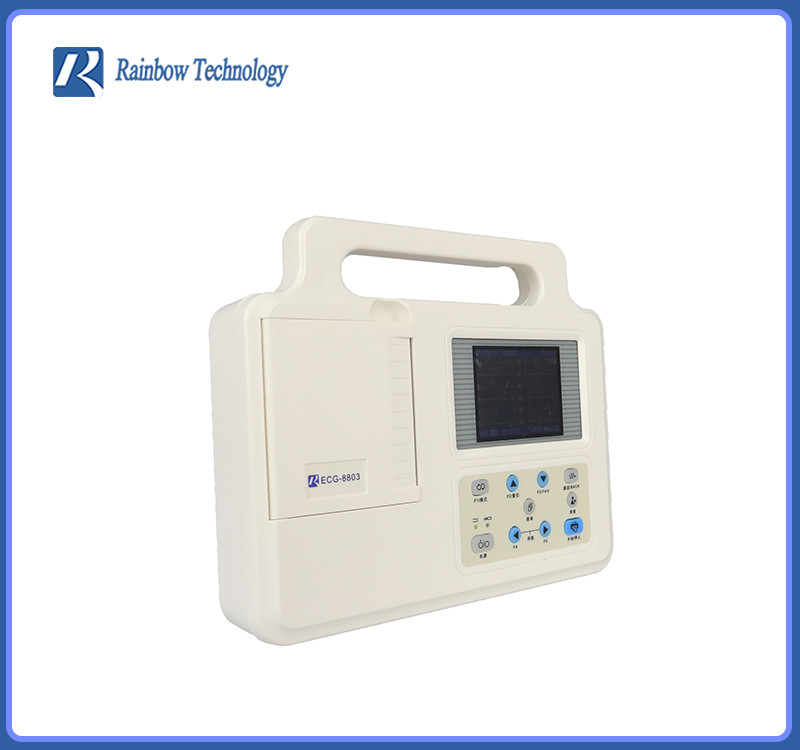

Shape of ECG Machine:
| Brand: | Rainbow |
| Size: | 3.5 inch |
| Model: | ECG-8803 |
| manufacturer: | Hunan Rainbow Technology Co., Ltd |
Function Features of ECG Machine
| Full screen display of 12 channel ECG waveforms |
| Digital single channel automatic measurement, analysis and diagnosis with report printing |
| 3.5 inch wide-screen |
| Multiple operation modes: manual, automatic, rhythm, physical examination |
| Light-weight,exquisite and easy to carry |
| No need to install. Best choice for first aid and shift |
| Standard configuration: |
| ECG8803 Electrocardiograph mainframe |
| ECG suction bulb – one pair |
| 12-channel ECG lead |
| AC adaptor |
| Grounding wire |
| Body/limb clamp – one set |
| Power line |
| Thermal print paper- two rolls |
| Print paper scroll |
| Operation manual |
| Parameters of ECG Machine |
| Operation mode:Manual/Auto/storage |
| Standard 12 leads:real-time ECG waveforms |
| Measure mode:Simultaneously acquisition of 12 lead, |
| Measure frequency:12Bit/1000Hz(1ms) |
| AC filter:50Hz/60Hz |
| EMG filter:25Hz/45Hz |
| Drift filter:Auto adaption |
| CMRR:≥95dB |
| Input circuit:Floating with defibrillation protection |
| Frequent response:0.05-160Hz(-3db) |
| Sensitivity:Auto/2.5/5/10/20/40(mm/mv) |
| Printing:High resolution thermal printer |
| Communication interface:Standard USB/RS232 |
| Safety standard:IEC I CF(GB9706.1-2007) |
| Keypad panel:can input clinic information such as patient names |
| Display:320*240 Graphical LCD |
|
