Vandalproof SAW Touch Monitor , 15 Inch Open Frame LCD Monitor

Categories SAW Touch Monitor
Brand Name: CJTOUCH
Model Number: COT150E-AWF02
Certification: FCC /CE
Place of Origin: Dongguan China
MOQ: 1 pcs
Price: negotiable
Payment Terms: L/C, D/A, D/P, T/T,
Supply Ability: 10000(pcs )per quarter
Delivery Time: 2-3 days
Packaging Details: Carton package
Touch type: SAW(Surface acoustic wave) Panel monitor
Size: 15inch
Warranty: 1 year
Application: Gaming ,retail ,kiosk,health ,care,pos
Resolution: 1024(RGB)×768, XGA
View angle: 89/89/89/89 (Typ.)
Touch point: 1 point
Interface: VGA/DVI/USB/RS232/DC12V
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Vandalproof SAW Touch Monitor , 15 Inch Open Frame LCD Monitor

Vandalproof 15 inch SAW touchscreen monitor Openframe SAW touchscreen LCD monitor display

  • This monitor will come with 4mm/6mm Industrial touch screen,
  • Waterproof, dust-proof, Anti-glare, Anti-vandal are optional.
  • Multiple mounting options including rear Mount and VESA mounting
  • Can do USB and RS232 touch interface, DVI, HD-MI, VGA video input optional

Technology:
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most
cutting-edge solutions in the industry.
* Sur-face Acoustic Wave (SAW) touch technology
* Infrared touch technology
* Projected Infrared Touch technology

What We Offer:

Quality: We have a strict quality control system. All products ordered from our factory are inspected by a professional quality control team.
After-sales service: We provide after-sales service team, all problems and questions will be resolved by our after-sales service team.
MOQ: We accept small orders and mixed orders. According to our customers' requirements, as a dynamic
team, we want to connect with all our customers.
Experience: As a dynamic team, through our more than 10 years of experience in this market, we are still continuing to research and learn more knowledge from customers, hoping that we can become the largest and professional supplier in China in this market Business one.
OEM: Accept ODM/OEM.
Samples: We provide of this product from our source.
Production time: within 7 working days after confirming the order.


Specification :

ModelCOT150E-AWF02
SeriesDustproof
Monitor DimensionsWidth: 346mm Height: 270mm Depth: 49mm
Weight(N.W/G.W)6Kg / 9Kg (Approx.)
LCD Type15"SXGA Color TFT-LCD (Panel Model :G150EG01 V0)
Video Input

Accepts RGB input directly, DVI,HDMI and Audio function can be

supported optionally

Recommend Resolution1024(RGB)×768, XGA
OSD controlsAllow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power SupplyType: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface

1)VESA 75mm and 100mm

2)Mount bracket, horizontal or vertical

Regular Warranty1 years for SAW Sensor; 3 years for controller; 1 year for LCD
Agency ApprovalFCC,CE

2.LCD specs

Active Area(mm)304.128 × 228.096
Resolution1024(RGB)×768, XGA
Dot Pitch(mm)0.099×0.297 mm
Nominal Input Voltage VDD3.3v
Viewing angle (v/h)89/89/89/89 (Typ.)
Contrast700:1 (Typ.)

Pixel Pitch(W×H)

0.297×0.297 mm
Support Color16.7M colors
Response Time8/17 (Typ.)
NOTE:The LCD Specification will change follow the relevant LCD panel brand and model

3.Touch screen

TypeCjtouch Surface Acoustic Wave(SAW)
Resolution4096*4096
Light Transmission92%
Touch Life Cycle50 millions
Touch Response time16ms
Touch System InterfaceRS-232 and USB interface
Power consumption+5V@80mA

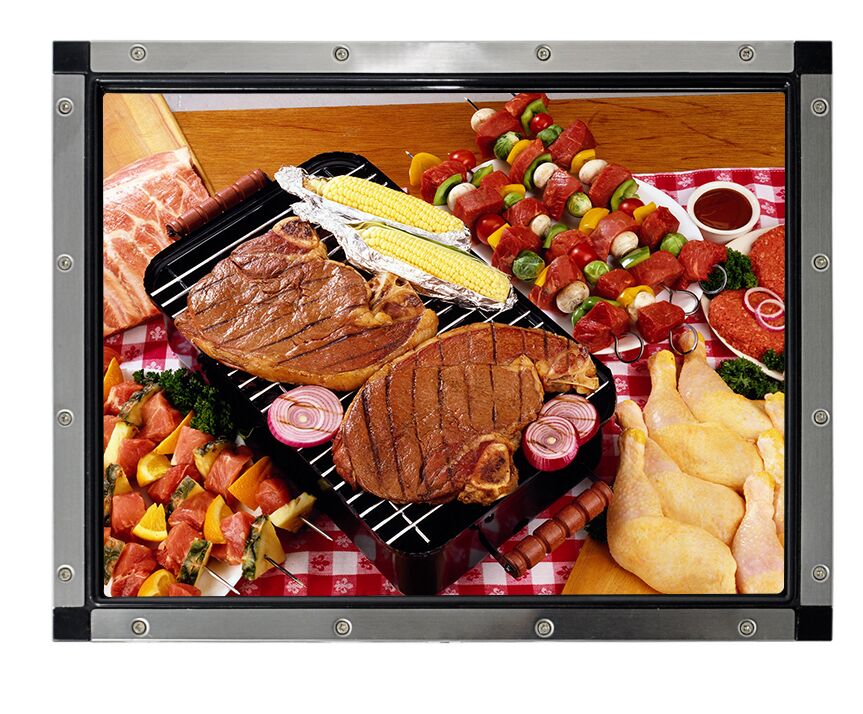

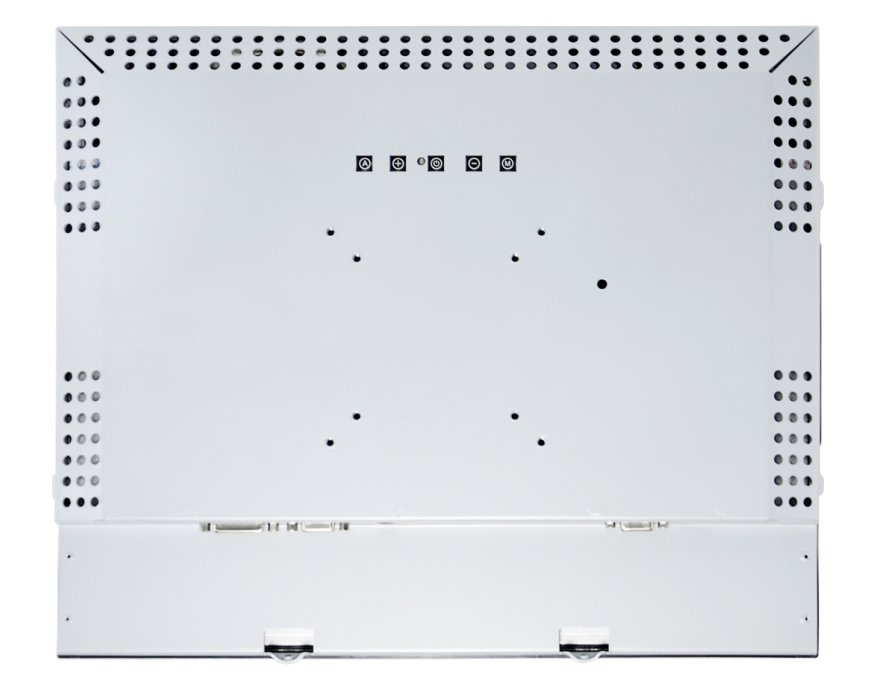

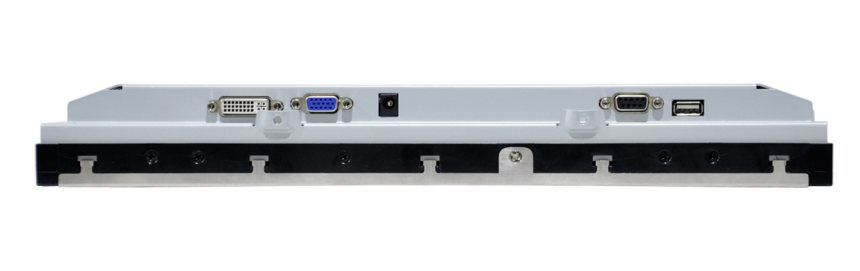

Touch monitor Pictures

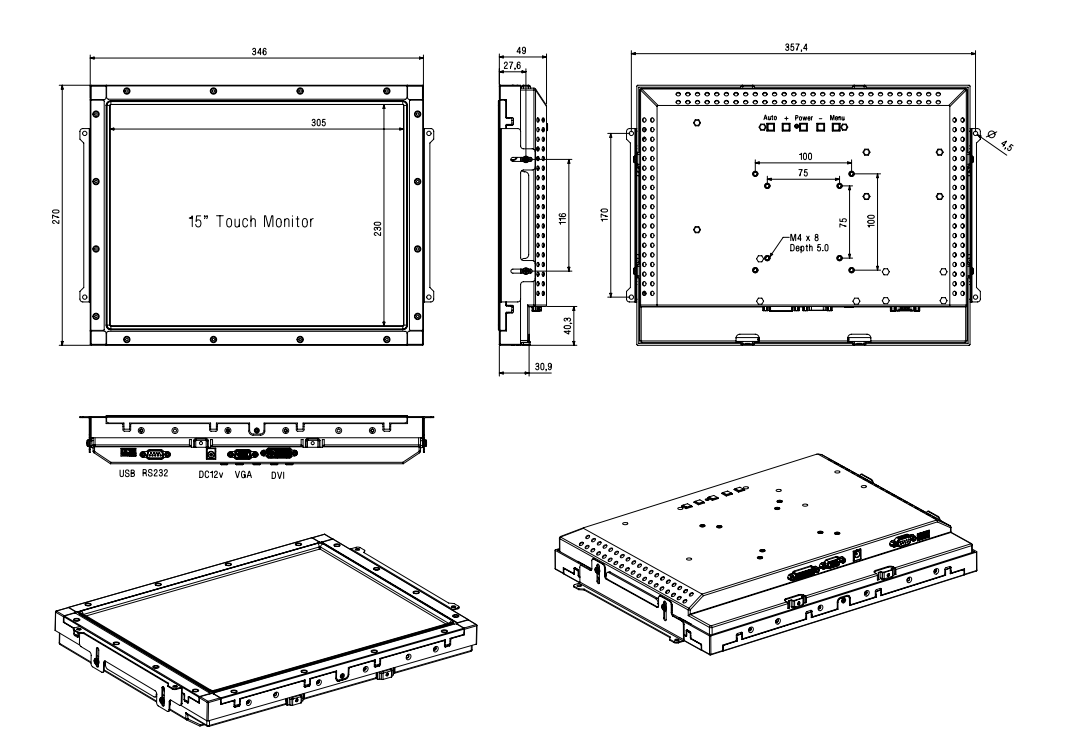

Products Drawing :
