| Categories | CNC Plasma Flame Cutting Machine |
|---|---|
| Brand Name: | yaoqiang |
| Model Number: | YQ1530/1560 |
| Place of Origin: | Jiangsu China |
| MOQ: | 1 set |
| Price: | US $1,500-5,000/ Piece |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/month |
| Delivery Time: | 10 days |
| Packaging Details: | standard packing |
| Supply Voltage: | AC220V/380V/440V |
| Cutting Thickness: | max 100 mm |
| Cutting Speed: | 50-750 mm/min |
| Dia.Of.Circle Cutting: | Max 2000 mm |
| Main Body Dimension: | 470*230*250mm |
| Rail Diamension: | 1800*200*40 mm*2 pcs optional |

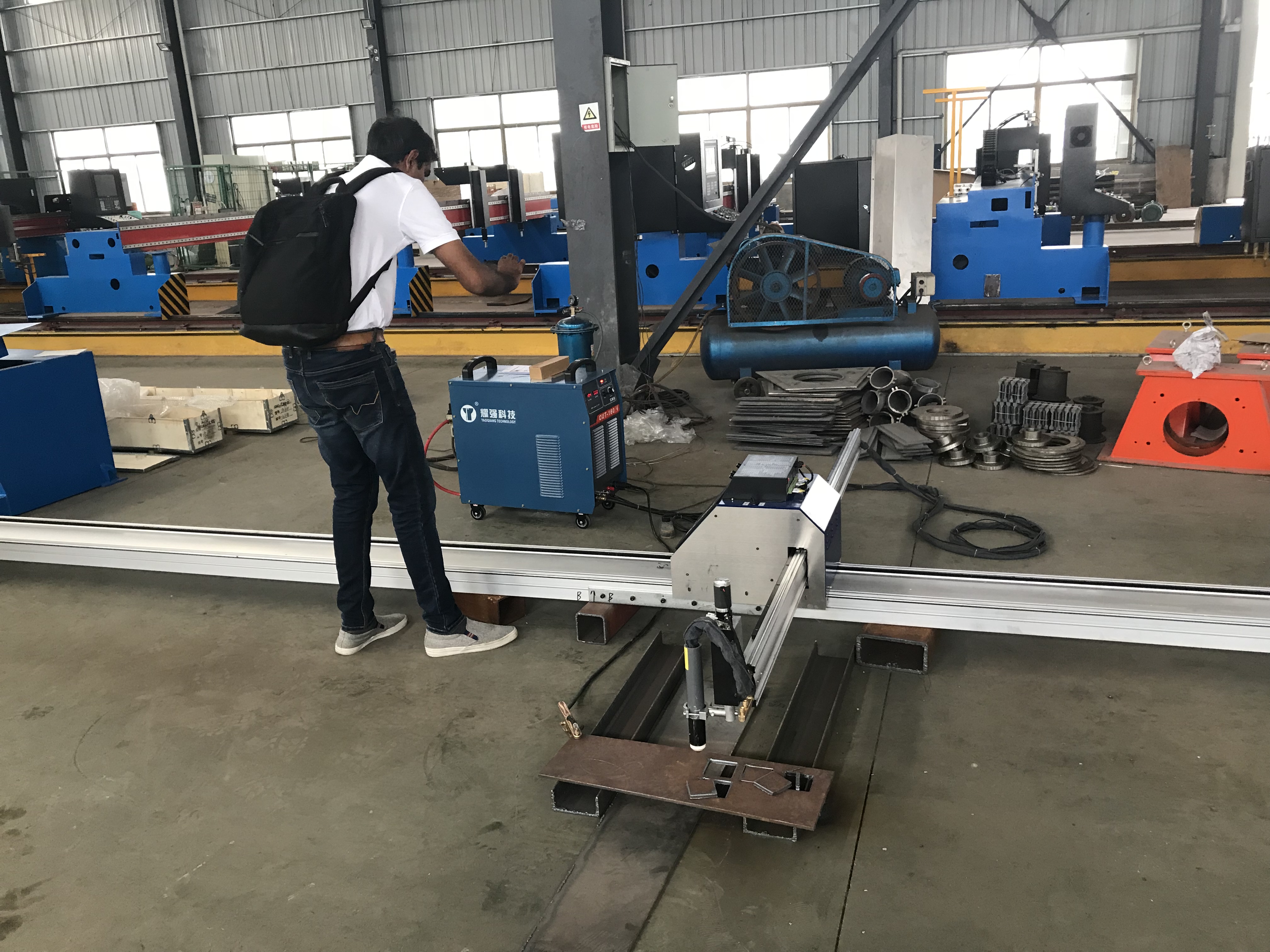

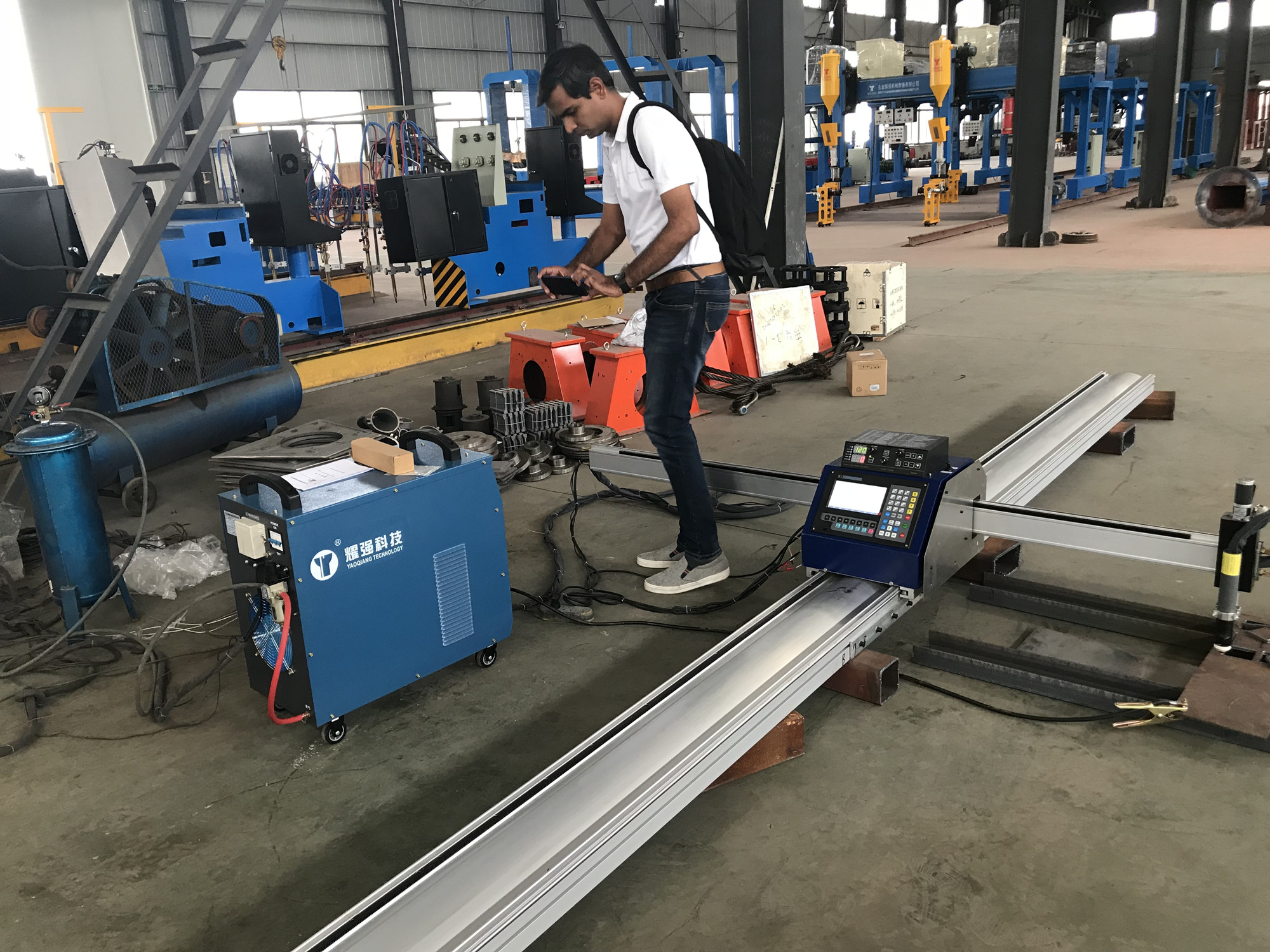

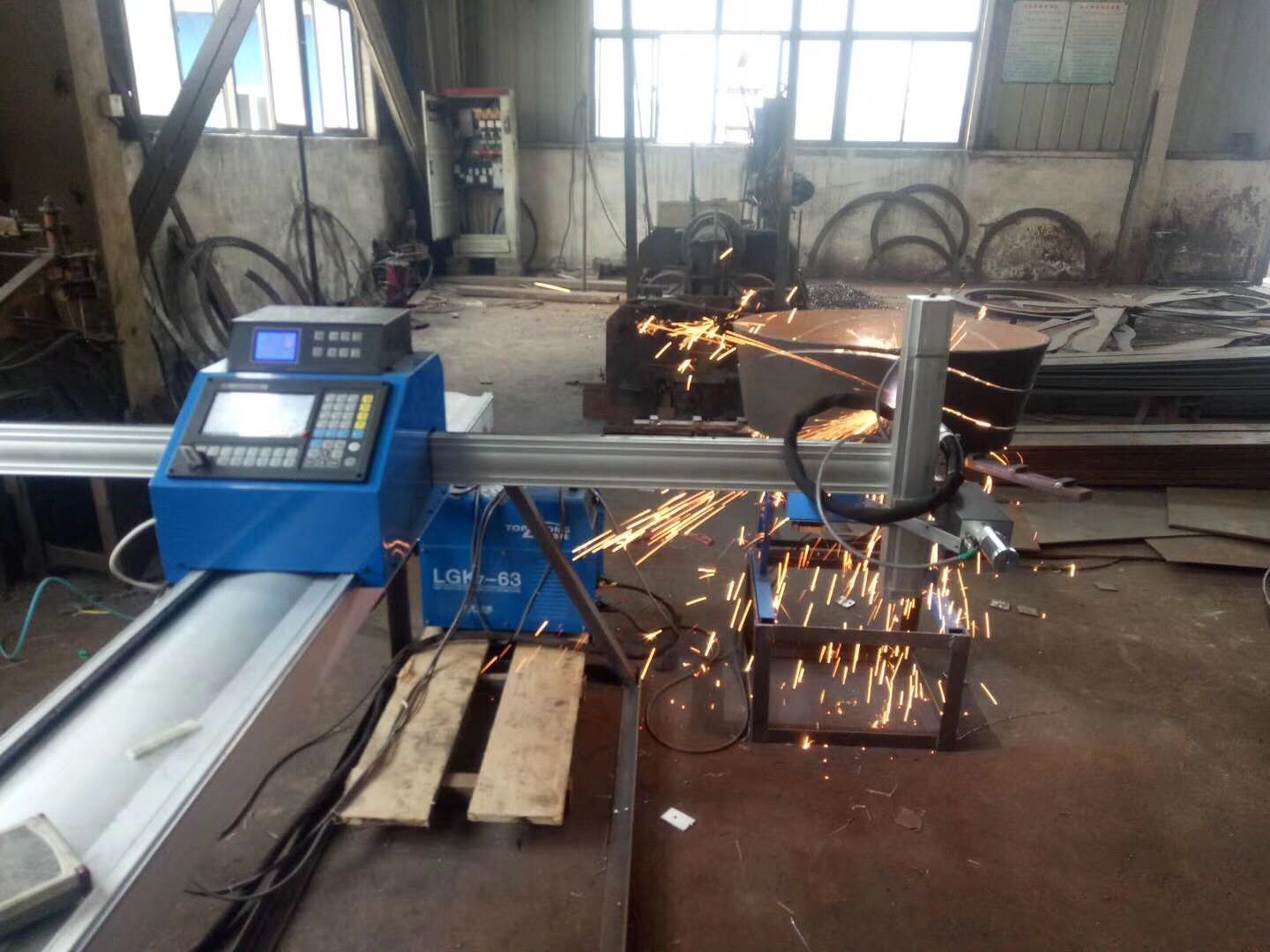

Mini Portable Semi-Automatic Straight Line Flame Gas Cutting Machine Also Circle Cutter
(1) Tailored track acquires high-intensity, high-speed and
high-precision features.
(2) Human computer interface design makes the machine easy to learn
and operate, and have complete functions.
(3) Equipped with functions of portable CNC cutting and can cut
carbon steel, stainless steel and non-ferrous metal plate.
(4) Enable the conversion of the CAD into the program file which
can be transmitted to the main machine by USB to cut plate into any shape.
(5) With two cutting modes: Flame Cutting & Plasma Cutting.
(6) Chinese, English, French, and Portuguese are ready to use.
(7) Can automatically memorize and restore when power is off.
(8) Plasma THC ( torch height control) device function: By
automatically adjust the height of the torches
according to the feedback of the plate height changes, THC can keep
good effect of cutting meanwhile,
protect the torch form damage and prolong life span of the nozzles.
(9) With status indication device.
(10) With positioning functions of protection cover, proximity
switch and dual-speed.
(11) Compatibility of the domestic plasma and foreign-brand plasma.
1,Device Configuration
| No., | Item | Quantity | Unit | Remark |
| 1 | Host models YQ1560 | 1 | set | Yaoqiang Co., |
| 2 | Machine horizontal distance | 2000 | mm | Effective cutting width 1500 mm |
| 3 | Rail length | 6500 | mm | Effective cutting length 6000mm |
| 4 | motor | 3 | set | Imported (Japan Shinano) |
| 5 | drive | 2 | set | Chinese Brand (Shenzhen Lemire) |
| 6 | NC system | 1 | set | Chinese Brand |
| 7 | Plasma Interface | 1 | set | Chinese Brand |
| 8 | Solenoid valve | 1 | set | Wuxi |
| 9 | Secondary Development Software | 1 | set | Chinese Brand |
| 10 | Automatic ignition | 1 | set | Chinese Brand |
| 11 | package | 1 | set | Self-locking boxes, environmental protection PE foam shock layer |
2,Mainly Parameters:
| No., | Item | Data | ||
| 1 | Effective cutting width (mm) | Gauge length -500 | ||
| 2 | Effective cutting length (mm) | Track -500 | ||
| 3 | Flame Cutting Thickness (mm) | Carbon: Cutting edge 5-100; piercing cutting ≤40 | ||
| 4 | Torch lifting stroke (mm) | 1-150 | ||
| 5 | Cutting speed (mm / min) | 50-3500mm/min | ||
| 6 | Setting speed error (%) | ≤±5% | ||
| 7 | Auto-precision (mm) | ≤±0.5mm | ||
| 8 | Longitudinal linear precision | ±0.5mm/2.5m | ||
| 9 | Linear Repeatability | ±0.5mm/2.5m | ||
| 10 | Integrated precision machine | (Integrated Graphics with the right date) side (four sides 200*200) Scribing speed 500-800mm / min | ||
| 11 | Focus shift | 0.5mm | ||
| 12 | Straightness | 0.3mm | A) equipment, machine positioning accuracy, repeatability: in line
with JB / T5102-1999 standard B) Cut to size precision, cut quality: in line with JB / T10045.3-1999 standard | |
| 13 | Roundness | 0.3mm | ||
| 14 | Diagonal difference | 0.5mm | ||
| 15 | Repeatability | 0.3mm | ||
| 16 | Scribing machine | ≤0.5mm | ||
| 17 | PrecisionCutting surface quality (roughness) (Optional δ = 25 sheets) | |||
3,Working Environment
| 4.1. Power | 380V±10%,50Hz(optional) |
| 4.2. Power | 0.5KW |
| 4.3. Gas source | / |
| oxygen | Purity: 99.5% |
| Preheat oxygen | Pressure 0.7~0.8Mpa |
| Cutting oxygen | Pressure 1Mpa |
| Acetylene or gas | Pressure 0.04~0.06Mpa |
| 4.4. Ambient Temperature | -10ºC~45ºC |
| 4.5. Relative humidity | 90% non-condensing |
| 4.6. Installation Environment | No large impact shock within 5m |
4,Feature
Automatic cutting: Delay, preheating, perforation, radius
compensation, breakpoint recovery, continuous rollback.
Efficient cutting: production increase 6-8 times than manual
cutting.
Improve output than semi-automatic cutting car 4-6 times.
Cutting quality: machine positioning accuracy, repeatability reach
JB / T5102-1999 standard.
Cutting quality to meet JB / T10045.3-1999, JB / T10045.4-1999
standard.
5,Enclosed please find the Instructions
| ITEM | NAME | SPEC | QTY | UNIT | REMARK | |
| 1 | Wearing parts | Cutting nozzle | 0-3# | 1 | set | |
| Machine flame torch | 1# | 1 | set | |||
| 2 | Tools | Cutting nozzle needle | 1 | box | ||
| 3 | Enclosed Sheet | Product certification | 1 | pc | ||
| Product Manual | 1 | pc | ||||
| Secondary Development Software | 1 | set | ||||
| power cable | 1 | pc | ||||
| Clamps | 2 | pc |
|
