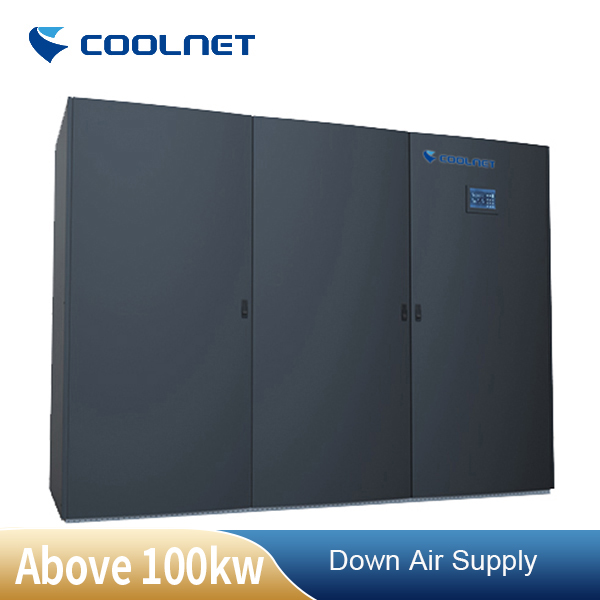

Precision Cooling Units For Switch Rooms And Mobile Computer Rooms

Precision Cooling Units Air Cooling Systems For Switch Rooms And Mobile Computer Rooms

Products Introduction Coolnet precision air conditioner is different from ordinary household air conditioner, which is dedicated to computer room equipment. Due to the equipment in switch rooms and mobile computer rooms is composed of many electronic components and generates a lot of heat during operation, precision air conditioners are required to maintain the stability of the environment. Advantages Integrated iFreecooling, saving 70% of energy consumption 365X24 uninterrupted operation guarantee Modular design concept Matching multiple air supply modes on-site with upper air supply, lower air supply, EC fan sinking air supplyØ Inverter series air-cooled energy-saving air conditioners, saving 40% of energy consumption Adapt to low load design

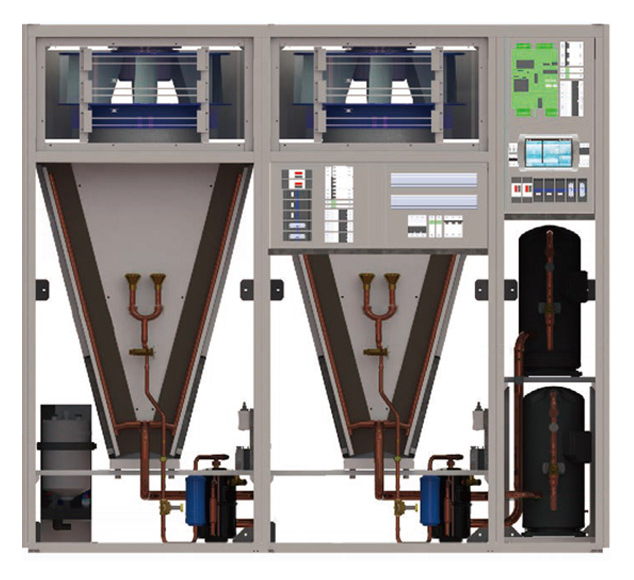

Main Components

Expansion Valve Advanced thermal expansion valve has strong reliability and stability, and can accurately control the supply of refrigerant; Advanced electronic expansion valve realizes energy saving and consumption reduction. Humidifier Advanced electrode steam humidification system, computer controlled humidification amount and water inlet and outlet; The automatic cleaning procedure of the humidification cylinder ensures the normal humidification efficiency of the slag. Scroll Compressor The fully enclosed scroll compressor ensures the high efficiency, low noise and long life of the unit.

Applications

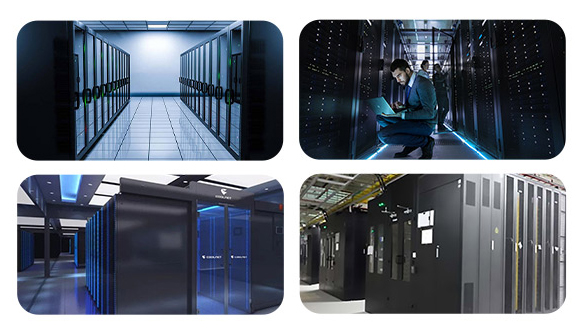

Switch room and mobile computer room Computer room and data center (IDC) High-tech environment and laboratory Industrial control room and precision processing equipment Standard testing room and calibration center UPS and battery room Biochemical culture room Hospitals and testing rooms

Technical Parameters

Model: CYA		T26D/U	T31D/U	T35D/U	T41D/U	T45D/U	T50D/U	T55D/U	T61D/U	T70D/U	T76D/U	T85D/U	T90D/U	T100D/U
Power Supply		380V 3Ph-50HZ
Air Discharge		Upflow/Downflow
Cooling Capacity :24℃/50%RH
Total Capacity (1)	KW	26.9	31.9	35.9	41.9	45.3	50.5	55.4	61.4	70.5	76.2	85.5	90.8	102
Sensible	KW	24.8	29.5	33.1	38.8	42.5	47.8	51.6	57.5	65.2	71.2	79.5	84.5	95.7
AEER	W/W	3.6	3.6	3.6	3.6	3.6	3.7	3.7	3.6	3.6	3.6	3.6	3.6	3.6
Air Flow	m3/h	8000	9500	10000	11500	13000	15500	16000	17500	18500	20500	22500	23500	24200
Compressor Hermetic scroll
Refrigerant		R407C
Compressor quantity	PC	2	2	2	2	2	2	2	2	2	2	2	2	2
Fan Section Centrifugal fan (Optional EC)
Fan quantity	PC	2	2	2	2	2	2	2	2	2	3	3	3	3
Rated current	A	4.3	4.3	4.3	4.4	4.4	4.4	5	5.2	5.2	6.5	16.5	16.5	16.5
Rated power	W	1600	1600	1800	1800	2000	2000	3000	3300	3900	3900	5400	6300	6300
Total heating capacity	KW	6	6	6	9	9	9	9	9	9	12	12	12	12
Material		PTC
Humidifier Section Electrode type
Capacity	Kg/h	5	5	5	5	13	13	13	13	13	13	13	13	13
Rated Current	A	6	6	6	6	15	15	15	15	15	15	15	15	15
Condenser Model		2*58	2*58	2*58	2*58	2*80	2*80	2*100	2*100	2*120	2*150	2*150	2*165	2*180

Certificates

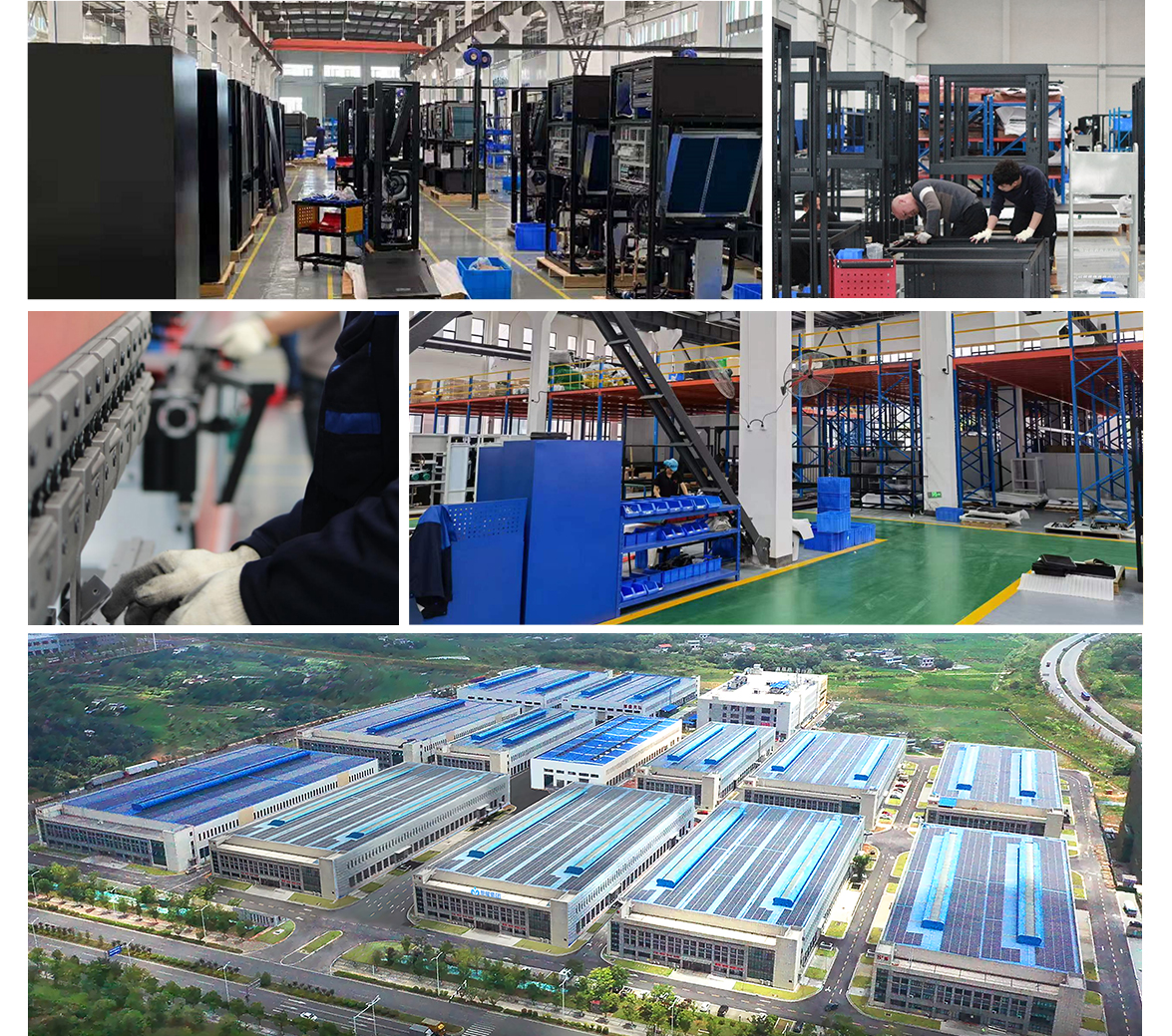

Factory Details

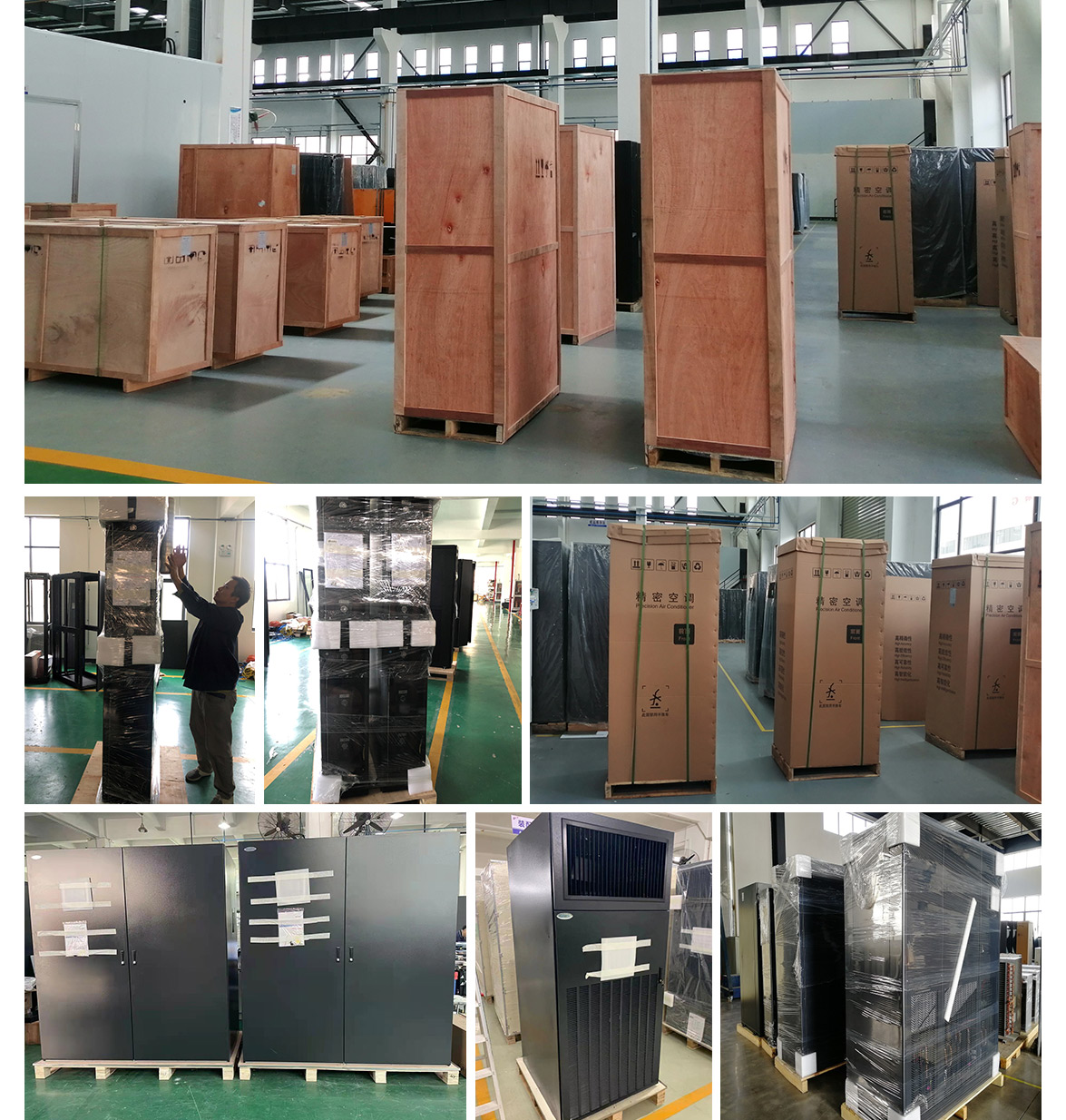

Packing & Delivery

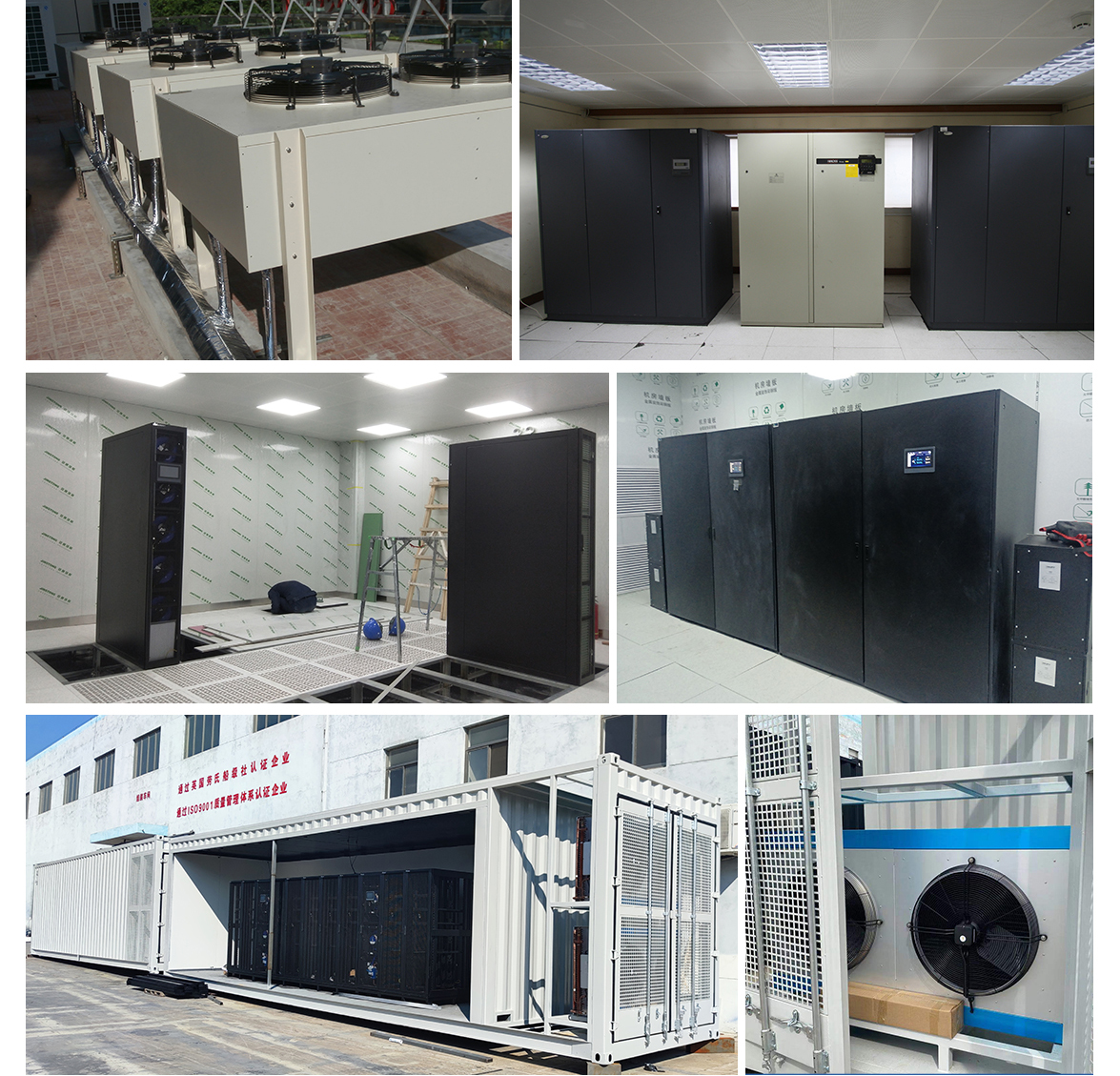

Case

Coolnet focuses on the R&D, production and application of data center integrated solutions. It is a service provider in the field of information infrastructure construction, with technology, products and solutions, and is committed to providing customers with products and overall solutions in the fields of communication rooms, data centers, smart city construction and energy management.

Our solutions include data center temperature, humidity and energy-saving solutions, small and medium-sized computer room temperature control solutions, modular data center solutions, micro-module cabinet solutions, container data center solutions, communication outdoor cabinet temperature control and energy saving Solutions, cabinet temperature and humidity, and energy-saving solutions.

We have rich research and manufacturing experience in the field of data center equipment, with world-class laboratories, production testing equipment and a complete line of key equipment rooms. And passed the ISO9001 quality management system certification, ISO14001 environmental management system certification, and the products have passed CE certification, CCC certification, CQC certification, CRAA quality certification, etc.

We are committed to "pay attention to customer needs and realize customer value" and establish a win-win cooperation pattern with customers. To become your most trustworthy, most grateful, most professional, most practical, and most reliable partner with the best vision. We will "make every effort to provide value-for-money products and services to make customers more competitive", and continue to explore and innovate.
