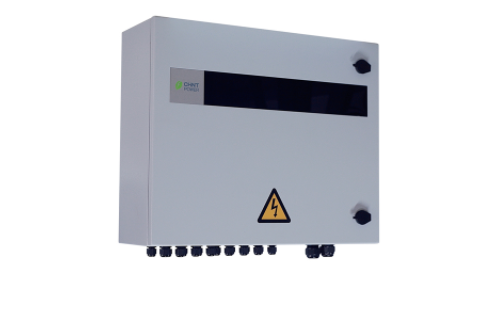

CPS Array Combiner Box DC Combination IP65 CGC/GF002 2010

CPS Combiner Box DC Combination Equipment High Voltage Products CGC/GF002:2010

For medium and large PV systems, DC combination equipment is essential and can be used to simplify the cable connection between PV panels and inverters in order to raise the reliability of the PV system and make the maintenance of system more convenient. CPS PV combiner box provides customers with a safe, concise and also economic PV system product in standard industrial design according to the CGC/GF002:2010 national regulations of PV combiner box’s technical specifications. Users may put the PV panels with the same type together in series as PV arrays within the allowable DC voltage range for the inverter and then connect several arrays to the combiner box for DC convergence. Before inputting DC to the inverter, the surge protector and breaker in the combiner box ensures the safety of PV system.

PV specialized HV lightning surge protector is selected

PV specialized DC circuit breaker is selected

PV specialized DC fuse protector is selected

Reverse charging-proof diode is selected to prevent reverse polarity connection

IP65 protection level (water-proof, dust-proof, rust-proof and sun-proof)

Strict high/low temperature test, suitable for a wide range of regions

Optimized system routing and simple installation

8 and 16 strings of DC input are 2 standard configuration and customization is available Applicable for single crystal silicon and film PV modules; Modification of DC fuse protector is available

High DC input voltage reaches up to 1000Vdc
