Brand Name: | HANJIU |
Model Number: | ZT20 |
Certification: | CE |
Place of Origin: | CHINA |
MOQ: | 100 Sets |
Price: | Contact the seller to get a quote |
Payment Terms: | L/C, T/T, Western Union, Western Union |
Supply Ability: | 300000 sets per year |
Delivery Time: | 15 - 45 work days |
Packaging Details: | Carton, Box, Pallets |
Item: | Hydraulic valves |
Model: | ZT20 |
Apply to: | forklift, environment vehicle and light loading machines |
Spool: | 5 |
MAax operation pressure: | 350 bar |
Nominal flow: | 90 LPM |
Company Info. |
Shijiazhuang Hanjiu Technology Co.,Ltd |
Verified Supplier |
View Contact Details |
Product List |

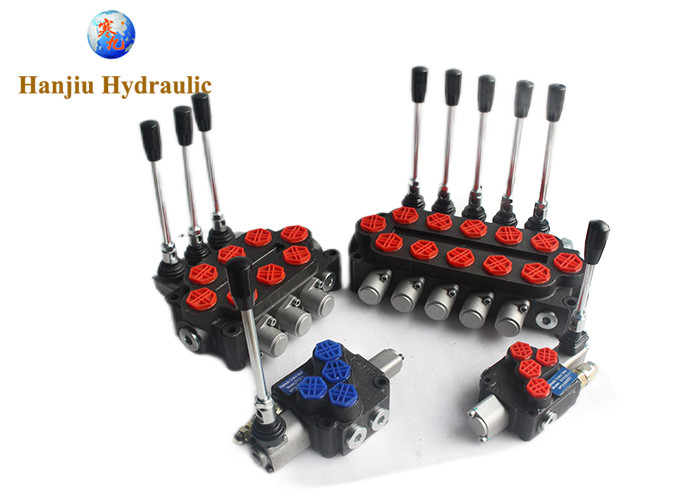

Forklift Monoblock Control Valve ZT20 with Parallel circuit, 1-5 spool
Model ZT-L20 with middle-high pressure monoblock construction is an independently developed control valves by our company.
Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.
. Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
. Oil way: Parallel circuit,power beyond option
. Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
. Valve construction: monoblock construction, 1-5 levers.
. Spool Function: 0,Y, P,A.
. Option:Hydraulic lock is available to be added on A and B port.
. The valve is widely used in the hydraulic system of forklift, environment vehicle and light loading machines.
Specifications | ||||||
Nominal | Max. pressure (Mpa) | Nom. flow (L/min) | Allowable | Hydraulic Oil | ||
Pressure (Mpa) | Back, pressure (Mpa ) | Tem.range | Visc.range (mm2/s ) | Filtrating accuracy (卩m) | ||
(°c) | ||||||
20 | 31.5 | 90 | W1 | -20〜+80 | 10-400 | W10 |
![]() |
