| Categories | Cold Welding Machine |
|---|---|
| Brand Name: | GENWELD |
| Model Number: | LW-J750 |
| Certification: | CE |
| Place of Origin: | Chongqing |
| MOQ: | 2 sets |
| Payment Terms: | T/T |
| Supply Ability: | 100 Sets Per Month |
| Delivery Time: | 15 work days |
| Packaging Details: | Packing with foam & carton, Packing size:600*400*620mm, One set/ carton |
| Appearance size: | 500*300*520mm |
| Net weight: | 35kg |
| Input power: | 3-phase/380V/50-60Hz |
| Max instantaneous output power: | >150kW |
| Wire code: | 0.2-5.0mm |
| Power consumption: | 10-7500W |
| Protection level: | IP21S |

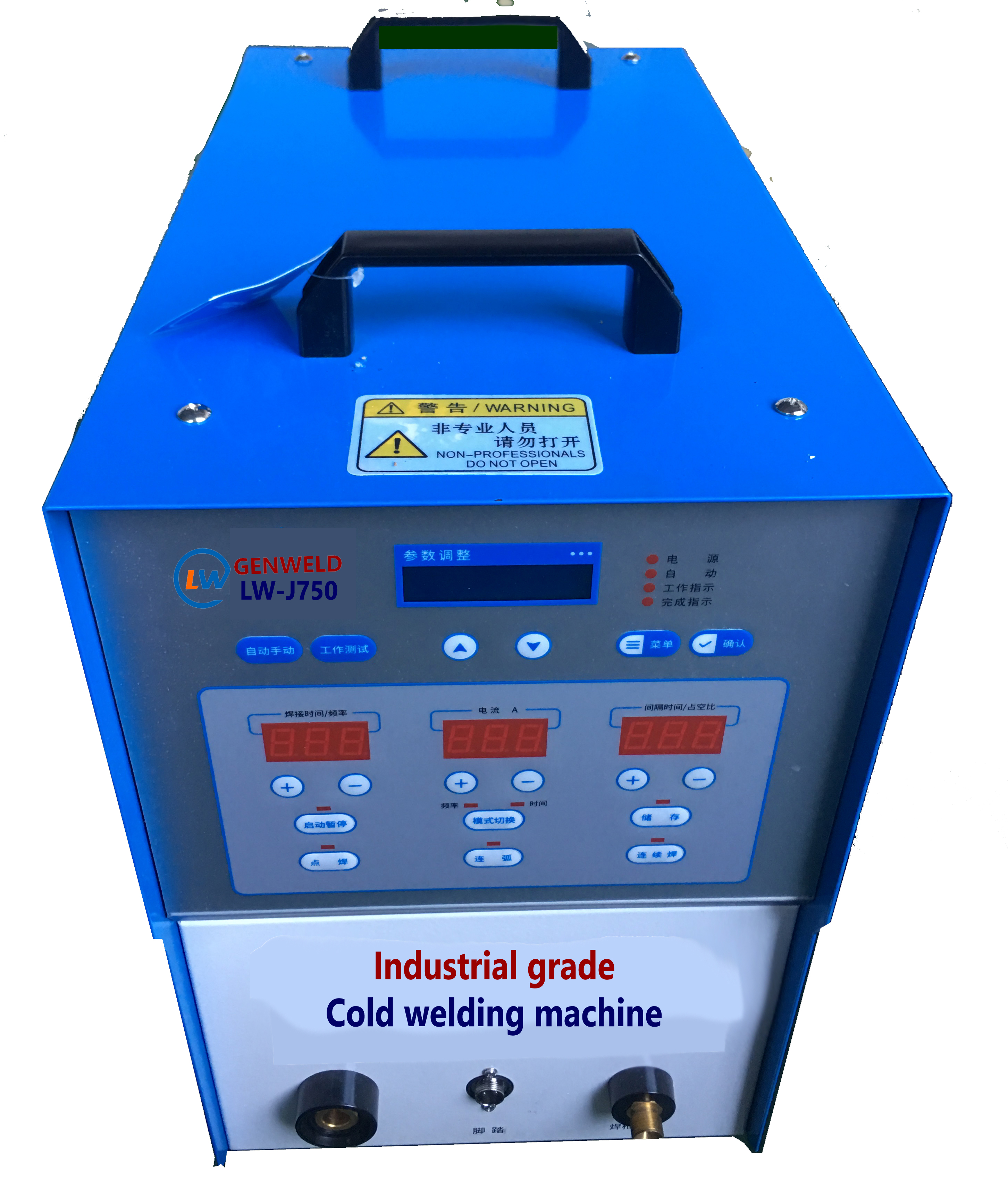

Working principle of LW-J750 Industrial Cold Welding Machine
Using capacitor energy storage, the electrical energy stored in the
capacitor is instantly released between the tungsten electrode and
the workpiece in the form of a pulsed arc. The instantaneous and
precise concentrated current generated by the high-frequency arc
discharge makes the temperature after welding less than the
workpiece emission Temperature, so as to achieve the cold welding
effect.
The difference between it and a traditional cold welding machine?
Intelligent automation, 20 sets of parameter storage function,
welding height tracking system, inner hole pile welding do not need
manual, high power and high efficiency, fatigue resistance.
LW-J750 Industrial Intelligent Cold Welding Machine Application:
1. Automatic sheet metal welding: automatic arc welding, straight
seam welding, welding of special-shaped parts.
Welding materials:Stainless steel, galvanized, cold rolled, iron,
steel, aluminum, copper, titanium, etc.
2. Automatic cold welding & cladding: repair of outer diameter of
shafts, surfacing welding of inner hole of bearing seat, roller
cladding welding.
Welding materials:High-chrome cast iron, cast iron, cast steel, stainless steel
castings, alloy steel, mold steel, 45 # steel, etc.
3. Overlay welding wear-resistant layer: large area repair welding;
welding of structural parts with pressure / flaw detection /
sealing requirements.
LW-J750 can be used with wire feeders, robotic arms, and automated
tooling
LW-J750 Industrial Intelligent Cold Welding Machine Parameters:
| Equipment model | LW-J 750 | Product size | 500×300×520mm |
| Product weight | 35KG | Input power | Three-phase, 380V-50/60HZ |
| Power consumption | 10-7500W | Instsient max. output power | More than 150KW |
| Wire code | 0.2-5.0mm | Output current range | 10-310A |
| Pulse speed | Adjustable | Mode selection | Single-point / continuous / arc welding |
| Aron gas delay time | 9S | Welding height | Any |
| Protection level | IP21S | Cooling mode | The fan enforces air cooling |
Main Components & Origin of LW-J750 Industrial Intelligent Cold
Welding Machine:
| Name | Brand | Origin |
| Mos tube | IXYS | Germany |
| Refer tube | ST | Italy |
| The rectifier bridge | ON | America |
| The rectifier diode | ON | America |
| Module (Custom) | ON | America |
| Magnetic core | TDK | Japan |
| Capacitive (custom) | Black King Kong | Japan |
| Panel Capaciance (custom-made) | Red gem | Japan |
| Power filter | Moore | Germany |
| resistor | KOA | Japan |
| The inductor | Siemens | Germany |
|
