R14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power Socket

R14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power Socket

Specification of Panel Mount AC Power Socket

Product Name: Panel mount 250V AC power socket
Rated current,voltage: 10A 250V AC

Temperature: -25~85℃

Insert and Extract Force: 5-30N

Life: ≥ 10 million

Connection: Set Screw, Solder Free

Connector Type: C14; Terminal Number: 3

Contact Material: Copper, Pin Orientation: Vertical

Power input and output connection for all types of electrical equipment.

Features of Screw Secure AC Power Socket

1.small size suitable for high density mounting.

2.Much thinner and lighter than conventional products.

3.Contact sealed construction offers a highly reliable switch.

Applications of 3 PIN IEC AC Power Socket

1 automotive and appliance markets,

2 industrial process controls,

3 instrumentation,

4 electronic test equipment,

5 consumer grade products,

6 telecommunications.

Some Specific Areas Applications of Electrical AC Power Socket

· Garage door openers

· Automotive alarm systems

· Pagers

· Remote controls

· Joy sticks

· Radar detectors

· Cellular & PCS phones

· Digital phones

· Compact disc players

· Printers

Description of C14 AC Power Socket

Power outlet allow electric equipment to be connected to the primary alternating current (AC) power supply in buildings and at other sites. Electrical plugs and sockets differ from one another in voltage and current rating, shape, size, and connector type. Different systems of plugs and sockets have been standardized, and different standards are used in different parts of the world.

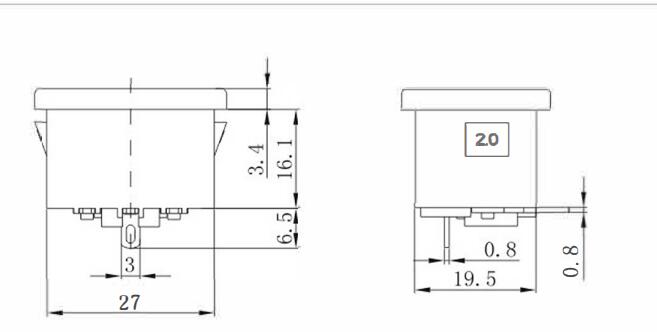

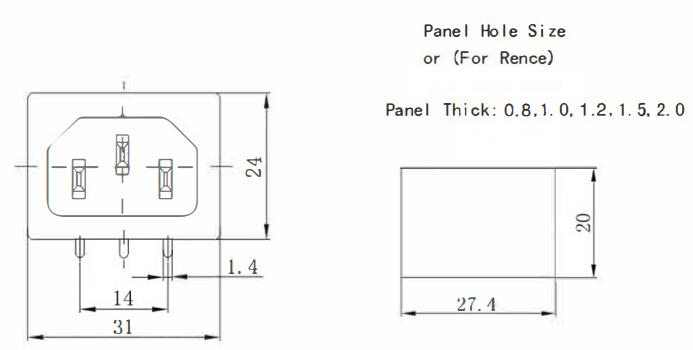

Drawing of Copper AC Power Socket
