Brand Name: | SUNTEX |
Model Number: | GF430P-PU21D-2009 |
Place of Origin: | China |
MOQ: | 20 rolls |
Payment Terms: | T/T; L/C, Paypal... |
Supply Ability: | 500000sqm/month |
Delivery Time: | 5-20 days |
Packaging Details: | Each roll in carton, several cartons in a pallet |
Unit Weight: | 13.5 oz/sq.y |
Standard Width: | 1000mm 1550mm |
Standard Thickness: | 0.017 inch |
Colour: | Yellow/Green |
Weave: | Crowfoot |
Coating temperature resistance: | 180℃ 350℉ |
Basic fabric temperature resistance: | 550℃ 1000℉ |
Coating: | Polyurethane 2 sides |
Feature1: | Fire Resistant |
Feature2: | Waterproof |
Company Info. |
Suntex Composite Industrial Co.,Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Fire Retardant PU Coated Waterproofing Fiberglass Cloth Fire Resistant Fabric
Introduce
PU coated fabric is fiberglass cloth coated with flame retarded PU (polyurethane) on one-sided or double-sided surface.
PU coating imparts fiberglass cloth good weave setting (high stability) and water resistance properties.
Advantage
Suntex Polyurethane PU coated fiberglass cloth can withstand a continuous working temperature of 550C and a short duration working temperature of 600C.
Compared with basic woven glass fiber fabric, It has many good features such as good air gas sealing, fire resistant, abrasion resistance, oils, solvents resistance chemical resistant ability, no skin irritation, halogen free.
Fiberglass Fabric Data
Total weight | 13.5 oz/y2 |
Standard Thickness | 0.017 inch |
Standard width | 1000mm 1550mm |
Coating | Polyurethane |
Colour of coating | Yellow/Green |
Fire resistance | Excellence |
Coating temperature resistance | PU coating 180 ℃ |
Basic fabric working temperature | Basic fabric 550 ℃ |
Pattern | Crowfoot |
Fiberglass | E-Glass |
Fiberglass Fabric Applications
Can be used in fire and smoke applications, such as welding blanket,
fire blanket, fire curtain, fabric air distribution ducts, fabric duct connector,
thermal insulation cover, blanket, jacket, pad, mattress.

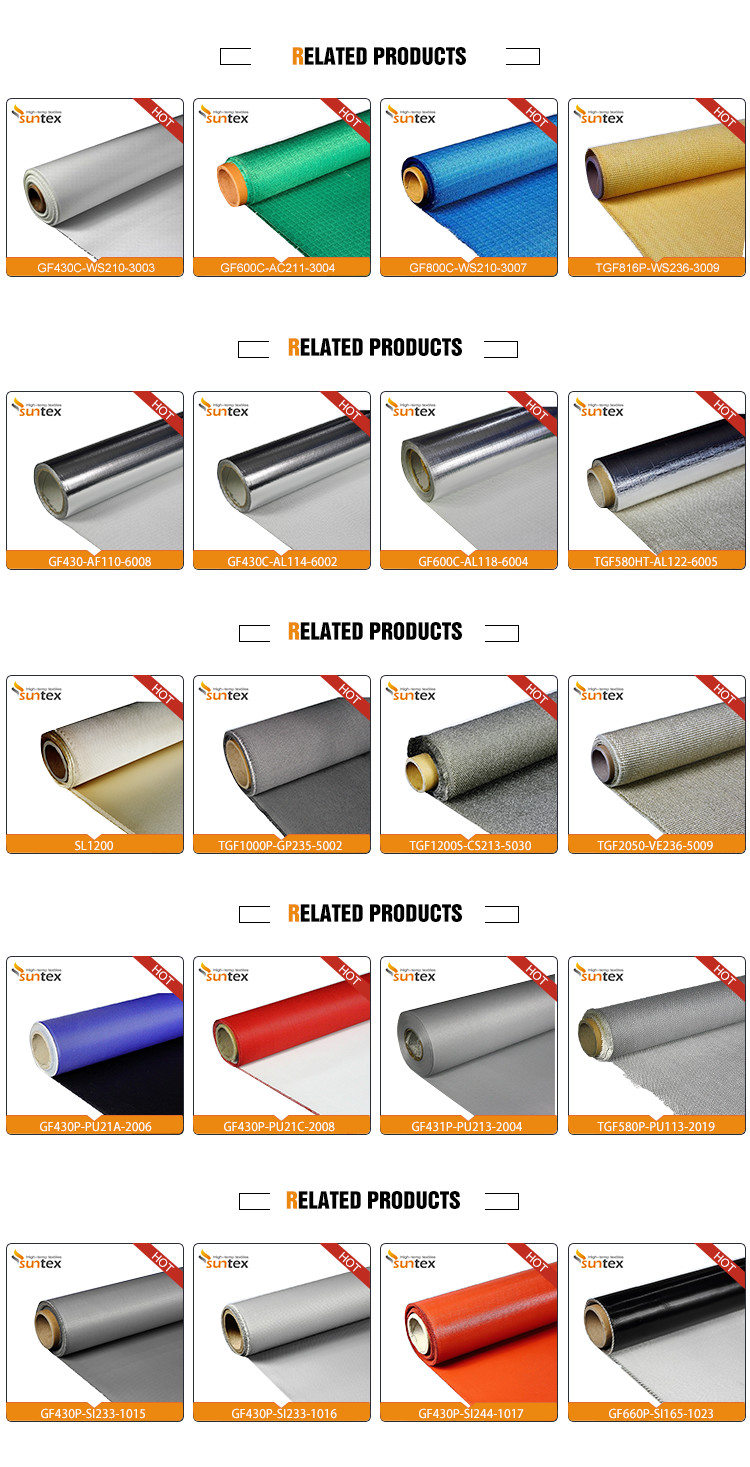

Related Products
Style No. | Weight | Thickness | Color | Coating | ||
g/m2 | oz/yd2 | mm | inch | |||
GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
![]() |
