90kw 120hp Solar Well Pump Controller

Categories Solar Water Pump Controller
Brand Name: VEIKONG
Model Number: VFD500-PV
Certification: CE
Place of Origin: China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15000pcs per Month
Delivery Time: depend on the order quantity
Packaging Details: the power less than 45kw use Carton, starting from 45kw use Wooden case
Product Name: 90kw solar water pump controller
Power: 90Kw/120hp
OEM: Accept
Warranty: 18 months
Voltage: 220v/380v
Application: Submersible pump
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

90kw 120hp Solar Well Pump Controller

Solar water pump inverter 99% mppt 45kw 55kw 75kw 90kw pump controller


Main Features: ( Power range: 0.75kw-75kw 220v, 0.75kw-710kw 380v)

1, Built-in MPPT function and efficiency up to 99.6%

2, Could drive both AM and PMSM pump

3, Advanced software technology and perfect in driving PMSM pump

4, Perfect stability in output frequency

5, Remote control and monitoring by GPRS system(Available in PC and mobile)

6, Dry run function to protect the pump

7, Automatic start and stop function

8, DC and AC as input power source accepted

9, Standard LED keypad, optional LCD keypad


Software Desgin

1. Dual Supply Mode - Solar DC and Grid AC Compatible

2. Compatible with All Pumps, IM and PMSM
3. Dry Run Function
4. Automatic Start and Stop
5. Pumps Max Current Protection Setting
6. Water Tank Level Detect Function
Hardware Design

1. Innovation Design with Dual CPU

2. Good Ventilation with Low Temperature
3. Full Fault Protection Design to Ensure no IGBT Damaged
4. Infineon IGBT Module
5. Long Term Service Life Design
6. GPRS Remote Control is Option

Electrical Specifications and Power degree
220V380V
Max input DC voltage450V810V
DC voltage range150~450VDC300~810VDC
Normal working DC voltage260V-400V400V-650V
Recommended input mppt voltage330V550V
MPPT efficiency>99%
Rated output voltage1/3-phase 220VAC3-phase 380-480VAC



Accessories:

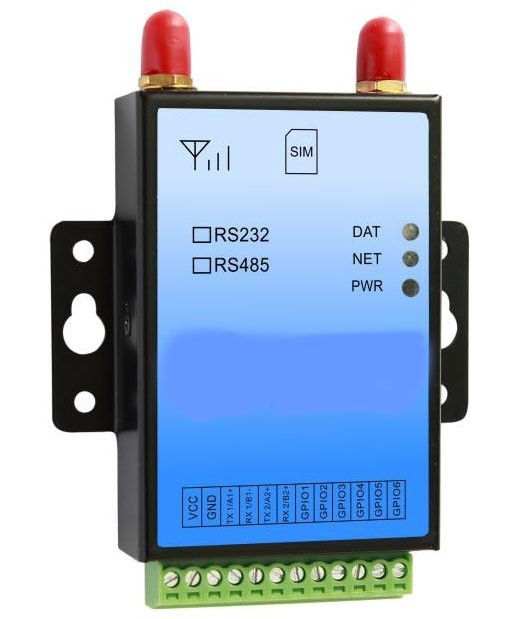

1. GPRS (support 2g/3g/4g internet)

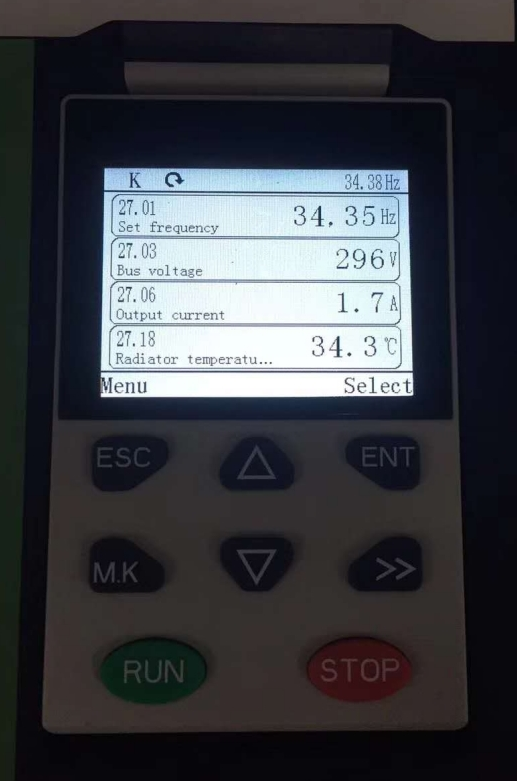

2. LCD keypad

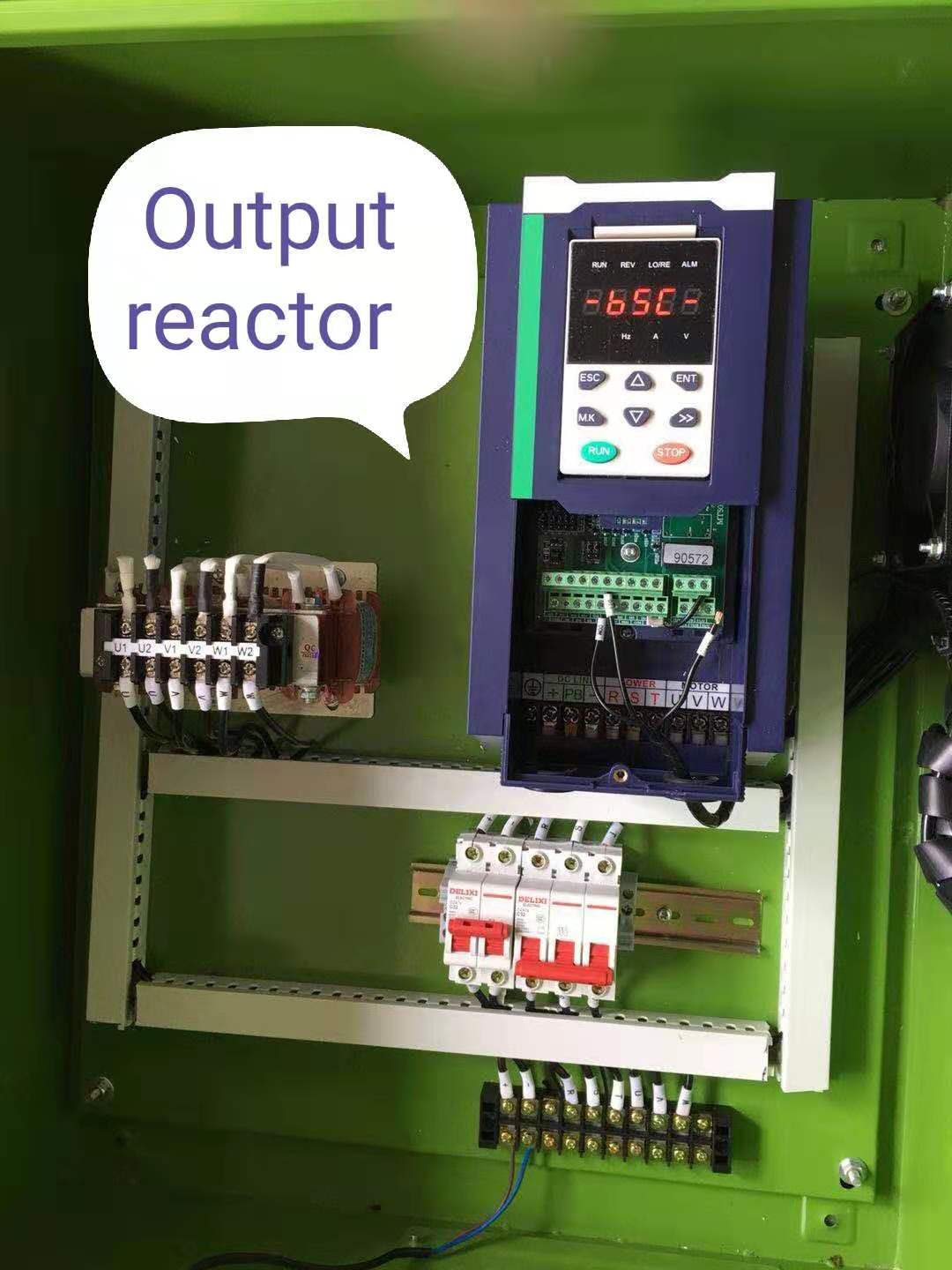

3. Output Reactor

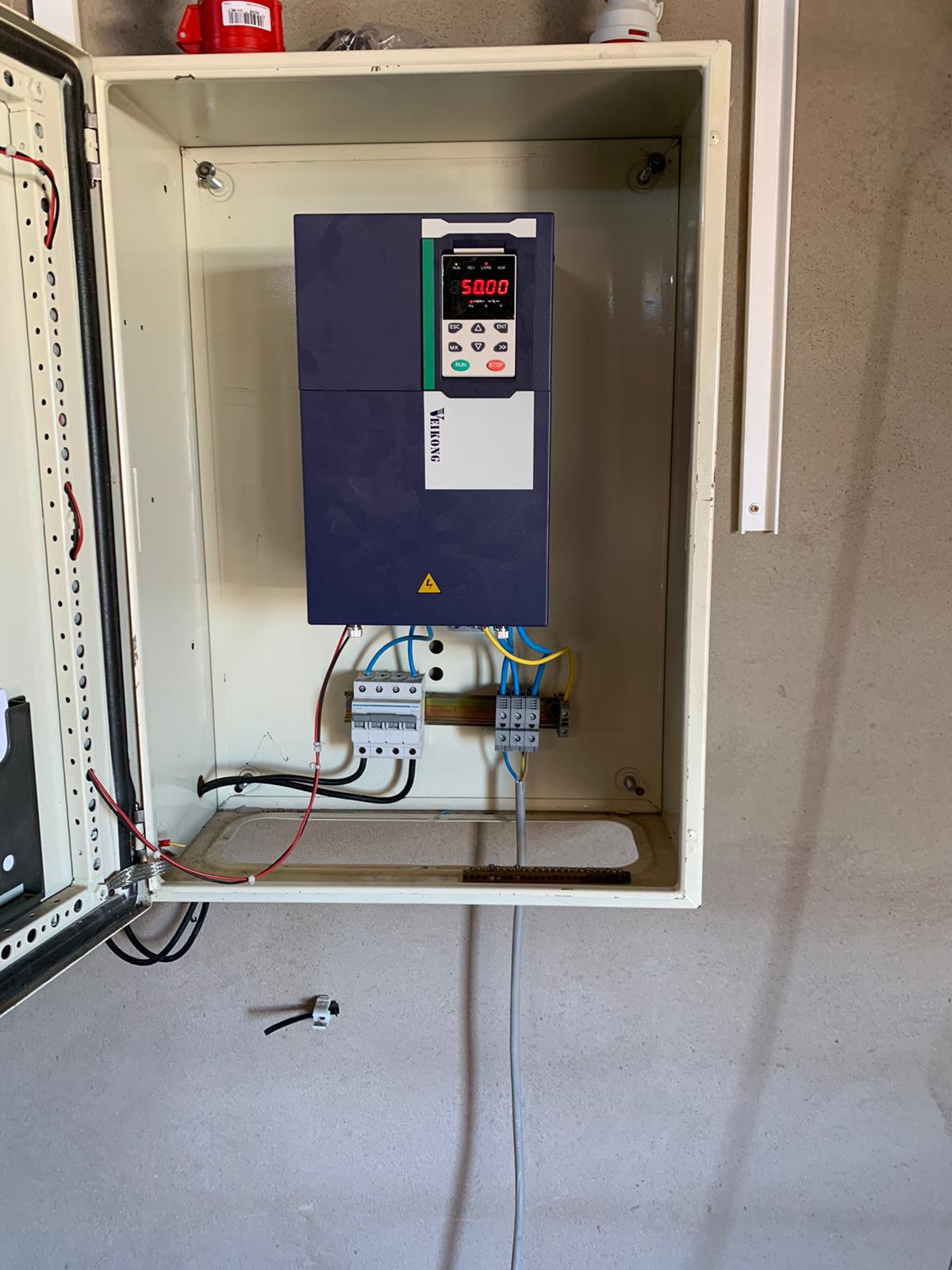

VFD500-PV solar pump inverter picture:


Mode Range


Drive modelMax DC input current (A)Rated output current (A)Applicable water pump (kW)
VFD500M-40T00150-PV93.71.5
VFD500M-40T00220-PV1252.2
VFD500M-40T00400-PV16.59.44
VFD500M-40T00550-PV23.9135.5
VFD500M-40T00750-PV30.6177.5
VFD500-40T00150-PV94.21.5
VFD500-40T00220-PV125.62.2
VFD500-40T00400-PV16.59.44
VFD500-40T00550-PV23.9135.5
VFD500-40T00750-PV30.6177.5
VFD50040T01100-PV39.22511
VFD500-40T01500-PV49.03215
VFD500-40T01850-PV503718.5
VFD500-40T02200-PV604522
VFD500-40T03000-PV816030
VFD500-40T03700-PV907537
VFD500-40T04500-PV1309045
VFD500-40T05500-PV15011255
VFD500-40T07500-PV20015275
VFD500-40T09000-PV25017690
VFD500-40T11000-PV300210110
VFD500-40T13200-PV360253132
VFD500-40T16000-PV430304160
VFD500-40T18500-PV500360185
VFD500-40T20000-PV550380200
VFD500-40T22000-PV620426220
VFD500-40T25000-PV680465250
220V single phase/three phase level
VFD500-20T00075-PV6.74.50.75
VFD500-20T00150-PV9.971.5
VFD500-20T00220-PV14.110.62.2
VFD500-20T00400-PV22.6174
VFD500-20T00550-PV30255.5

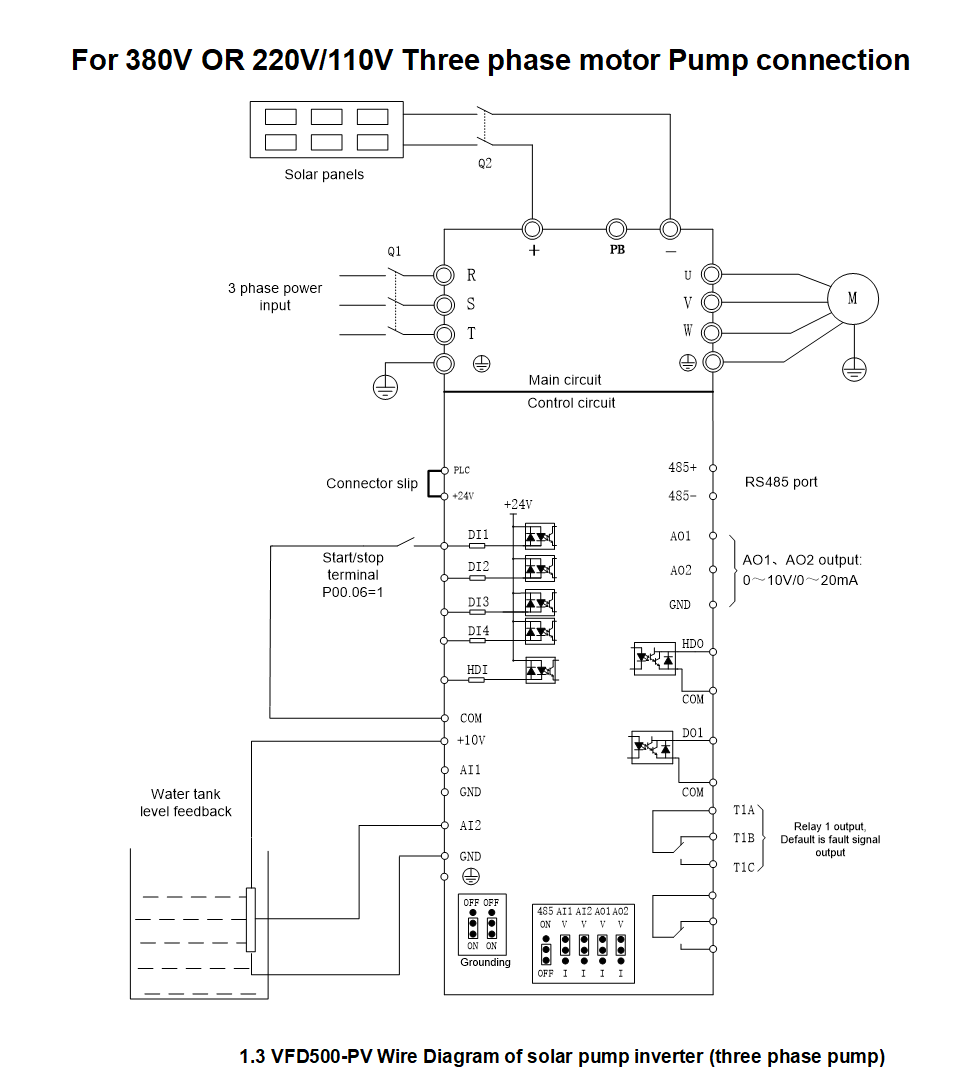

Connect wire diagram


FAQ

1. How to achieve Automatic start after stop?
If it is controlled by keyboard no need to set any parameter. If you want to control by external switch
As the default control mode is keypad control, First set P00.06=1 and use a wire or switch to connect com
and DI1,When the switch is closed, the drive run, when the switch is open, the drive stop
2. How to use a float in the water tank to stop the pump if the tank is full?
If your float signal is digital signal Use float switch to short DI 3 and com ,see diagram 1.3
3.How to set minimum frequency ( for example) 30hz and maximum 50HZ
Set P47.05=30HZ and 47.06 to some time and 47.07 to some time. Please refer to details of P47.05-47.07
4.If pump is 60HZ frequency, how to set max frequency?
Notice: If your motor rated frequency is 60HZ First solution for you, P01.06=P01.08=P11.05=60HZ.
Quick setting and easier way: you should set P00.11=02 If your motor is three phase; if your motor is single
phase with capacitor ,set P00.11=22;If your motor is single phase without capacitor ,set P00.11=32
