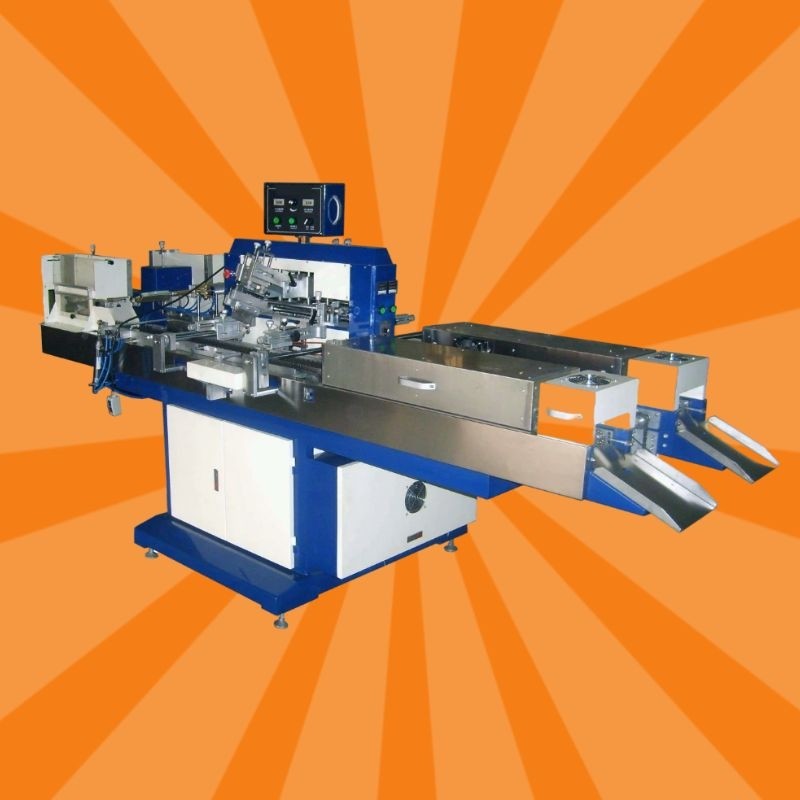

Auto Loading 7000P/H Pen Screen Printer Touch Screen Display

Automatic ball pen screen printing machine printer,7000P/H,totally automatic

HY-BG2-80

This screen printer was designed for small diameter objects such as
candle, pearl pen, pencil, mark pen, board pen, signature pen,
eyebrow pen, labium cream, Injector, chopsticks and high speed
screen printing.

Specification

1. Auto loading with loading tower. 2. Auto dust cleaning: dust
cleaned by compressed air. Can be installed with electric
precipitator with extra cost. 3. Two printing lines in one: the
machine is combined with 2 printing lines, printing at the same
time. The speed can be much faster and the cost is much lower. The
2 lines printing are controlled by 1 operator only. And the 2
printing lines can print different products or different images at
the same time. 4.Single color or multi color optional: the single
color machine can be upgraded to multi color printing by adding the
registration system. 5. PLC control, touch screen display. 6. UV
curing and IR drying: machine can be installed with UV curing or IR
drying, or with both drying so that the operator can choose any of
them. The machine can be stopped anytime to add ink or clean the
mesh, and the printed products will not be burned in the oven. 7.
Cooling system: Products are cooled down before unloading. 8. Auto
unloading with unloading slot. Unloading container attached. 9.
Machine is all electric driven except dust cleaning, no compressed
air requirement. 10.Machine built with safety cover to be CE
demand.
Parameters:
Objects diameter:φ6~φ20 mmObjects diameter:φ6~φ20 mm
Printing stroke: 20~80 mmR wattage: 1KW(up)+1KW(Down) IR Length: 800mm
Max printing speed:8000 pcs/hMax Frame dimension: 150×250mm.
Feeding Motor: 25WIR Motor: 60W
Motor wattage: 4.5kwCool Motor: 5W.
Mainly Motor: 375WNet weight: 450kg

Packing & Delivery

Product Tags:

CE Auto Loading Pen Screen Printer

7000P/H Pen Screen Printer

Pen Silk Screen Automatic Printing Machine

Auto Loading 7000P/H Pen Screen Printer Touch Screen Display

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Dongguan Hongyu Automation Technology Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Objects diameter:φ6~φ20 mm	Objects diameter:φ6~φ20 mm
Printing stroke: 20~80 mm	R wattage: 1KW(up)+1KW(Down) IR Length: 800mm
Max printing speed:8000 pcs/h	Max Frame dimension: 150×250mm.
Feeding Motor: 25W	IR Motor: 60W
Motor wattage: 4.5kw	Cool Motor: 5W.
Mainly Motor: 375W	Net weight: 450kg
