2Mpa 63MPa Anchor Bolt Pull Test Equipment 0-1000KN Smaller Size Lightweight

SY-50T/60T/80T/100T Electric Anchorage Force Tester For Rebar Or Bolt Anchoring Force

SY-50T/60T/80T/100T Electric Anchorage Force Tester

Application:

It is suitable for testing the anchorage force of several of anchor shank, rebar and expansion bolts, also the pull force of glass block screen wall.

Standard:

GB 50367-2013 Code for design of strengthening concrete structure

GB 50550-2010 Code for acceptance of construction quality of strengthening building structures

CECS 22:2005 Technical specification for ground anchors

Parameters

Features:

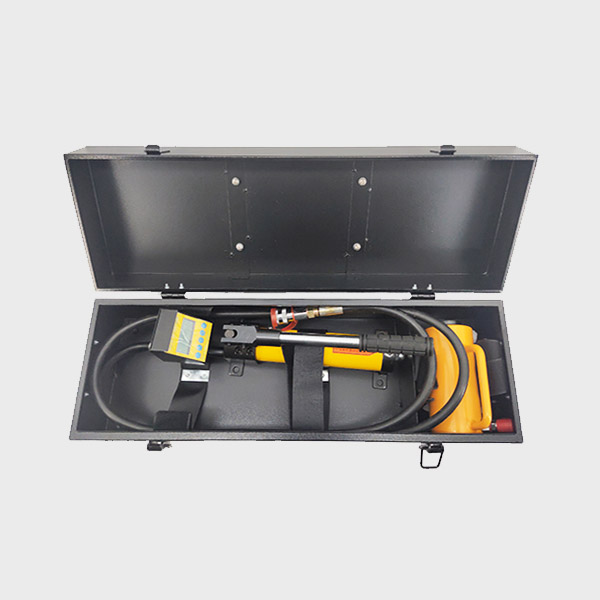

1. It consists of Manual pump, Hydraulic cylinder, Digital pressure gauge, and High-pressure rubber pipe.

2. The manual pump is of High-Low pressure dual-Radial Piston design more efficient.

3. The High precision cast steel increase its life.

4. The Hydraulic cylinder adopts hollow automatic reset design. Hydraulic cylinder has handhold which connects the high pressure pipe with the two connectors. Digital pressure gauge directly shows the tension value.

5. It is featured by compact designation, portable, smaller size, and light weight.

Beijing Samyon Instruments Co., Ltd is specializing on designing, developing and selling concrete Pile Testing Instruments and Optical fiber bragg Grating(FBG. )

1.Concrete Pile Testing Instruments includes: High strain dynamic pile tester, Pile integrity tester, Static pile loading tester, Ultrasonic crosshole pile tester, Ultrasonic drillhole monitor, Nonmetal ultrasonic detector and NDT (Non Destructive Testing) equipments, construction instruments, and laboratory instruments, such as, Concrete resistivity tester, Concrete migration tester, Concrete penetration tester, Crack width/depth meter, Rebar location system, Test hammer, Strength tester, Concrete defect tester, Corrosion tester, Colorimeter, Hardness tester, Ultrasonic flaw detector, Concrete testing equipment, Soil testing equipment, Cement testing equipment, Asphalt testing equipment, and so on . The company takes the science and technology as the guide, with strict management and strong research and development team.

    High Strain Dynamic Pile Tester (Also named PDA by PDI company. )  ;  Low Dynamic Pile Tester (PIT or PET for short); Untrasoic Crosshole Pile Tester for 2, 3 ,4 channels.; Drillhole Monitor  (Also named Koden from Japan company. )

High Strain Dynamic Pile Tester projects at field. If clients need, we also can do the testing compare with PDA from PDI company. We already have done testing at different countries. We got very good feedback from our professional pile testing clients and relative company.

Low Strain Dynamic Pile Tester at field with our software;  Static Load Pile testing at field with our software.

Drill hole monitor testing at field with 100meter depth, with automatic stop function to save untrosonic sensor drop in wells making lost for inspection company.  We also can supply drillhole monitor with 150m depth.

2. Optical Fiber Bragg Grating for temperature and Strain gauge

As FBG strain gauge and temperature sensor are popular in construction monitor system, we also concentrate in this aspects for many years. DTS. DVS system.

Our Lab for optical fiber bragg grating

Oven Humidity and temperature testing.

SAMYON will follow the operation principle to pay more attention to the needs of customers and provide the high quality, competitive products and convenient services to the market with outstanding research and development ability and the exquisite technology.
With more than 10years experiments, SAMYON commits us supply professional line instruments and service to our clients refers to Building, Bridge, Highway, Channel, Airport and so on. At present, we have many international customers from European countries, UK, USA, Thailand, India, Indonesia, South Africa, Pakistan, Singapore, Austrilia, Vietnam, Russia, Brazil, Chile, and so on.
