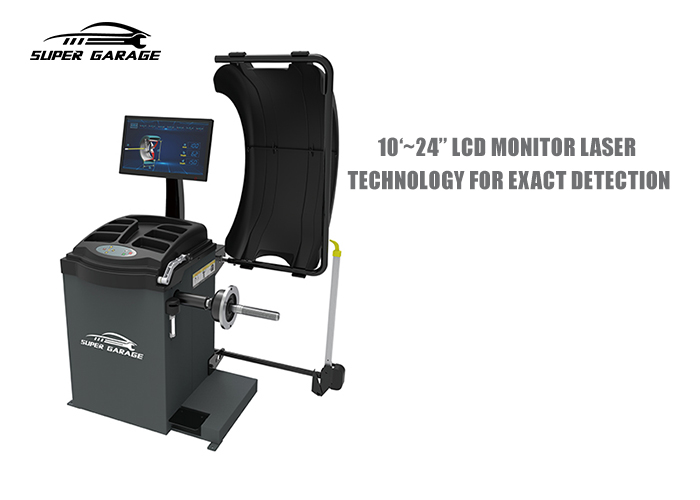

Car Wheel Balancing Machine 200RPM With LCD Display / Laser Detection

Wheel Balancer Wheel Balancing Machine With LCD Display, Laser Detection, Automatic Rim Width Measuring SG-WB228

TECHNICAL DATA

1. Max. wheel weight :65KG
2. Max wheel diameter: 1000mm
3. Rim diameter : 10" - 24"
4. Rim width : 1.5" - 17"
5. Balancing speed : 200RPM
6. Balancing accuracy :1g
7. Motor Power : 0.2kw
8. Power supply : 220V/110V
9. Noise level : <70dB
10. Cycle time : 7s

MAIN FEATURES

• LCD monitor.
• Conspicuous graphical user interface for quick and easy operation.
• Inside and outside 12 o’clock position self-calibration.
• Automatic distance (a) and wheel diameter measuring(d).
• Automatic width measuring by width gauge.
• Laser technology for exact detection of tire and rims defects.
• DNY mode for standard rim, 6 ALU modes for alloy rims or special-shaped rim.
• Self-calibration and diagnosis.
• Find unbalance position and stop automatically.
• Low-speed spin.
• SP and hidden weight mode.
• Pedal-operated main shaft lock.
• CE certificated

Optional Parts:

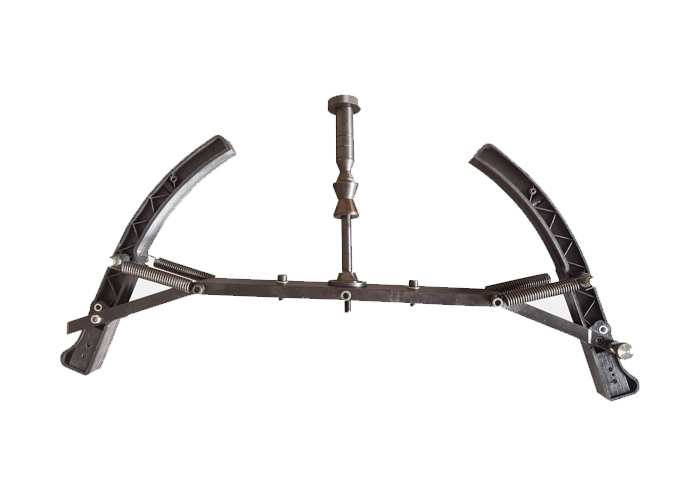

Motorcycle Adaptor

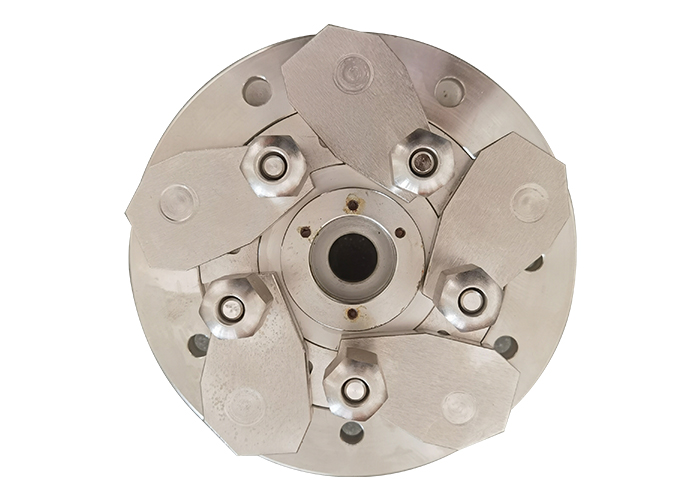

Universal Adaptor
