| Categories | Plastic Recycling Lines |
|---|---|
| Brand Name: | BEAKELAND |
| Model Number: | BKL500 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 SET |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1SET/MONTH |
| Delivery Time: | 45~65 WORKING DAYS |
| Packaging Details: | Standard Export Package |
| Name: | Waste Plastic Recycling Plant |
| Processing: | Crushing-Washing-Drying-Storage |
| Capacity: | 1500-2000kg/h |
| Application: | PP PE Plastic bottles,drum,crates,cans |
| Moisture of products: | 1-2% |
| Plastic type: | PP\PE,PP PE HDPE |
| Keyword: | Plastic Recycling Lines |
| Washing machine parts: | Contact with material: Stainless steel |

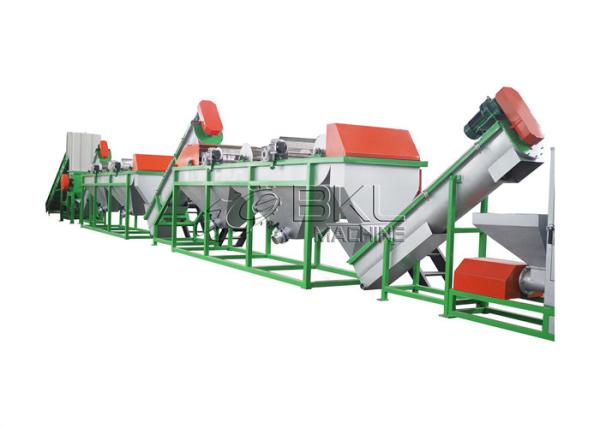

PP PE Waste Plastic Recycling Plant Of Plastic Recycling Lines
Description:
This PP PE Waste Plastic Recycling Plant Of Plastic Recycling Lines can easily wash and recycle waste PP PE HDPE LDPE bottles,drum,crates,cans,containers,sheets,profiles wastes. Waste and dirty plastics can be processed step by step, by this recycling machine. It is special for washing PP PE daily plastic wastes. We can help to attach equipment at the end of the washing recycling line so that the completely dry flakes can be collected and packed directly after been washed.
Main processing steps include: Crushing-Washing-Drying-Packing.
This PP PE Waste Plastic Recycling Plant is high automatic operating and low consume, can save labor, save power and save water, easy to maintenance.
Main components of Plastic Recycling Lines
| No. | Machine name | Function |
| 1 | Belt conveyor | For waste material feeding automatically. |
| 2 | Shredder | For material size reduction. Single shaft shredder & Double shaft shredder could be all choosed as per different plant's needs. |
| 3 | Crusher/Granulator | Wet crushing system.It used for material size reduction and pre-washing. |
| 4 | Low speed friction washer | For material conveying to next washing steps. 720rpm rotating speed could pre-washing the material with a good effect. |
| 5 | Screw loader | For material conveying to next stage. |
| 6 | Sink & Float separation tank | for impurities precipitating separation and wash the material more clean. |
| 7 | High speed Friction washer( Scrub washing machine) | It could achieve a good cleaning effects through the blades on the beating and spray. This machine is suitable for broken film and Plastic flakes washing. |
| 8 | Dewatering machine(Centrifugal dryer) | This machine is mainly used for the cleaning of waste plastic after mechanical dewatering and drying, the spindle through high speed rotating threw the plastic and water to the screen, water releases by screen, while the plastic is from the outlet to be out of the machine enters into the next procedure. The machine has a good drying effect and high energy efficiency. The blade is made of high wear-resistant materials, can be replaced more conveniently. |
| 9 | Hot air drying system | For further material drying and transportation to final packing system |
| 10 | Film Squeezer dryer | Replace the traditional centrifugal dryer above.It could turn washed film to granulas pieces directly which could increase pelletizing capacity further. |
| 11 | Storage silo | For material storage and packing |
| 12 | Electrical control cabinet | Electrical parts brand customized. |
Technical parameter of Plastic Recycling Lines
For Rigid PP / PE:
| Model | BKL-FR500 | BKL-FR1000 | BKL-FR2000 | BKL-FR3000 |
| Capacity (KG/H) | 400-500 | 800-1000 | 1800-2000 | 2500-3000 |
| Water consumption(T/H) | 2--3 | 3--4 | 4--6 | 6--8 |
| Power Consumption(/H) | 90--130 | 130-210 | 200-350 | 300-400 |
| Staff(person) | 2-3 | 2-3 | 4-6 | 6-8 |
| Factory Area (M2) | 350 | 450 | 500 | 1000 |
| Final moisture(%) | 1 | 1 | 1 | 1 |
| Final particle size(mm) | 8-14mm | 8-14mm | 8-14mm | 8-14mm |
Product features of the Plastic Recycling Lines
| 1 | High working efficiency, less energy consumption; high automation, less power. |
| 2 | Long life, machine material is SUS304 stainless steel. |
| 3 | Wet crusher. Crush the plastic with water. SKD-11 blade material. |
| 4 | By multiple friction washing, rinsing washing and hot washing, the dirty such oil contamination and mud can be washed out fully. |
| 5 | Reasonable flowchart design for convenient operation and lower maintenance cost. |
| 6 | Good drying result. Final plastic moisture is less than 3%. |
