800x480 Dot Matrix Lcd Module ISO9001 24 Bit Rgb Mipi White LED Backlight

Categories	TFT LCD Display
Brand Name:	Chenghao/Oem
Model Number:	CH700WV02A
Certification:	ROHS、ISO9001、CE
Place of Origin:	ShenZhen, China
MOQ:	100 pcs
Price:	/
Payment Terms:	T/T
Supply Ability:	300Kpcs/month
Delivery Time:	7-15 working days
Packaging Details:	All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
LCD type:	7.0" TFT
Dot arrangement:	800×480 dot
Color Pixel Arrangement:	RGB vertical stripe
Display Mode:	TN / Transmissive/Normally white
Surface Treatment:	Anti-Glare, Hardness:3H
Viewing Direction:	6o’clock
Module size:	164.9(W)×100.0(H)×5.7(T) mm

Contact Now

Add to Cart

Company Info.

Shenzhen ChengHao Optoelectronic Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

800x480 Dot Matrix Lcd Module ISO9001 24 Bit Rgb Mipi White LED Backlight

800x480 Dot Matrix Lcd Display Module 24 Bit Rgb Interface White LED Backlight Type

ITEM	STANDARD VALUES	UNITS
LCD type	7.0’’TFT	--
Dot arrangement	800×3(RGB)×480	dots
Color Pixel Arrangement	RGB vertical stripe	--
Display Mode	TN / Transmissive/Normally white	--
Surface Treatment	Anti-Glare, Hardness:3H	--
Viewing Direction	6o’clock	--
Module size	164.9(W)×100.0(H)×5.7(T)	mm

Company Strenghth:

1> ISO9001 certificated, Factory Direct Supplied

2> RoHS Compliant, Lead Free, Reach Compliant

3> Competitive Price and Short Lead-time

4> Professional Team with Rich Experiences in Design/Mfg/Quality Control

5> Small MOQ Support & Fast Response to Customers

6> Long Product Life Time

ChengHao Display model CH700WV02A is a color active matrix thin film transistor (TFT) liquid

crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is com

-posed of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.

This TFT LCD has a 7.0 (16:9) inch diagonally measured active display area with WVGA (800

horizontal by 480 vertical pixel) resolution.

The driver used for this project is the Himax and can display 16M colors by 24 bit R.G.B. signal

input. The driver is mounted on the glass and the interconnection via FPC including components

to drive the display module. Support RGB interface.

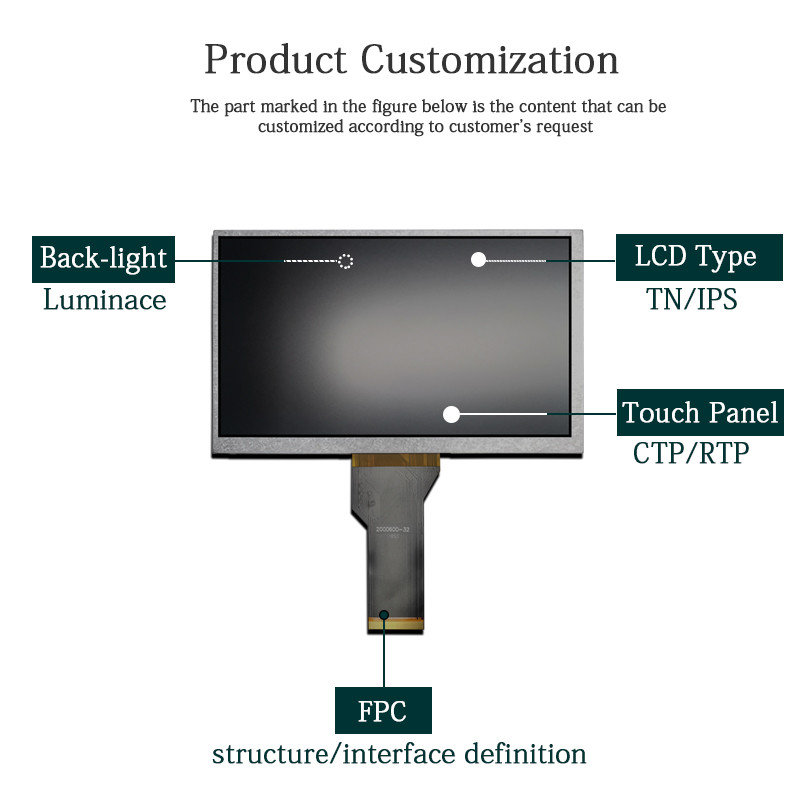

In addition, FPC can also be customized according to customer requirements, such as modifying

back-light and FPC structure, interface definition, etc.

RoHS Compliance & Halogen Free.

About Customization:

all of our products can be with or without touch, whatever you choose. Backlight brightness and FPC

interface can be customized according to your requirements.

Module Type	Display Area	Display Mode
1.44 inch	25.50 * 26.50 mm	Normally White IPS, Transmissive
1.44 inch	25.50 * 26.50 mm	Normally White TN, Transmissive
1.50 inch	29.76 * 22.32 mm	Normally Black IPS, Transmissive
1.54 inch	27.72 * 27.72 mm	Normally Black IPS, Transmissive
1.54 inch	27.74 * 27.74 mm	Normally Black IPS, Transmissive
1.77 inch	28.03 * 35.04 mm	Normally White TN, Transmissive
1.80 inch	28.03 * 35.04 mm	Normally White TN, Transmissive
2.00 inch	30.60 * 40.80 mm	Normally White TN, Transmissive
2.10 inch	Circular display area	Normally White IPS, Transmissive
2.31 inch	46.75 * 35.06 mm	Normally White TN, Transmissive
2.40 inch	36.72 * 48.96 mm	Normally White TN, Transmissive
2.40 inch	36.72 * 48.96 mm	Normally White IPS, Transmissive
2.80 inch	43.20 * 57.60 mm	Normally White TN, Transmissive
2.80 inch	43.20 * 57.60 mm	Normally White IPS, Transmissive
3.00 inch	36.72 * 65.28 mm	Normally Black IPS, Transmissive
3.20 inch	48.60 * 64.80 mm	Normally White TN, Transmissive
3.50 inch	70.08 * 52.56 mm	Normally White TN, Transmissive
3.50 inch	70.08 * 52.56 mm	Normally Black IPS, Transmissive
4.00 inch	51.84 * 86.4 mm	Normally Black IPS, Transmissive
4.00 inch	71.86 * 70.18 mm	Normally Black IPS, Transmissive
4.30 inch	95.04 * 53.86 mm	Normally White TN, Transmissive
4.30 inch	95.04 * 53.86 mm	Normally Black IPS, Transmissive
5.00 inch	110.88 * 62.83 mm	Normally White TN, Transmissive
5.00 inch	108.00 * 64.8 0mm	Normally Black IPS, Transmissive
5.50 inch	68.04 * 120.96 mm	Normally Black IPS, Transmissive
6.00 inch	74.52 * 132.48 mm	Normally Black IPS, Transmissive
7.00 inch	154.08 * 85.92 mm	Normally White TN, Transmissive
7.00 inch	153.6 * 90 mm	Normally White TN, Transmissive
7.00 inch	154.21 mm * 85.92 mm	Normally Black IPS, Transmissive
8.00 inch	107.64 * 172.22 mm	Normally Black IPS, Transmissive
9.00 inch	196.61 * 114.15 mm	Normally White TN, Transmissive
10.10 inch	135.36 * 216.58 mm	Normally Black IPS, Transmissive
