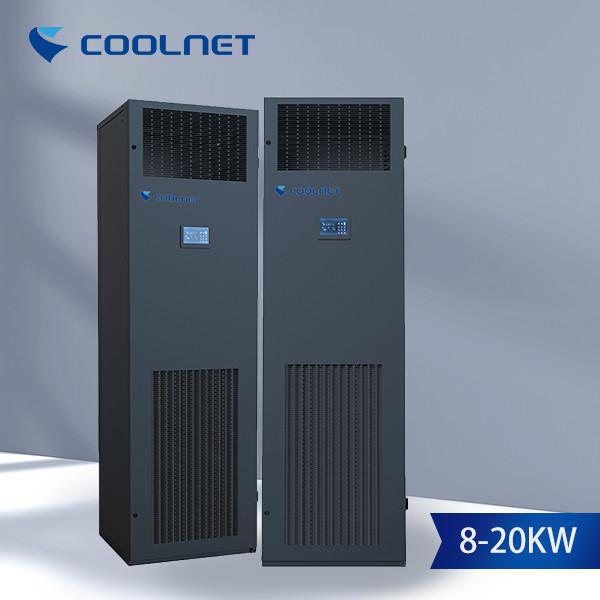

6KW Data Center Precision Air Conditioner , IT Room Air Conditioning

Categories Computer Room Air Conditioning Unit
Brand Name: Coolnet
Model Number: M13
Certification: CE/ISO9001
Place of Origin: China
MOQ: 1
Price: $1000.00-5000.00/set
Payment Terms: T/T
Supply Ability: 1000-5000/set/month
Delivery Time: 4W
Packaging Details: WOODED
Cooling Capacity: 5-13KW
Color: Black/Grey white/other custom colors
Mounting: Floor Standing
Operating Voltage: 380/400 VAC,230 VAC,220V
Operation: Computer Room,Printing factory/cinema/supper marekt/restaurant/Offfice/Kindergarten,Industrial,Heat recovery,adjust cold/heat/humidity
Power: 3N-380V-50Hz,220v/50hz/60hz
Air Flow: Front Flow
Product: precision air conditioning unit/ data center cooling unit /computer room unit /close control unit
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

6KW Data Center Precision Air Conditioner , IT Room Air Conditioning

HVAC Cooling Systems For Data Centers Computer Room And IT Cooling Unit 6-20KW


Product Introduction

Cool-smart series constant temperature and humidity precision air conditioner is with modular design, high EER, large screen human-computer interface and intelligent control system. It has options of air-cooled, water-cooled, chilled water and double source cooled. Cool-smart series have the following features: Fully intelligent and precise control of constant temperature and humidity function, high sensible heat ratio, high energy efficiency refrigeration system design, large air volume, small enthalpy difference design, to meet the professional temperature control needs of the computer room, ultra-wide grid adaptability, phase sequence fault-tolerant wind.


Application

  • IDC
  • Computer room Network equipment room
  • Server room,communication equipment room Monitoring room
  • Power distribution room and battery room High precision lab
  • Test room, Inspection room
  • Measuring room Industrial control room
  • High precision workshop Archive
  • Storage room
  • Museum
  • Wine cellar


Air Supply Method

Technical Parameter
ModelM04M06M08M13M16M20
Power Supply220V1Ph-50Hz380V3Ph-50Hz
Air dischargeUp Front/Down
Technical Data Sheet
AC FanTotal cooling capacity-KW4.26.47.512.516.820.2
Sensible cooling capacity-KW3.95.86.911.315.318.3
Unit FLA-A(heating, humidifying type)20.025.016.822.023.528.6
Compressor Quantity1
Fan Quantity1
Air Volume-m3/h160019002300360051006500
Heater Capacity-KW3.03.06.06.06.06.0
Humidification-kg/h333366
Power of humidifier-KW2.32.32.32.34.54.5
Outdoor Condenser
ModelSCA020SCA020SCA030SCA030SCA050SCA050
Standard unit operating temperature range-℃-15-45℃
Low Temperature Components Operating Temperature Range-℃-40-45℃
