| Categories | Chemical Drum Blow Molding Machine |
|---|---|
| Brand Name: | DAWSON |
| Model Number: | ABLD120 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | US $150,000-175,000 / set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20-30 sets / month |
| Delivery Time: | 60days |
| Packaging Details: | Standard Export Packing |
| Suitable product volume: | 100-250 L |
| Screw Diameter: | 120mm |
| Station Number: | Single |
| Company Attribute: | Manufacturer |
| Screw Drive Power: | 75 Kw |
| Clamping Force: | 800 Kn |
| Mold Stroke: | 600-1500mm |
| Trademark: | Dawson |
| Specification: | ABLD120 |
| HS Code: | 8477301000 |
| Max. Product Volume: | 300L |
| Robot System: | Available |
| Guarantee Time: | One Year |
| Screw L/D Ratio: | 28 L/D |
| Output of HDPE: | 240 Kg/H |
| Max.Size of Mold: | 1000X1500mm |
| After-Sales Service Provided: | Engineers Available to Service Machinery Overseas |
| Transport Package: | Film Packing |
| Plastic processed: | PE,PET,PP,HDPE,PVC |
| Company Info. |
| Dawson Machinery & Mould Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

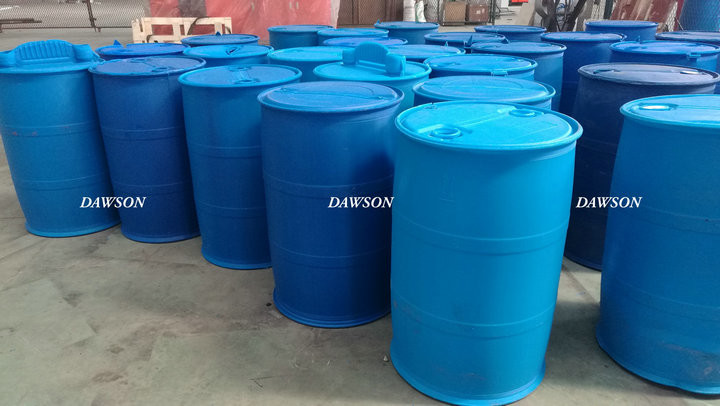

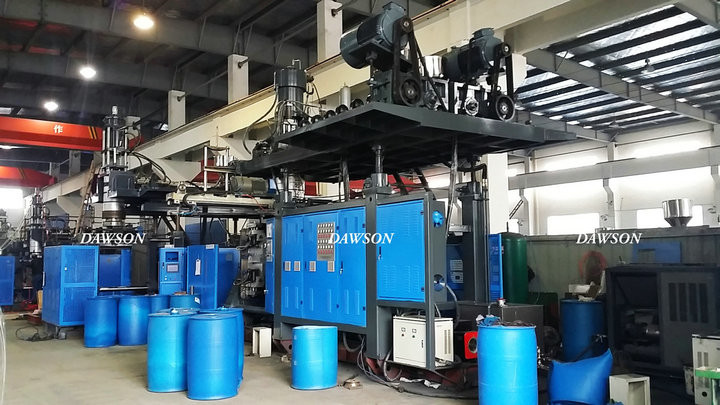

ABLD120 Accumulation Blow Molding Machine
was specially designed for making plastic water tanks, plastic
cans, lubricant oil bottles, plastic drums, plastic toys and other
plastic containers not over 250L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic
containers and bottles in all shapes are available, the max.
Product volume is up to 250L.
(2)Single station single die head design, very easy to operate and
maintenance.
(3)Most components of the blow moulding machine are from famous
world brand.
(4)Fully automatic process with low power consumption, high
efficiency, quick and safe operation, easy for maintenance.
(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
Blow Molding Machine ABLD120
| Max. Product volume | 250liters |
Output capacities | as per samples |
Screw diameter | 120mm |
Screw L/D ratio | 28 L/D |
Screw drive power | 75 KW |
Screw heating capacity | 30 KW |
No.of heating zone | 5 zones |
Output of HDPE | 240 KG/H |
Oil pump drive power | 45 KW |
Clamping force | 800 KN |
Max.size of mold | 1000X1500mm |
Mold stroke | 600-1500mm |
Max.die diameter | 520mm |
Die heating power | 12 KW |
Die heating segments | 5 zones |
Blowing pressure | 0.8mpa |
Air volume | 1.6 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 180 L/MIN |
