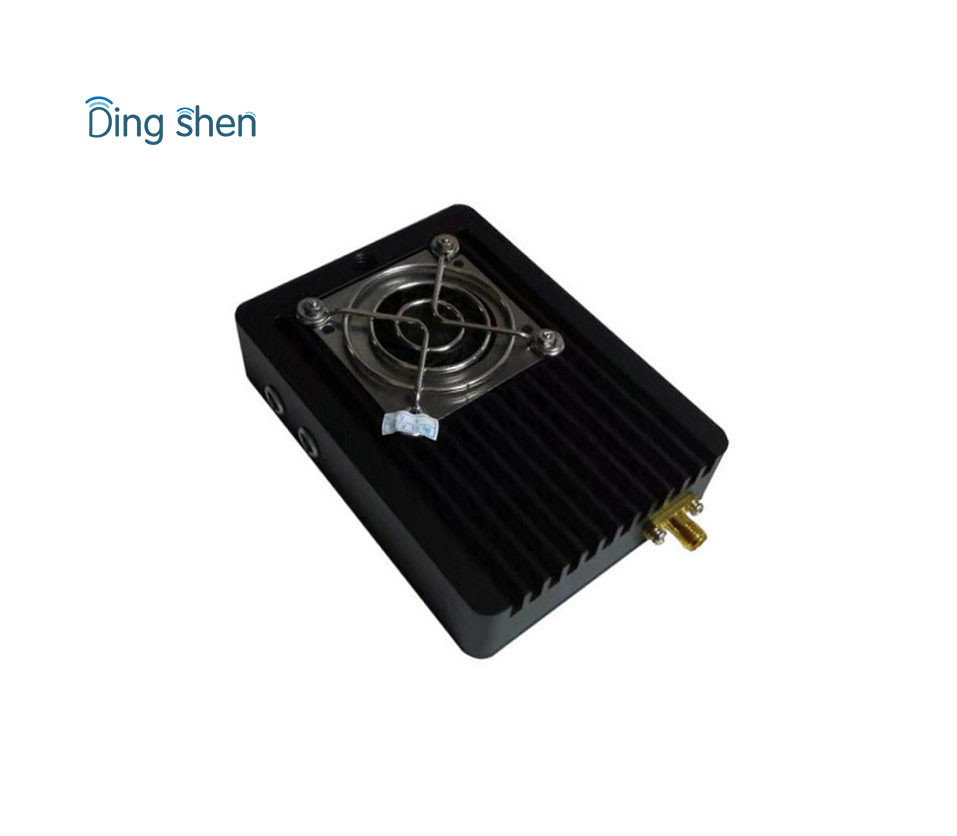

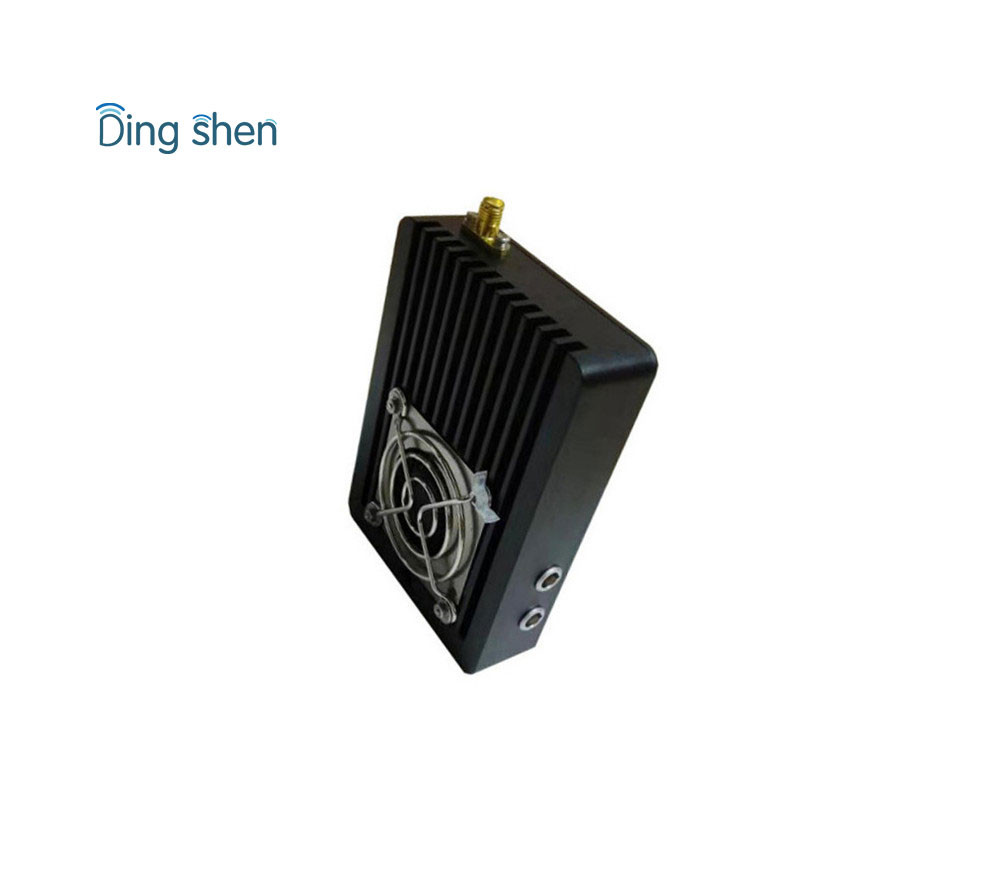

1Watt Wireless Audio Video Transmitter Receiver COFDM Modulation

portable wireless audio transmitter and receivers 10-20km drone

portable wireless audio transmitter and receivers 10-20km drone is
a mini HD 1080P COFDM video transmitter, using COFDM multi-carrier
modulation transmission system.

portable wireless audio transmitter and receivers 10-20km drone has
high efficiency innovative H.264 compression encoding, integrated
with lightweight, low power consumption of OLED display control
panel, integrating digital modulation, and highly integrated HD
moving LOS and NLOS digital video transmission equipment.

Built-in with HD-MI or HD-SDI interface. portable wireless audio
transmitter and receivers 10-20km drone can transmit high quality
full 1080P hd video and audio with obstacles or high-speed mobile
shooting.

Features:
* inbuilt with HD-MI and data serial port
* Heat dissipation with aluminum case;
* Great security by AES user defined encryption
* Ideal for UAV/UGV and hidden mission use
* Low delay time;

Transmitter parameter:

Frequency	300-900Mhz or other frequency customized
Modulation	COFDM
Consumption	<40W
Encryption	AES 128 bits
Constellation	QPSK(4QAM),16QAM,64QAM
FEC	1/2 2/3 3/4 5/6 7/8
Guard Interval	1/32 1/16 1/8 1/4
Carrier	2K,8K
Bandwidth	2/3/4/6/7/8MHz (option)
Transfer rate	6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power	1 watt
Video input	HDM-I
Video coding	MPEG-4/H.264
Video resolution	19201080P/I@60fps; 1280720P/I@60fps; 704*576 PAL
Working voltage	DC12V
Working Temperature	-20℃ -- +55℃
Dimension	729832mm
Weight	190g without battery; 250g with battery
Box colour	Black
Antenna port	N type

Receiver parameter:

Frequency	300-900Mhz (option) or other frequency customized
Bandwidth	2/3/4/5/6/7/8MHz (option)
RF input level	-94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance	50Ω
RF input type	N type
Modulation	COFDM
Constellation	QPSK,16QAM,64QAM(adjustable)
FEC	1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier	2k
Guard Interval	1/32,1/16,1/8,1/4(adjustable)
Video coding	MPEG-4/H.264
Screen	4:3 16:9
Video resolution	1920*1080P/I@4Mhz
Audio output	Stereo unbalance 300/ 200mv
AV output	2 Audio output + 2 Video output; HDM-I
Working voltage	AC220V/DC12V <1A
working temperature	-20℃~+50℃
Dimension	48330044mm
Weight	1.5kg
