| Categories | IOT Pressure Sensor |
|---|---|
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK83MA |
| Packaging Details: | standard export carton box for WNK83MA pressure sensor or as per your |
| Price: | $6.50/Pieces |
| MOQ: | 1pcs |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 5000/ Piece/ Month |
| Delivery Time: | 5-8 work days |
| Warranty: | 1 YEAR |
| Customized support: | OEM, ODM |
| Accuracy: | 1%FS |
| Measured media: | Liquid, gas and steam |
| Output: | 0.5-4.5VDC |
| Input: | 4.75-5.2VDC |
| Storage temperature: | -40~110°C |
| Work temperature: | -20~70°C |
| Electrical connection: | Cable outlet/ Packard |
| Mechanical connection: | 1/4"NPT |
| IP Rate: | IP65 |
| Housing material: | Brass |

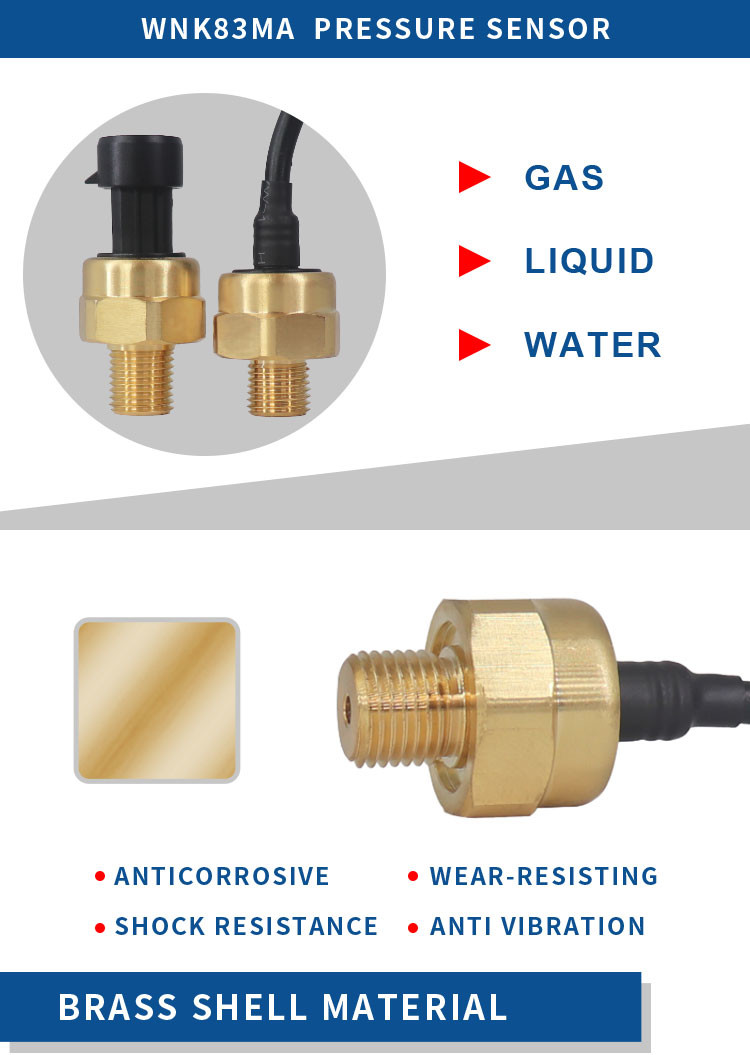

0.5-4.5V Brass Ceramic Capacitance Pressure Sensor For IOT Application
| Applicable media | Liquid, gas, steam |
| Pressure range | 0-10bar, 0-20bar |

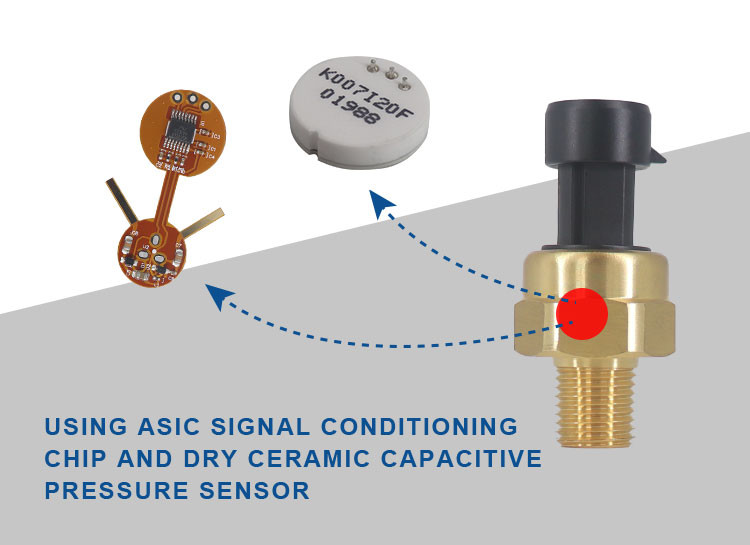

| Cell | Ceramic capacitive pressure sensor |
| Pressure measurement | Gauge pressure, sealing pressure |
| Output | 0.5-4.5VDC |
| Power supply | 4.75-5.25VDC |
| Accuracy(linearity, hysteresis and repeatability) | 1%F.S. |
| Work temperature | -20~70ºC |
| Ambient temp | -40~110ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~70ºC) |
| Electrical connection | Cable outlet/ Packard |
| Mechanical connection | 1/4NPT/ G1/4 |
| Housing material | Brass |

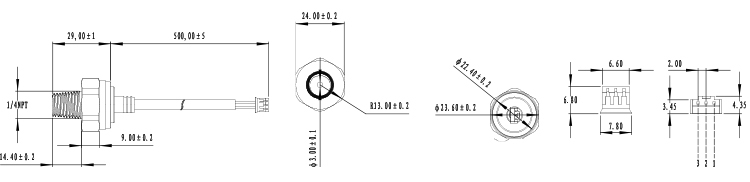

Mechanical Dimension:
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
|
