400KVA Wire Welding Machine Hwashi WL-SQ-MF IBC Cage Frame welding

Hwashi IBC Cage Frame container iron tube mesh machine,automatic production line

HWASHI FACTORY WORK SHOP .pdf

HWASHI Brief Introduction

Our machines have been widely applied to various kinds of industries, such as kitchen utensils, automobile making, motorcycle manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.

Product Description

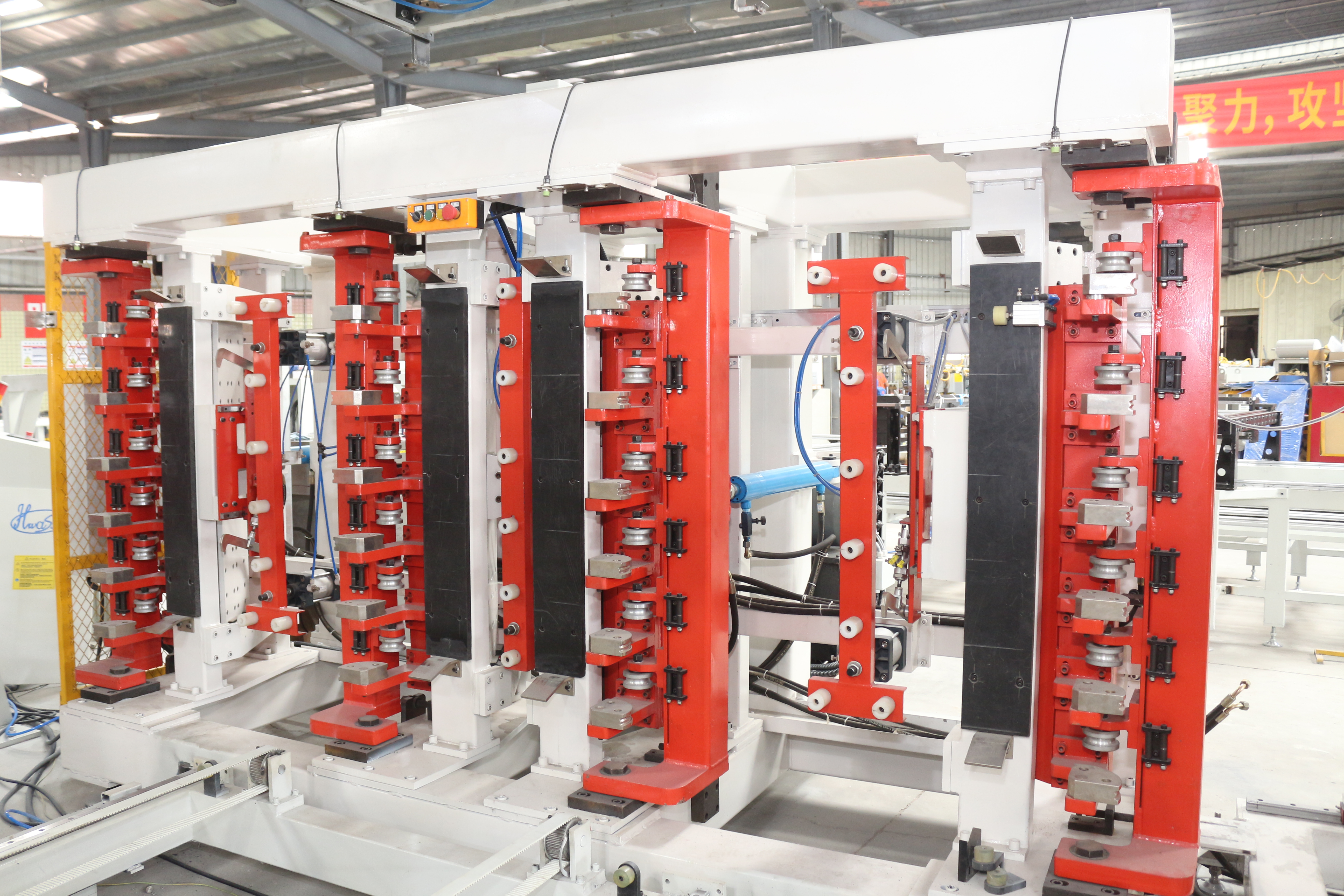

◆ Frame Welding Machine

This machine is designed as reinforced gantry structure with the advantage of high rigidity and stable running. The welding power is designed with medium frequency inverter power supply system with the features of electricity and energy saving. The machine is equipped with 6 sets of welding head and 6 sets of power supply systems. The welding current of each single point could be adjusted independently in order to ensure the reliability of welding spot. For the sake of increasing the output efficiency, it is designed as double-layer feeder for cycle running. When one feeder is under welding process, another feeder could be loaded with material. Automatic stepping welding. Servo motor will drive the stepping belt to ensure the accuracy of stepping position. Automatic demolding device: after welding the product, the demolding cylinder will jet up for preparation of automatic unloading. Automatic unloading device will grab the product via servo motor control. It will move down to grab the welded product and moving to the setting position via servo motor. It helps to reduce labor force and lower labor intensity. It is designed as 90° rotation of unloading feeder for the convenience of transportation of welded product.

◆ Frame Bending Machine

1. The equipment frame is processed as a whole to ensure high bending precision, stable operation and high efficiency. Every 15-20s can bend a frame.

2. Adopt special bending balance system to ensure diagonal dimension of frame.

3. The machine is controlled by human-machine interface +PLC programming control mode, with high degree of automation.

4. Manipulator can be configured to automatically load and unload materials to reduce personnel configuration.

5. Simply change the mold block, you can meet the needs of bending different pipes, and the mold is easy to change.

6. Servo hydraulic, with fast response, low inertia, high precision.

7. High degree of modularization of each part of the equipment, which can be configured to improve the degree of automation according to customer requirements.

◆ Frame Locking Machine

1. The machine frame is processed as a whole, with high insertion precision, large fastness to locking, stable and efficient operation.

2. The machine is controlled by human-machine interface +PLC programming control mode, with high degree of automation. 3. Manipulator can be configured to automatically load and unload materials to reduce personnel configuration.

4. Only by changing the mold block, the requirements of different locking pipes can be met, and the mold can be replaced easily.

5. The servo hydraulic system has the characteristics of fast response, small inertia and high precision.

6. High degree of modularization of each part of the equipment, which can be configured to improve the degree of automation according to customer requirements.

◆Punching and Hole Making Machine

1. The machine frame is processed as a whole, with high precision, stable and efficient operation.

2. The machine is controlled by human-machine interface +PLC programming control mode, with high degree of automation. 3. Manipulator can be configured to automatically load and unload materials to reduce personnel configuration.

4. Simply change the mold block, you can meet the needs of different pipes for punching, and the mold is easy to change.

5. The servo hydraulic system has the characteristics of fast response, small inertia and high precision.

6. High degree of modularization of each part of the equipment, which can be configured to improve the degree of automation according to customer requirements.

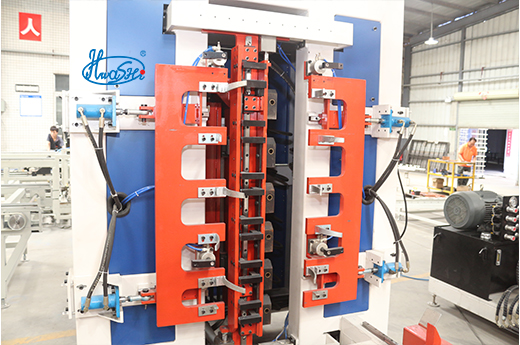

◆ Frame Base Welding Machine

The design adopts horizontal structure and 7 welding heads for completing the welding of base frame. The operator only need to load and unload the product. The machine will do the welding automatically. It adopts 3 sets of MF DC 160KVA power. The machine helps to increase product quality and production rate, lower the production cost. Solve the problem of unstable welding quality caused by manual work. Higher production rate and automation level.

Technical Parameters

item	value
Place of Origin	China ,Guangdong
Application	Bending, WELDING, Decoiling, Cutting, PUNCHING
Brand Name	HWASHI
Electricity Requirement	Three-phase Four Wires 380V±10%
Power	400KVA,air switch 600A
Control Method	PLC
Automatic Moving Speed	200-500mm/s Adjustable
Machine Size	3500x165000mm
Rated Air Pressure	0.6MPa
Cooling Water Temperature	15-25℃
Required Operator Number	Two people
