| Categories | Powder Packing Machine |
|---|---|
| Brand Name: | BOSHI Powder packing machine |
| Model Number: | BS-420P |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | 8800-10800 USD |
| Supply Ability: | 50 sets/ month |
| Delivery Time: | 15-30 working days |
| Packaging Details: | 3 plywood wooden box packaging |
| Advantage: | High accuracy |
| Suitable film: | PET/PE etc. |
| Type of sealing:: | 4 side seal or others |
| Machine speed range:: | 5-60 bags/ min |
| Bag width:: | 50-200 mm |
| Bag length:: | 50-300 mm |
| Function:: | FILLING, Wrapping, Labeling, Sealing, date printing |
| Driven Type:: | PneumaticPillow bag or gusset bag or quad side seal |
| Voltage:: | 220/380v |
| Dimension(L*W*H):: | L 1320 * W 920 * H 1392 mm |
| Company Info. |
| Foshan Boshi Packing Machinery Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

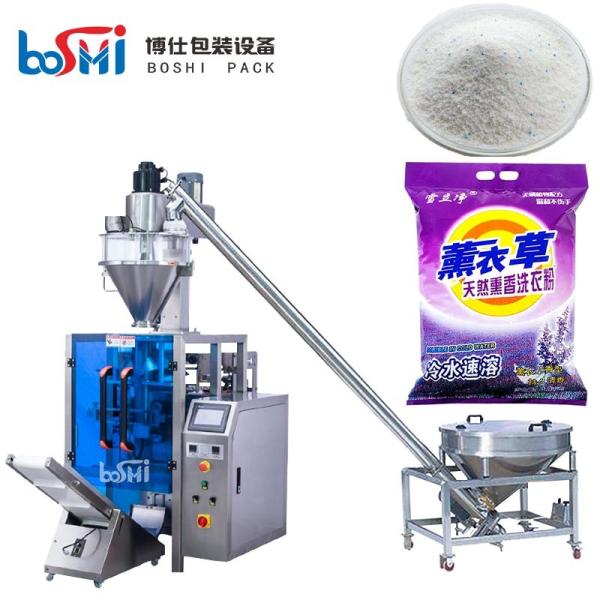

1. Low cost high capacity, high speed and efficiency.
2. Famous brand PLC control system, large touch screen,convenient to operate.
3. Film drawing down system and flow sealing controlled by servo motor.
4. Minimize the loss with complete automatic alarm function.
5. It can complete feeding, measuring, filling, sealing, finished product delivery when it equips with feeding and measuring equipment.
6. Types of bag : the machine can make pillow-type bag and standing bag according to customer’s requirements.
Model | BS-420P |
Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300 mm |
| Packing speed | 10-70 bags/ min |
| Type of sealing | Pillow bag,3 or 4 side seal and gusset bag |
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
| Auger filler | |
| Weighting and filling system | Auger screw |
| Weighting range | 10-5000g (Different product have different weighting range ) |
| Accuracy: | Volume<100g.Bias:0.5-1gVolume:100-5000g.Bias:0.5%-1% |
| Filling speed: | 10-60 bags/min |
| Filler hoper volume | 50 L |
| Total power: | 1.5 kw |
| Weight | 200KG |
Machine advantages:
Applications:
Suitable for filling and packing varieties of powders, such as milk powder, coffee powder, fruit powder,cocoa powder, grain powder, wheat flour, spice, flour,and etc.
|
