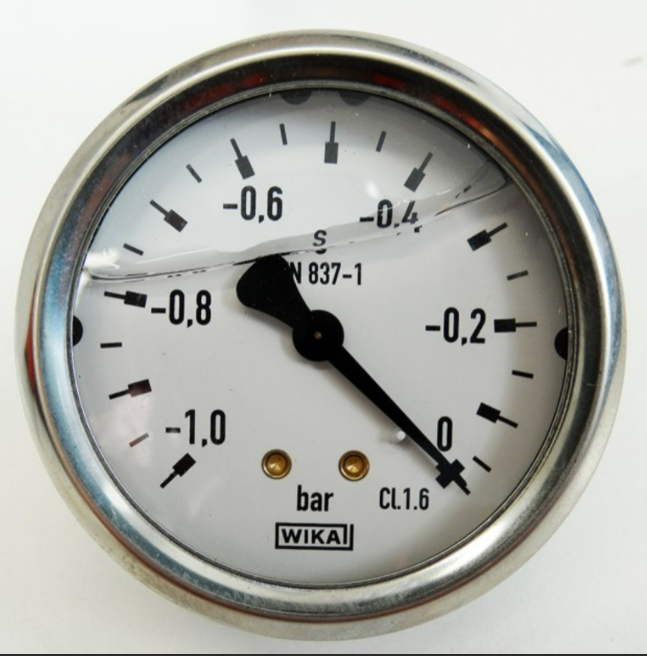

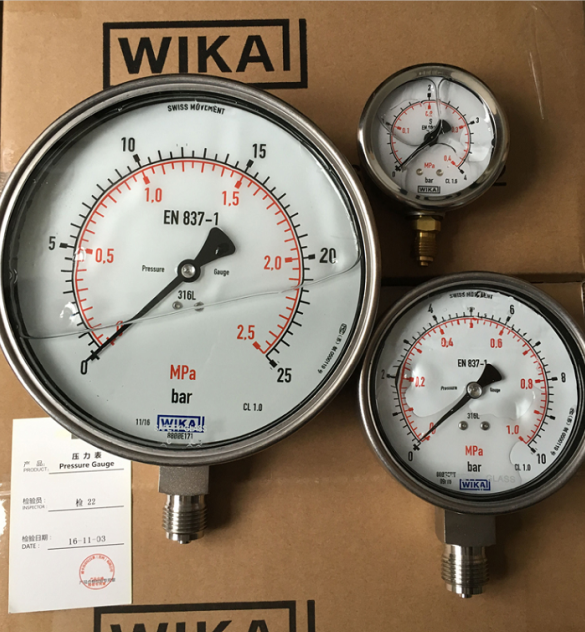

Wika Stainless Steel Pressure Gauge With Brass Fitting High Quality Pressure Gauge

Applications

■ For aggressive, hot, corrosive, environmentally hazardous or toxic media

■ Chemical and petrochemical industries

■ Process industry

Specifications

Special features

■ Process connection with thread for direct threaded connection

■ Version with internal diaphragm

■ Diaphragm seal parts screwed together

■ Universal application

Description

Diaphragm seal systems are used to protect the pressure measuring instrument from aggressive, adhesive, crystallising, corrosive, highly viscous, environmentally hazardous or toxic media. The diaphragm made of stainless steel provides for the separation from the medium. The pressure is transmitted to the measuring instrument via the system fill fluid which is inside the Diaphragm seal system. Due to its design, the DSS10M can be used universally. A replacement of the lower body is possible (e.g. when changing the process connection) without having to carry out modifications on the diaphragm seal system.Mounting of the diaphragm seal to the measuring instrument is made via direct mounting as standard. The DSS10M is particularly well suited for aggressive or hot media. This instrument is mainly geared to applications in the process industry.

Pressure gauge refers to an instrument that uses elastic elements as sensitive elements to measure and indicate pressure higher

than the ambient pressure. It is extremely popular, and it covers almost all industrial processes and scientific research fields.

It can be seen everywhere in the fields of heating pipe network, oil and gas transmission, water and gas supply system, vehicle

repair and maintenance factories and stores. Especially in the process of industrial process control and technical measurement,

because the elastic sensitive element of the mechanical pressure gauge has the characteristics of high mechanical strength and

convenient production, the mechanical pressure gauge is more and more widely used.

Mengchuan Instrument Co., Ltd. is located in Liushi Town, Yueqing City, Wenzhou, Zhejiang Province, surrounded by the beautiful world natural and cultural heritage - Yandang Mountain! It is mainly engaged in 2000 differential pressure gauge, red oil differential pressure gauge, pressure differential pressure transmitter, liquid level transmitter, diaphragm pressure gauge, shockproof pressure gauge, electric contact pressure gauge, stainless steel pressure gauge, precision pressure gauge, micro pressure capsule gauge, floating ball liquid level gauge, floating ball switch, liquid level controller, intelligent energy gauge, light column gauge and other products. The products are widely used in machinery and civil industries such as plastics, food, printing, chemical industry, petroleum, medical treatment, oven, light textile, printing and dyeing, air conditioning, family and so on.

The company adheres to the business philosophy of "customer first, forge ahead" and adheres to the principle of "customer first" to provide our customers with high-quality services. Welcome!
