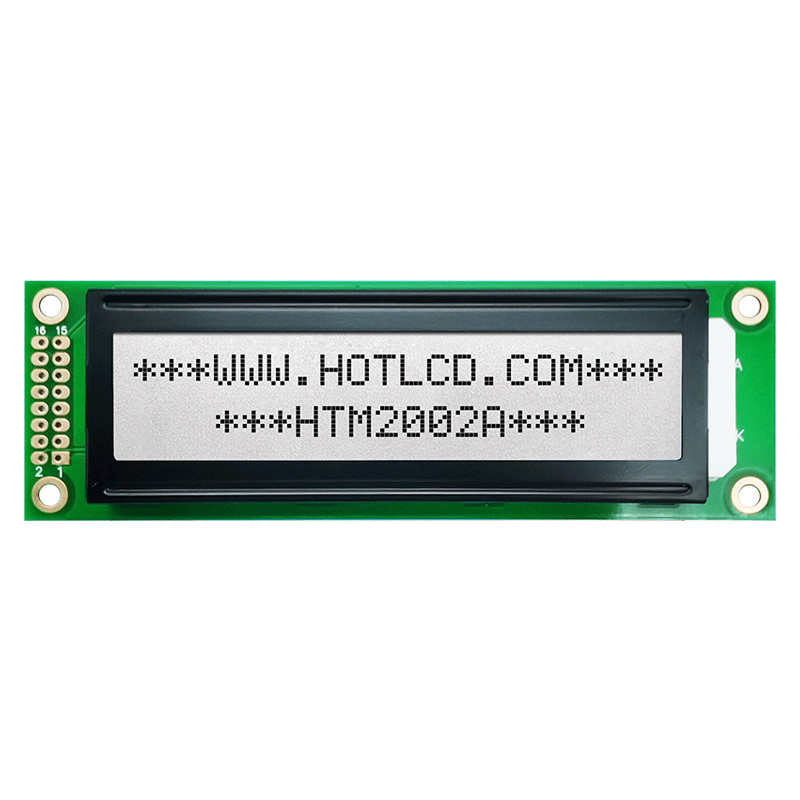

20x2 MCU Character LCD Module Practical With Green Backlight HTM2002A

20x2 Character LCD | Green Backlight/HTM2002A

Quick detail

Product Type - Standard COB Character Module
Display content - 20X2 characters
Dimensions (mm) - 116.0X37.0X14.6
Viewport window size (mm) - 83.0X18.6
Display size (mm) - 75.4X11.5
Dot Spacing mm - 0.65X0.7
Product Application - Industrial Control
Viewing Angle - 6H
Backlight Type or Brightness - Yellow Green
Connection method PIN number - 16PIN
Interface - MCU/8bit
Working temperature - (-20~70℃)
Supply Voltage - 5.0v

Terminal Function

Display Address

HTM2002A.pdf
