| Categories | COG LCD Module |
|---|---|
| Brand Name: | HOTHMI |
| Model Number: | HTG128128A |
| Place of Origin: | Dongguan, China |
| MOQ: | 2 |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union, MoneyGram |
| Supply Ability: | 99999 |
| Delivery Time: | 25 days |
| Product type: | Graphic COG LCD |
| Show contents: | 128x128 |
| Outline size(mm): | 55.0x49.0x2.8 |
| Size of View Window(mm): | 46.0x44.5 |
| Display size(mm): | 40.935x38.375 |
| Point spacing(mm): | 0.295x0.275 |
| Visual angle: | 6H |
| Connection PIN Number: | FPC-12PIN |
| Working temperature ℃: | -20~70 |
| Power supply voltage: | 3.3(V) |
| Driver chip model: | UC1617S |
| Company Info. |
| Hotdisplay Technology Co.Ltd |
| View Contact Details |
| Product List |

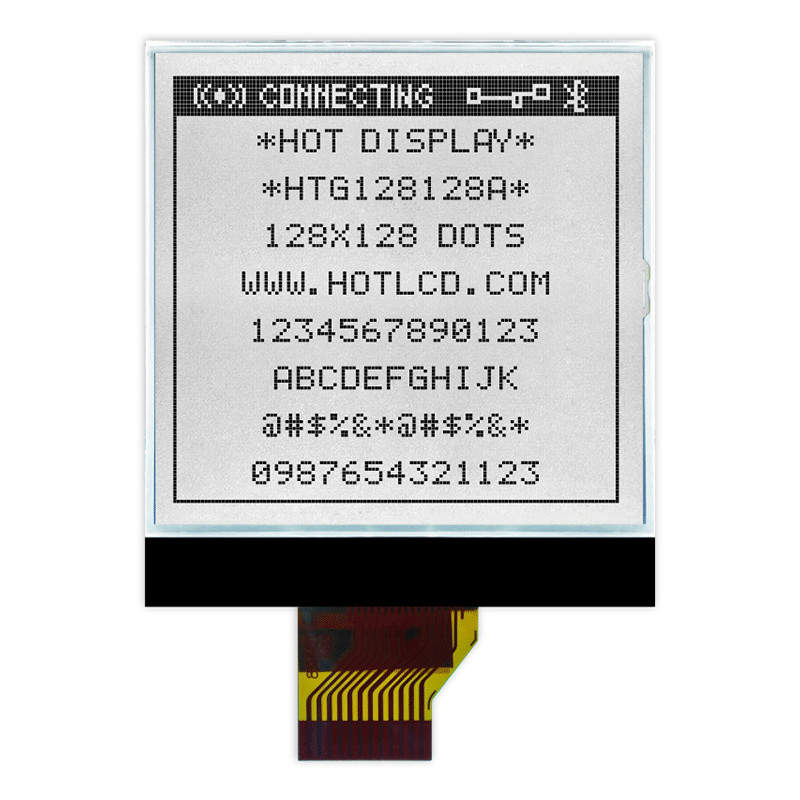

HOTLCD 128x128 graphic Chip-On-Glass (COG) Liquid Crystal Display
shows dark pixels on a white background. This transflective LCD
Display is visible with ambient light or a backlight while offering
a wide operating temperature range from -20 to 70 degrees Celsius.
This HTG128128A display has an optimal view of 6:00, operates at
3.3V supply voltage and is RoHS compliant. This display comes with
a built-in UC1617S controller.
Product parameters
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 128x128 | dots |
| Module dimension | 55.0x49.0x2.8 | mm |
| View display area | 46.0x44.5 | mm |
| Dot size | 0.295x0.275 | mm |
| Dot pitch | 0.32x0.3 | mm |
| Operating temp | -20~70 | ℃ |
| Storage temp | -30~80 | ℃ |
| Driving Method | 1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V | |
| Viewing direction | 6H o'clock | |
| Display mode | STN-BLUE | |
| Display type | TRANSMISSIVE / NEGATIVE | |
| Driver IC | UC1617S | |
| Backlight | WHITE | |
| Product application | industrial control | |
All Products
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.
|
