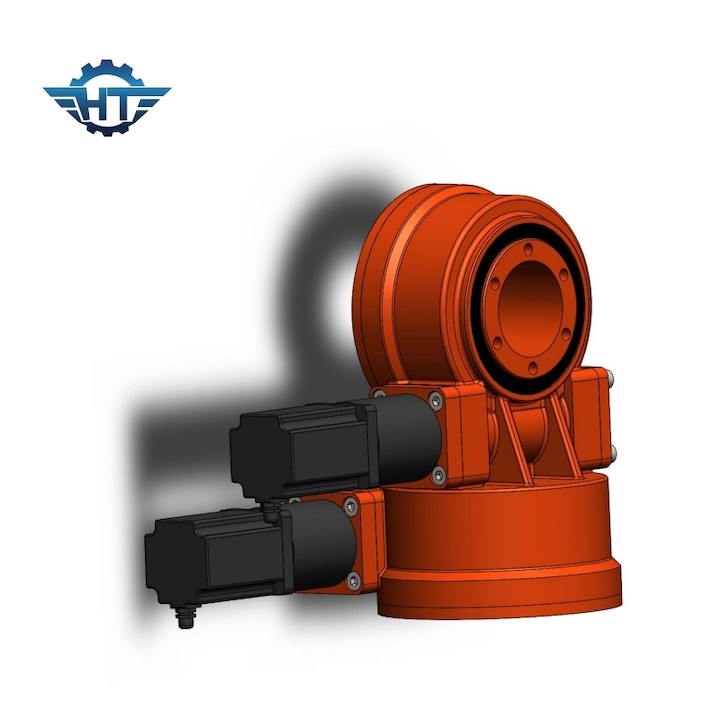

Dual Axis Slew Drive With Worm And Gear Structure For Solar Tracking System

Dual Axis Slew Drive with Worm And Gear Structure For Solar Tracking System

Worm And Gear Slew Drive Description

Slewing drives consist of slewing bearing, worm shaft, housing, bearing, motor and so on. Motor drive the worm shaft, the outer ring of slewing bearing will rotate, the outer ring output the torque through flange while the inner ring of slewing bearing is fixed in housing.

Function

Slewing drive is able to sustain more axial load, radial load and tilting moment. Turntable or frame rotates at azimuth and elevation driven by slewing drive.

Application

For Solar: It is designed in solar tracking system and improves power generation efficiency.

For industrial usage: Mainly used to drive two relative rotating objects in 360°.

Advantages

1. Designed with hourglass worm shaft which provides more tooth contact and higher torque

2. Service life is increased by gear and raceway harden

3. Product performance is tested and ensured product quality.

There are many applications in which the slewing drive can be utilized, primarily because it is perfect for applications that require both load-holding power and rotational torque strength.

Changzhou Hangtuo Mechanical Co., Ltd is a high-tech enterprise integrated with research and development, production and sales. We focus on the research and development of slew bearings, high-precision slew drives, and planetary gear motors. We are committed to provide customers with reliable, diversified, high-quality and customized solutions.

Our products are widely used in solar photovoltaic, photothermal, satellite, robot, engineering machinery etc. We will always devote to continuous product improvement and the implementation of strict quality control standards, and will continue to strive to meet the growing needs of customers.
