7-inch is an RGB interface, TFT, TN 6 0'Clock view, ultra-wide view effect, 800 * 480 resolution LCD TFT display

Categories TFT LCD Display
Brand Name: HG
Model Number: HG070WV013T01
Certification: ROHS/CE/ISO9001
Place of Origin: ShenZhen China
MOQ: 1PCS
Price: Negotiation
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 350KPCS/Mouth
Delivery Time: 7-15working days
Packaging Details: Standard Export Package
Product Name: 7-inch LCD TFT display
LCD Type: TFT+CTP
Dot Arrangement: 800*480
Viewing Angle: TN 6 O'clock ultra-wide view
Luminance: 300cd/m2(customizable)
Signal Type: RGB Interface 40PIN
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

7-inch is an RGB interface, TFT, TN 6 0'Clock view, ultra-wide view effect, 800 * 480 resolution LCD TFT display

HG070WV013T01 7-inch is an RGB interface, TFT, TN 6 0'Clock view, ultra-wide view effect, 800 * 480 resolution LCD TFT display, suitable for special instrumentation.

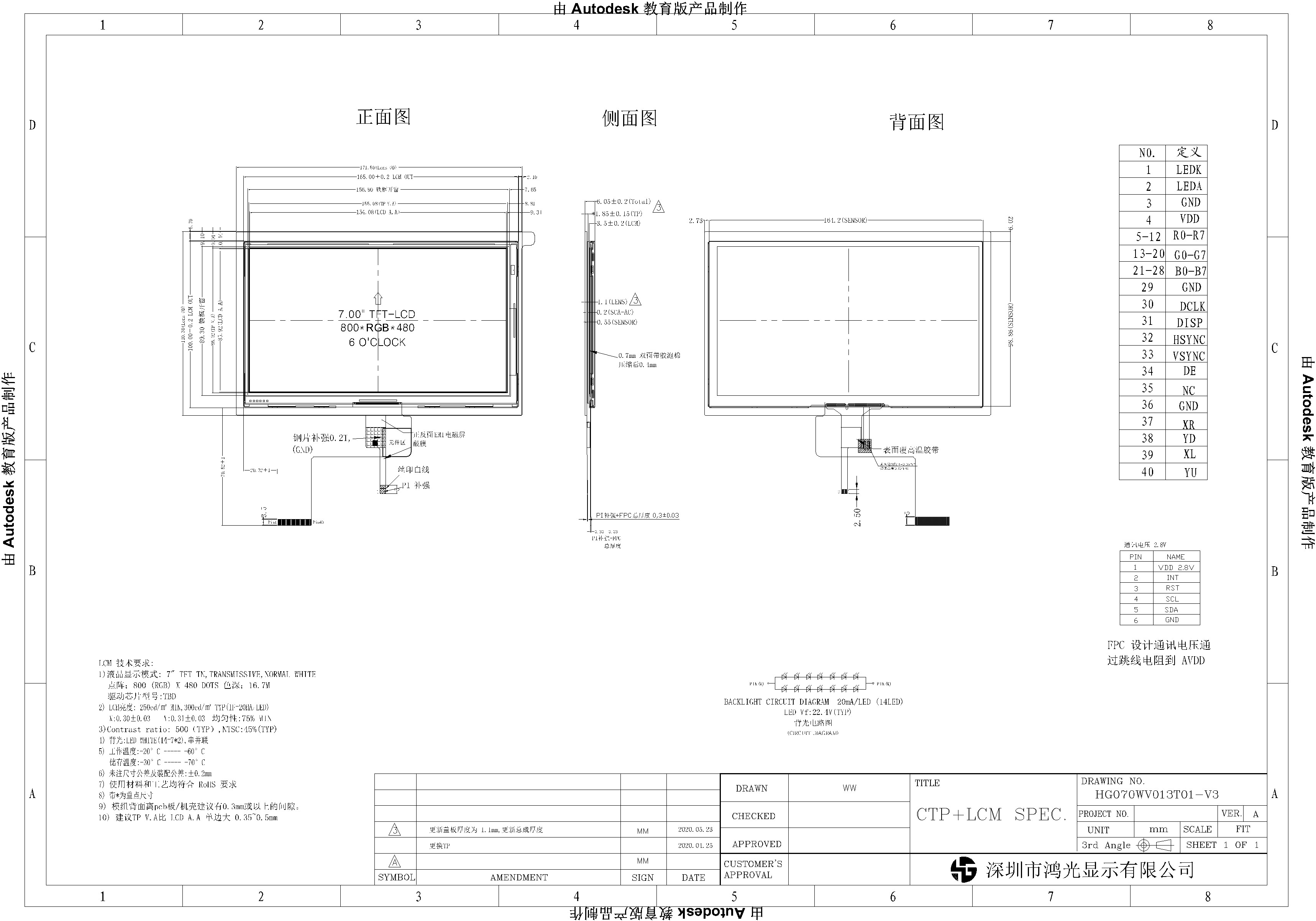

Product parameter details

ModelHG070WV013T01Application industrySpecial instruments and meters
Size7.0 inchArrangement800*480
Display size154.08mm*85.92mmExternal dimensions171.5mm*110.3mm*6.05mm
Viewing Angle

TN 6 O'clock

ultra-wide view

Luminance300cd/m2(customizable)
Contrast ratio500NTSC45%
Signal typesRGB Interface 40PIN
TemperatureOperating temperature is: -20℃ ~60℃, storage temperature: -30℃ ~70℃
TP structureG+GCover plate1.1mm Corning III
TP ICGT911TP interfaceI²C
Remark:The display effect is an ultra-wide view, with a resolution of 800 * 480

Description of products

TFT is 7 inch LCM+CTP, the resolution is 800*480, and the display effect is super wide Angle of view.

It is composed of TFT LCD panel, driver IC, FPC, backlight source and CTP.

It is 800*480 resolution of the standard screen series ultra-wide view of LCD TFT display;

Using RGB-24 channel interface 40PIN, can work in -20℃~70℃, storage temperature: -30℃~80℃;

This product is widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products

All products are available with or without touch and industrial drive boards, no matter what configuration you choose,

Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial drive board)

Comply with RoHS and CE certification standards;

If you can't find a suitable one, please contact us for a recommendation.



Packaging and transportation


Packaging details:

1.All products are packaged correctly to ensure safety.

2.For small-size products, we use the tray = carton.

3.For larger sizes, we use knife cards + foam + cartons.

4. We can also design packaging according to customer requirements.


Transport:

1. Through express delivery (3-7 working days),

2. Marine transportation (15-30 days), suitable for conventional mass production.

3. Air transport (4-5 days), from airport to airport.
