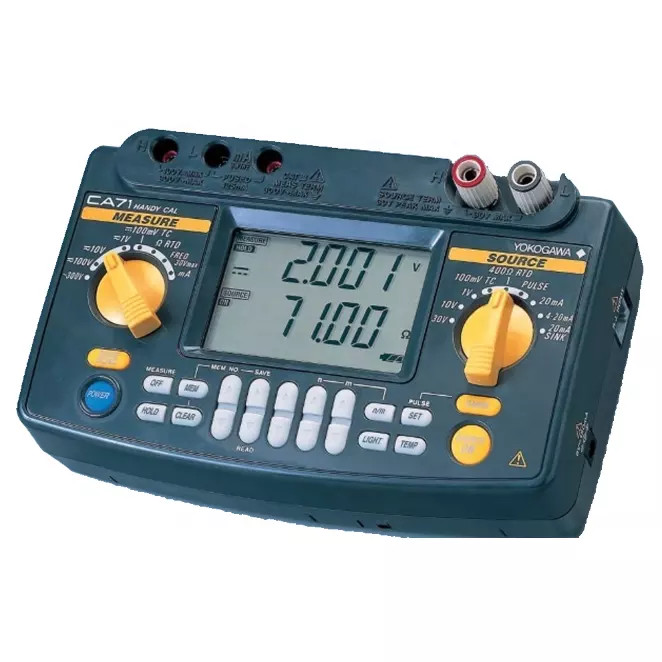

Yokogawa CA71 HANDY CAL Calibrator CA700 CA550 CA150 Process Calibrator

Yokogawa CA71 HANDY CAL Calibrator Yokogawa CA700 CA550 CA150 Process Calibrator

„ GENERAL

The CA51/CA71 HANDY CAL calibrators are comprehensive generating/measuring instruments for all your calibration and equipment checking needs at maintenance sites. The CA51/CA71 can simultaneously generate and measure voltage, current, TC, RTD and pulse signals, thus you don’t need to prepare many instruments. In addition, the incorporated rotary switches of good repute enable operations so smooth that an incorrect measurement caused from erroneous operations can be prevented.

„ FEATURES

Simultaneous signal generation and measurement capability

The CA71 lets you handle regular tests on TCs, RTDs and various other types of sensors and instruments, as well as operation checks when a problem has occurred. By itself it can generate signals for input to equipment, and check output signal from equipment. (TC and RTD measurement functions: CA71 only)

AC voltage (including supply voltage) measurement capability

In cases where numerous signal converters and other devices are mounted on a rack or panel, the CA51/CA71 can be used to check the input and output signals of each device, while simultaneously checking the power supply. There is no need for a separate multimeter to measure supply voltage.

A wide array of useful functions

Divided output (n/m) function, Auto-step function, Sweep function, Memory function and Communication function are available. (Communication function: CA71 only)

Easy Operation

The CA51/CA71 incorporates rotary switches for simple handling. Just open the cover of carrying case and connect the cables, and you are ready to take measurement.

Specification

item	value
Warranty	12 months
Customized support	OEM, ODM
Place of Origin	Japan
Brand Name	Yokogawa
Product name	Multifunction Calibrator
Output signal	4...20mA
Display	Segment LCD
Operating temperature	0 to 50 °C
Storage temperature	-20 to 50 °C
Humidity	90% RH or less
Weight	730 g (including batteries)
Dimensions (L x W x H in mm)	190 * 120 * 55
Feature	Portable Hand-held
