| Categories | CNC Wire Cut Machine |
|---|---|
| Brand Name: | D&T |
| Model Number: | DTC-SD1210K |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD 25000-49000 /PC |
| Payment Terms: | L/C, T/T, Western Union，paypal |
| Delivery Time: | 5 Set/Sets per Month |
| Packaging Details: | export standard packing /20GP container |
| Power(W): | 11kw |
| Machine type: | CNC foam cutting machine |
| Dimension(L*W*H): | L6200 x W3800 x H2800mm |
| Cutting Speed: | 10m/min |
| Voltage: | 380V 50HZ, 380V/50HZ |
| Weight: | 2200kg |
| Colour: | customize |
| Company Info. |
| Fuyang D&T Industry Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Technical Specifications
| Model | DTC-F1210K | |
| Max. Block Size | 2500*2000*1200mm | |
| Control Device | Industrial Computer | |
| Computer Operation System | Windows7 | |
| Software | D&T Profiler | |
| Acceptable File Formats | DXF/DWG | |
| Number of Cutting Wire | Dual Wire (Horizonal +Vertical) | |
| Cutting Wire Length | ~8500mm (Should be confirmed by maker by machine) | |
| Cutting Wire Diameter | 0.8~2.0mm | |
| Flying Wheel Diameter | 400mm | |
| Mainly Motor | ABB, 3kW*2pcs | |
| Running Speed of the wheel | 2860rpm | |
| Inverter | Panasonic, for 3kW motor | |
| Cutting Speed | 0~10m/min | |
| Precision | ±0.5mm | |
| Total Power | 11kW, 400/240V, 50Hz | |
| Gross Weight | 2800kg | |
| Overall Dimension | L6200 x W3800 x H2800mm | |
1.Applicable to: flexible and rigid PU, EPS, PE, PVC, EVA, rock wool, phenolic foam.

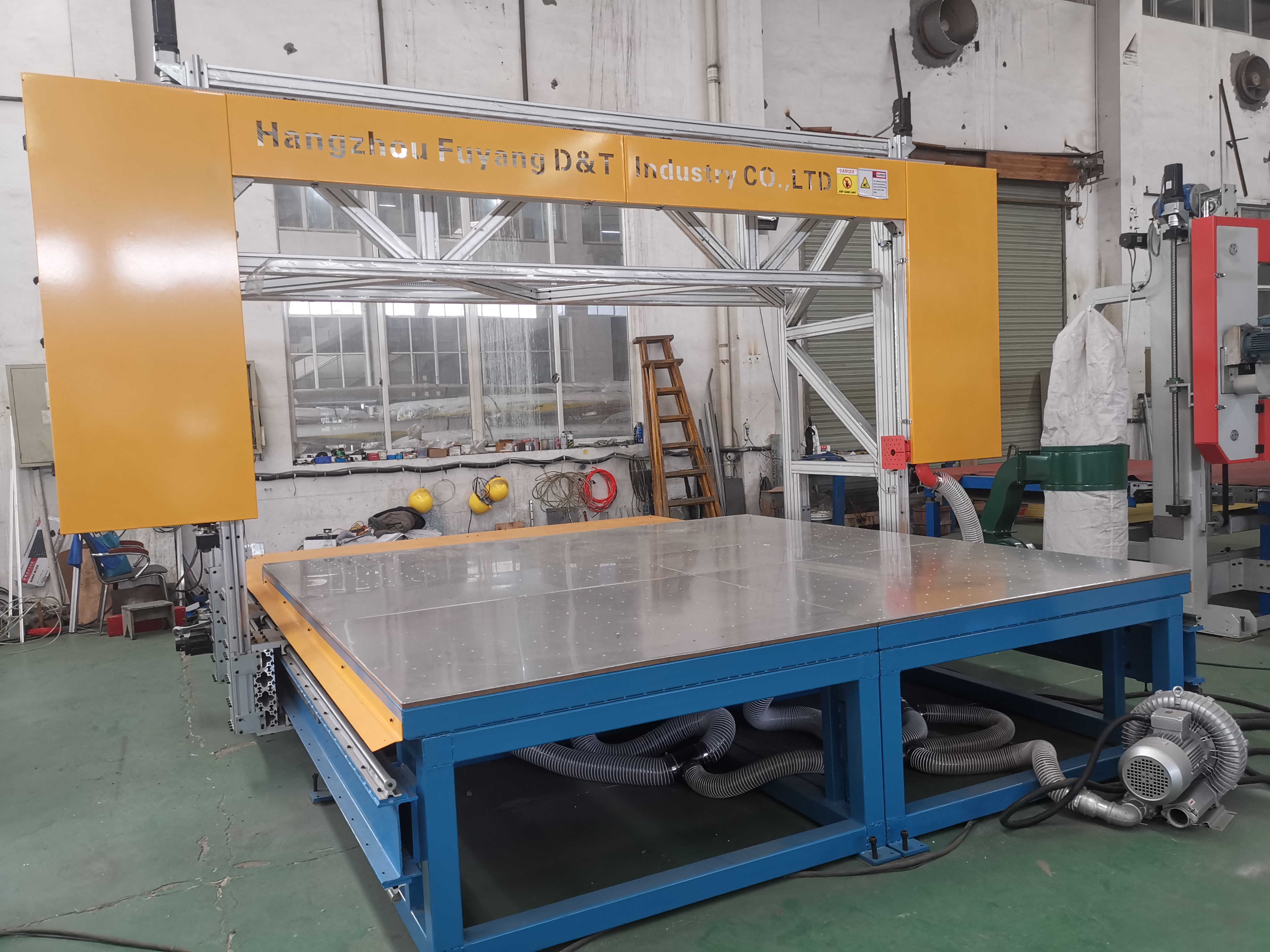

Advantages of high-speed wire contour cutter
1. The new one has a fixed working table, which prevents the
product from moving slightly when the machine is started, and moves
the portal frame to cut the product, thus improving the cutting
accuracy
2. The cutting speed is increased by 10m/min, and the old model is
0-3m/min, so the new model has 3 times the efficiency of the old
model.
3. Cutting tolerance is controlled within ±0.3 to 0.5/-0. 3 to 0.5
mm, conventional products ±0.5 to 1/0.5 to 1 mm, greatly improved
accuracy.
4. The newly developed high-speed wire contour cutter adopts a
servo motor instead of the step motor of the old model, further
improving accuracy.
|
