ODM Automatic Capping Machine For 25L Syrup Sugar Barrel Rinsing Filling

Categories Automatic Capping Machine
Brand Name: YIMU
Model Number: CM100
Certification: CE, TUV, SGS
Place of Origin: Shanghai
MOQ: 1set
Price: negotiable
Payment Terms: T/T, L/C, D/P
Supply Ability: 40 set/month
Delivery Time: 13-16 working days
Packaging Details: wooden case, L1650*W760*H1680mm, 400KG
Name: Auto Big Drum Oil Barrel 25L Syrup Sugar Inside Plug Outside Cap Sealing Machine
Keyword: capping machine
Material: SS316+304SUS
Warranty: 3 years
Application: Cosmetics, Medical, Food, Chemical
After sales service: spare parts and online video support
Driven type: Pneumatic
Power: 1 KW
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ODM Automatic Capping Machine For 25L Syrup Sugar Barrel Rinsing Filling

Auto Big Drum Oil Barrel 25L Syrup Sugar Inside Plug Outside Cap Sealing Machine


Product Introduction

Automatic unscrambling and fetching lid single head capping machine is protective automatic capping machine and control by PLC program. Bottles will be fixed by two cylinders and it can automatically arrange lid , taking lid and sending lid,it will first grasp lid then capping under control of double-acting cylinder lifting stroke. The machine grasp lids through pneumatic type, lid-revolving head has a clutch to ensure the tightened lid not to damage.


Product Application

It suits for capping of 1-30kg drum and plastic large diameter caps.


For examples:

Pesticide bucket capping machine, Liquid chemical fertilizer bucket capping filling machine, Automobile urea bucket capping machine, Antifreeze bucket capping machine, Motor oil bucket capping machine, Lubricant barrel capping machine, medical alcohol barrel capping machine, etc.


Technical parameter:


Capping capacity
0-1000bottles/hour according to bottle and lid sizes
Applicable cap diameter
20-70mm customized according to caps
Suitable bottle diameter
customized according to bottle sample
Suitable for bottle height
customized according to bottle sample
Total Power
2.5kw
Power supply
AC380V/220V/110V, Single phase or three phased, globally customized
Air supply
0.5-0.7Mpa

Sample:

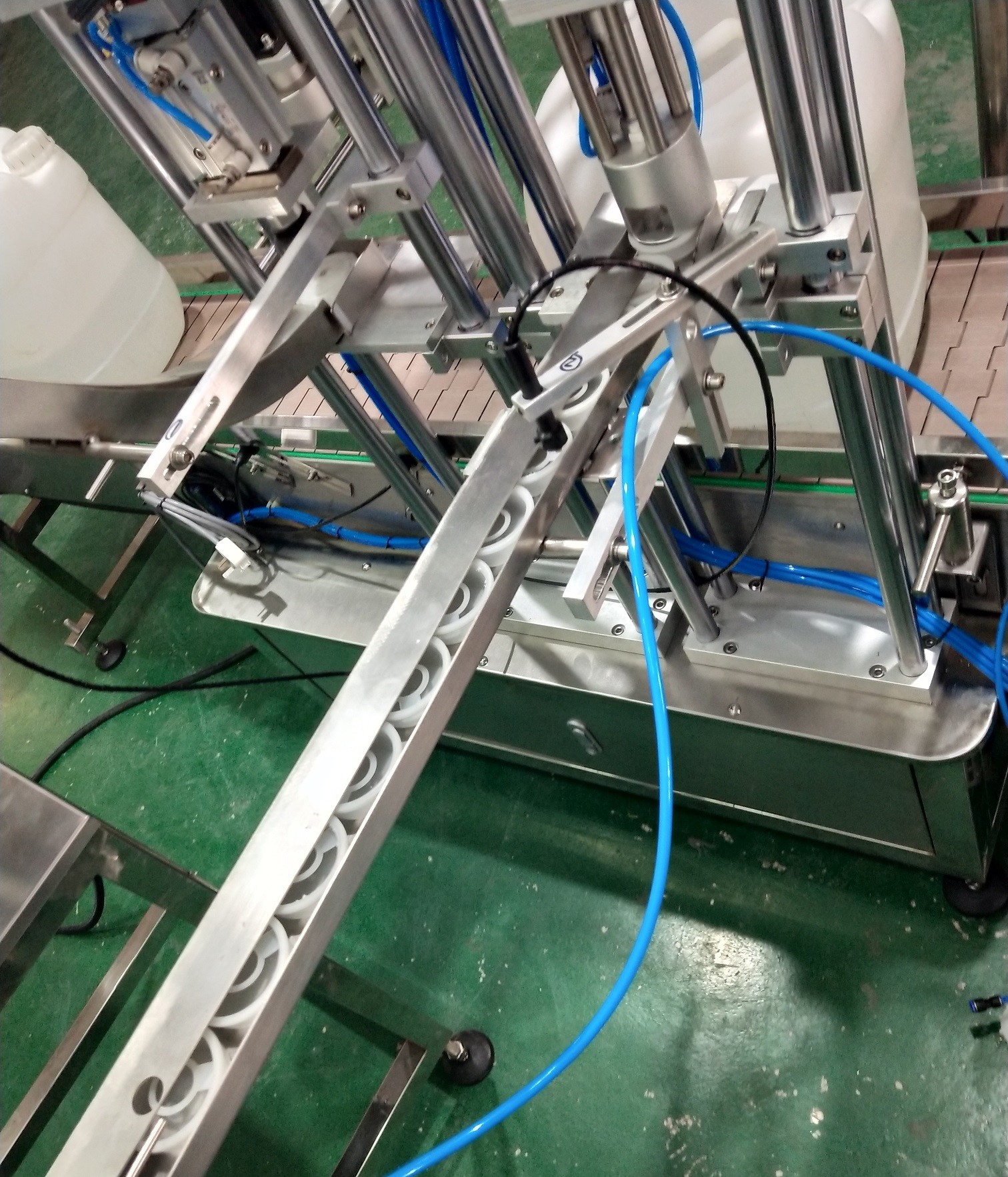

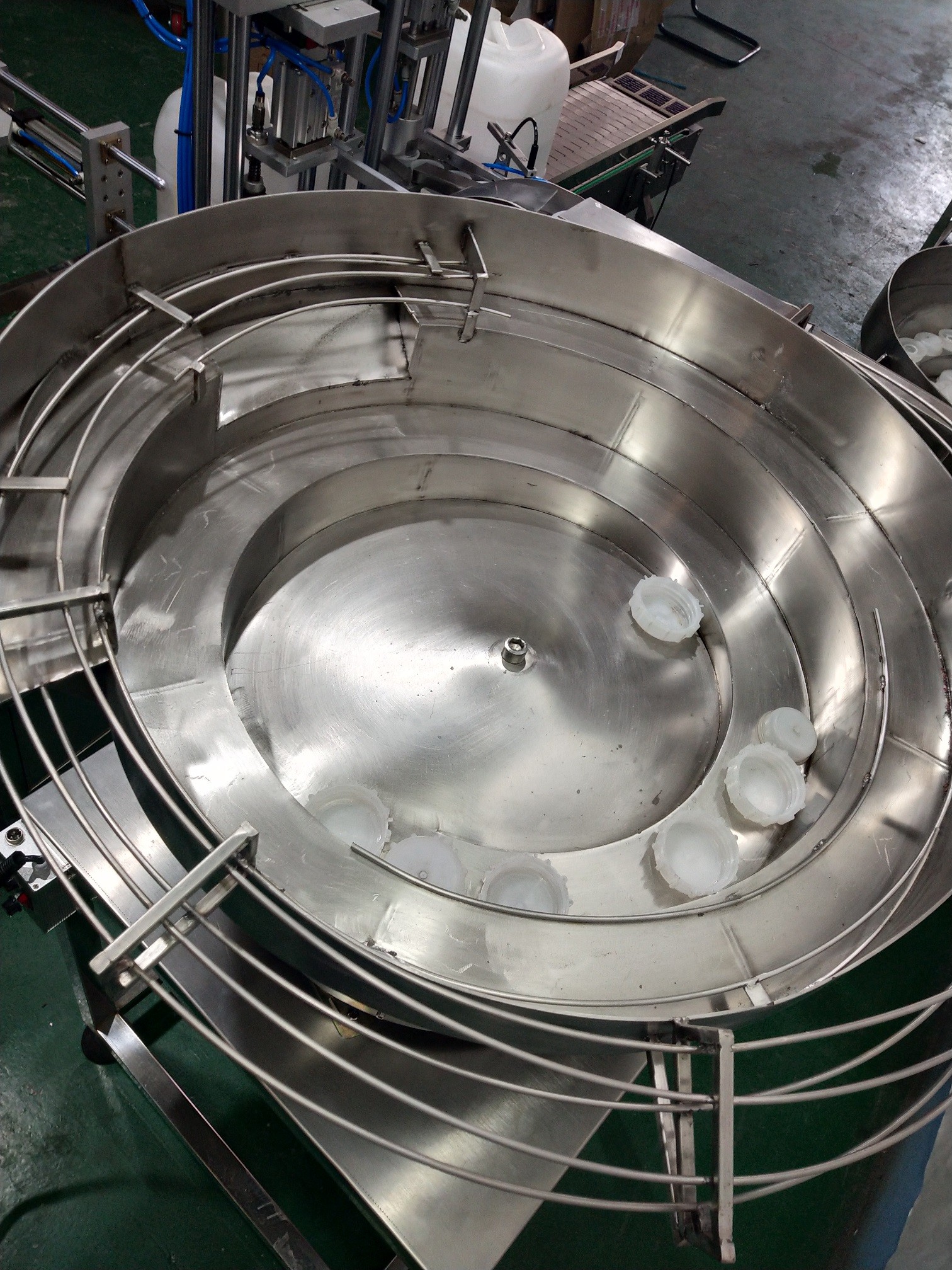

Cap vibrating disk:Cap chute:

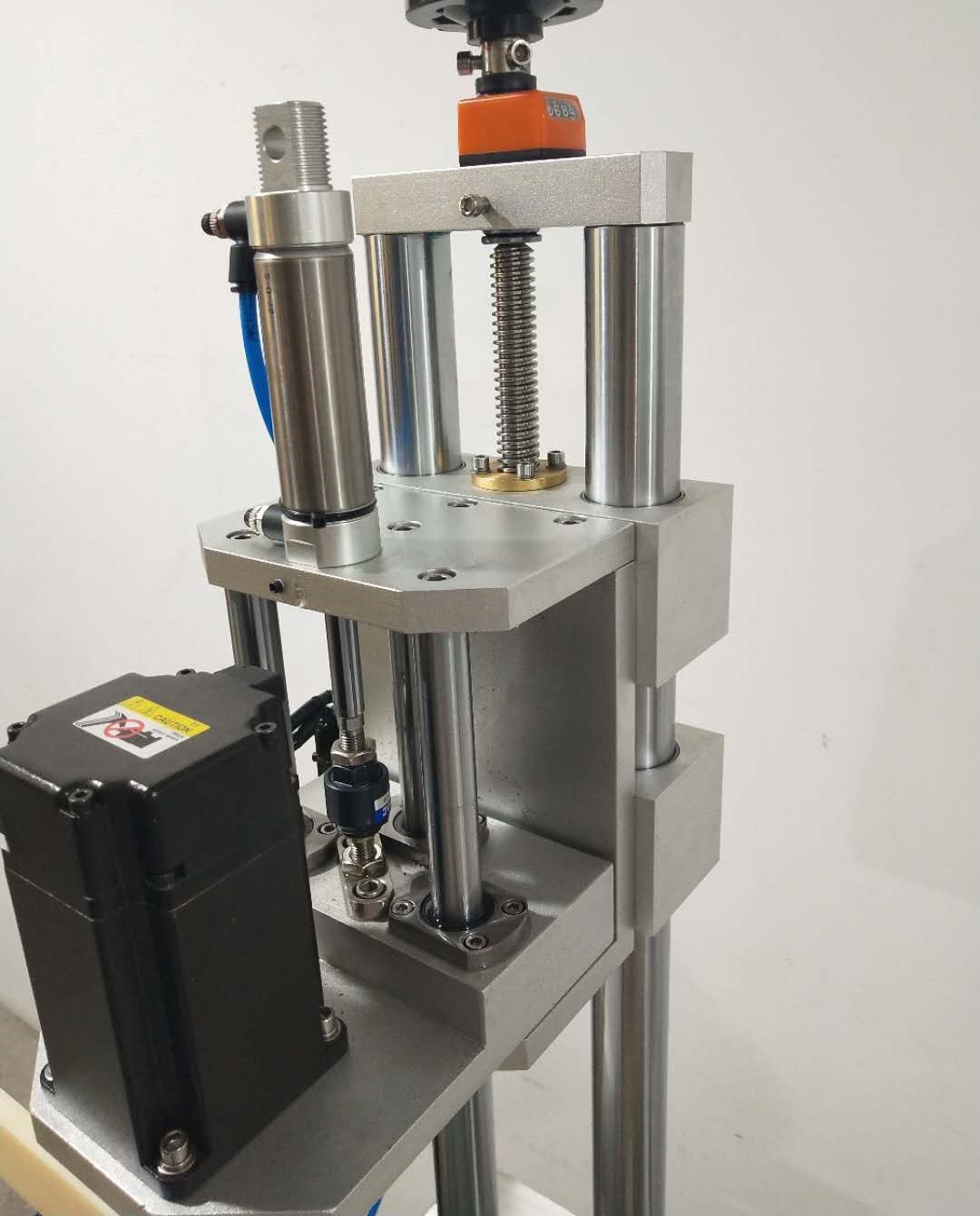

Capping headCapping motor:
