SF6 Gas Leak Detection Camera Infrared Thermal Imaging Night Vision Devices

Categories Thermal Imaging Night Vision Devices
Brand Name: OEM/ODM
Model Number: SF6
Certification: CE,FC,ROHS,EMC,ISO9001
Place of Origin: CHINA
Type: SF6 thermal Night Vision Devices
Resolution: 320*256
Spectrum range: 10.3 - 10.7μm
Lens:: Standard: 24° X 19° / Optional: 14.5°X 11.6°
Focus: Auto&Manual
Size: 305mm * 172mm * 145mm
Weight: ≤2.8 kg
Temperature range: -40℃~+350℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SF6 Gas Leak Detection Camera Infrared Thermal Imaging Night Vision Devices

Hot Sell SF6 Gas Leak Detection Camera Digital Infrared Thermal Camera

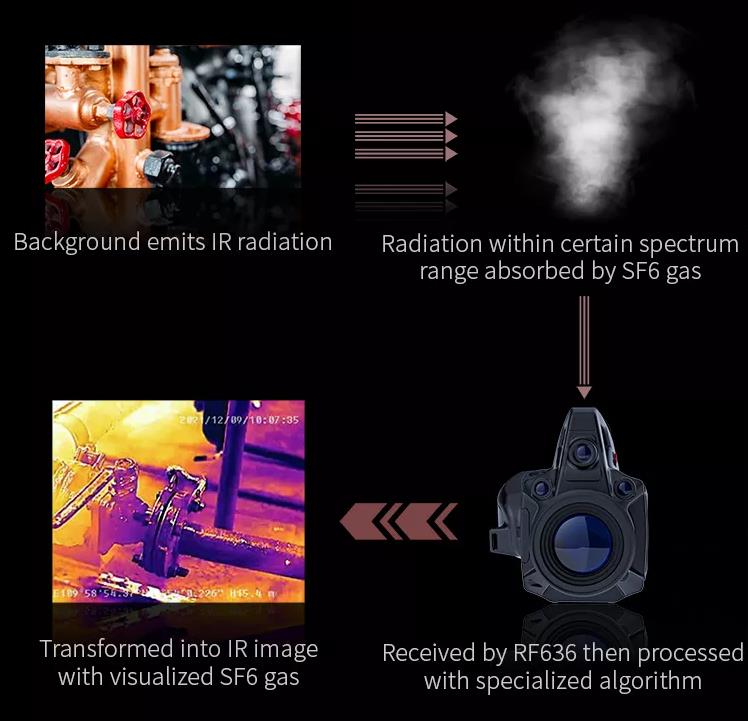

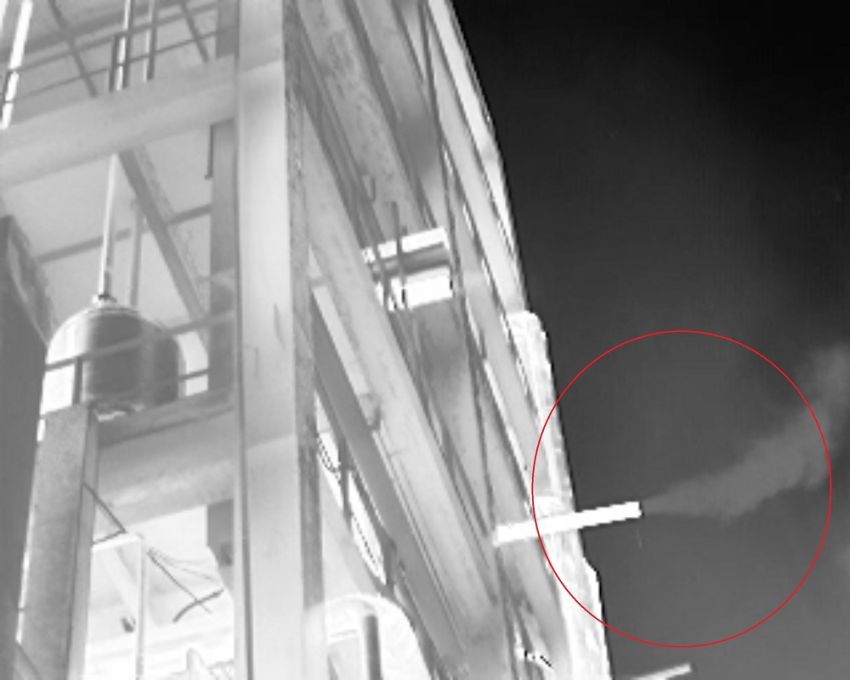

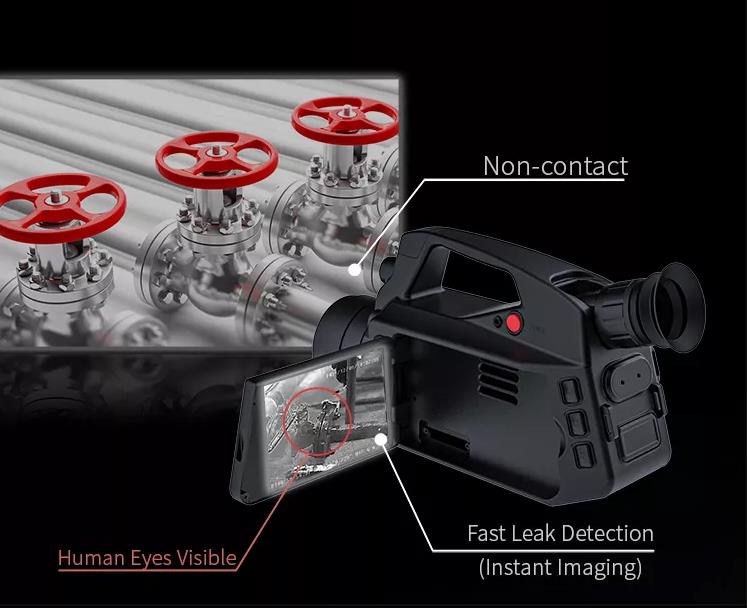

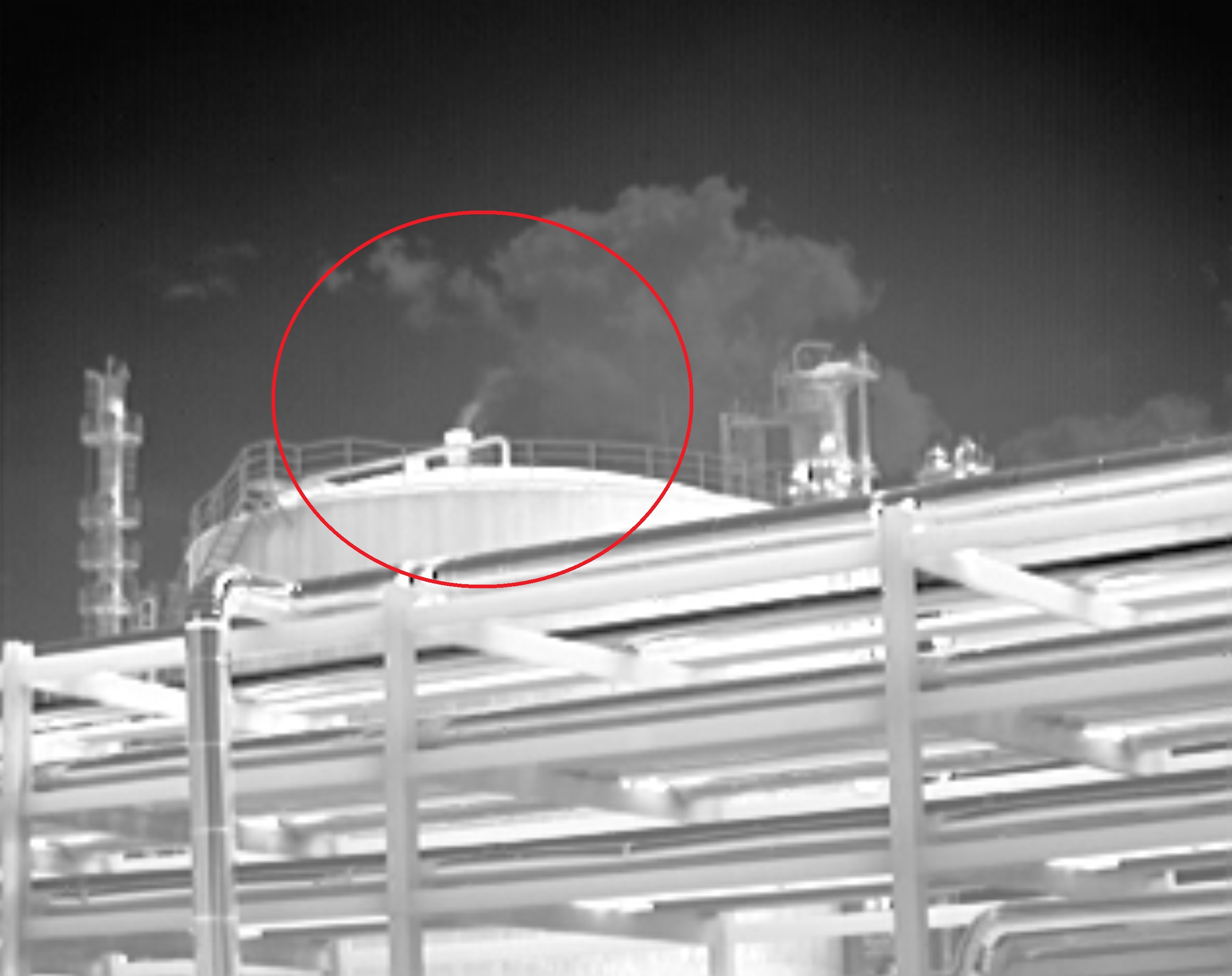

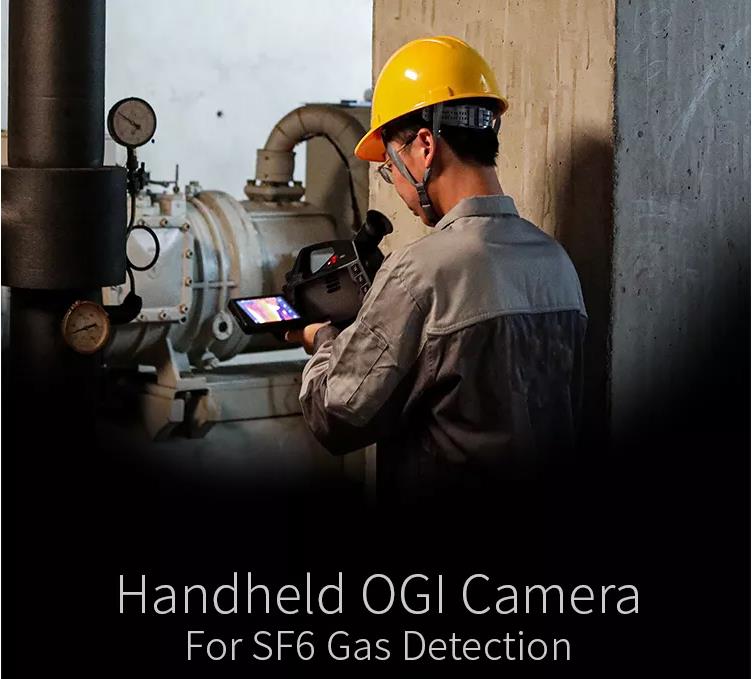

RF636 OGI camera can visualize SF6 and other gases leakage in a safety distance, which enables quick inspection in the large scale. The camera can be applicable in the field of electric power industry, by catching leakage early to reduce financial loss caused by repairs and breakdowns.


Our entire line of products is rigorously tested and has the backing of the CE, FC, and other international certifications. Hence, we confidently vouch for the quality of our outstanding products. The bottom line is that we believe in quality and not quantity. We always make it a point to uphold the highest standards possible and offer premium-grade OEM and ODM customized services for all our products.


parameter:


Detector and lens
Resolution
320×256
Detector pitch
30μm
Thermal sensitivity
≤25mK@25℃
Spectrum range
10.3 - 10.7μm
Lens
Standard: 24° × 19° / Optional: 14.5°× 11.6°
Focus
Auto&Manual
Image display
Display
5”Touch LCD,1024×600 Pixels
Viewfinder
0.39”OLED,1024×600 Pixels
Visual camera
CMOS,Auto focus,One bright LED lamp
Color palettes
10+1 customization
Zoom
1–10×continuous, Digital zoom
Image adjustment
Auto/Manual
Gas enhancement
High sensitivity mode

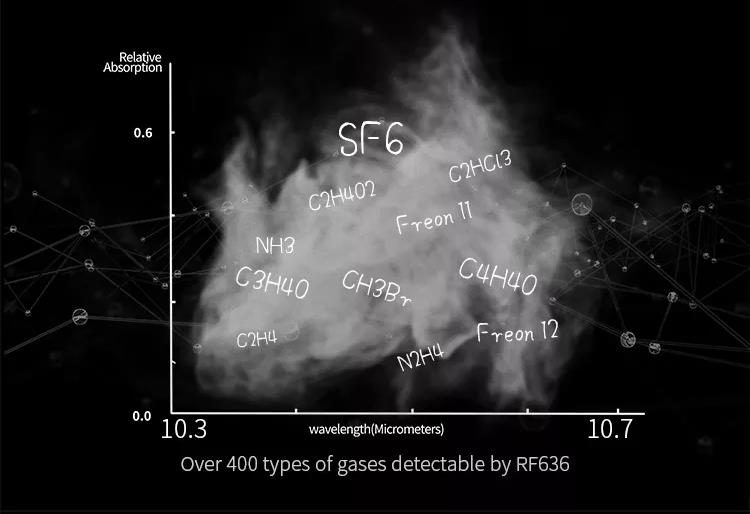

Detects following gases
Sulfur Hexafluoride (SF6) , Ammonia (NH3), Ethylene, Acetic Acid, Allyl Bromide, Acetyl Chloride, Allyl Bromide, Allyl Chloride,
Allyl Fluoride, Bromomethane, Chlorine Dioxide, Ethyl Cyanoacrylate, Furan, Hydrazine, Methylsilane, Methyl Ethyl Ketone, Methyl
Vinyl Ketone, Propenal, Trichloroethylene,
Tetrahydrofuran, Uranyl Fluoride, Vinyl Chloride, Vinyl Cyanide, Vinyl Ether, Freon 11, Freon 12 and so on.
Temperature measurement
Temperature range
-40℃~+350℃
Temperature accuracy
±2℃ or ±2%
Isotherm
Yes
Alarm
Yes
Emissivity correction
Variable from 0.01 to 1.0
Measurement corrections
Reflected temperature,
distance,atmospheric transmission,
humidity, external optics
Storage of images
Image format
JEPG
Video format
H.264
Voice annotation
60 seconds voice
Storage media
32G Removable TF memory
card, extension available
Interface
Video out
HDMI
Digital interface
USB and WLAN,Data transfer to PC
Others
Setup
Day/Time/Language
Laser pointer
Class 2, Semiconductor
diode laser, 1 mW, 635nm (red)
Battery
Rechargeable Li-ion battery,
operating time≥3 hours
Start-up time
Typically 7min
Environmental data
Operating temperature range
-20℃~+40℃
Storage temperature range
-30℃~+60℃
Encapsulation
IP54
Physical data
Camera weight
≤2.8kg
Camera size (L×W ×H)
305×172×145mm
Tripod mounting
UNC ¼"-20
