| Categories | Insulated Wire Terminals |
|---|---|
| Brand Name: | YOKG |
| Model Number: | LSV, LSVS, LSVL |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 10000PCS |
| Price: | Negotiable |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 100000pcs per Month |
| Delivery Time: | 15days or Depends on ordering QTYS |
| Packaging Details: | Standard export packing or According to customer's demand |
| Product Name: | Insulated lock spade terminal |
| Wire Range: | 0.5-1.5m㎡,1.5-2.5m㎡,4-6m㎡ |
| Current: | Imax=19A 27A 48A |
| Surface: | Plating Tin |
| Material: | PVC,Copper |
| A.W.G: | 22-16,16-14,12-10 |
| Company Info. |
| YueQing ZEYI Electrical Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

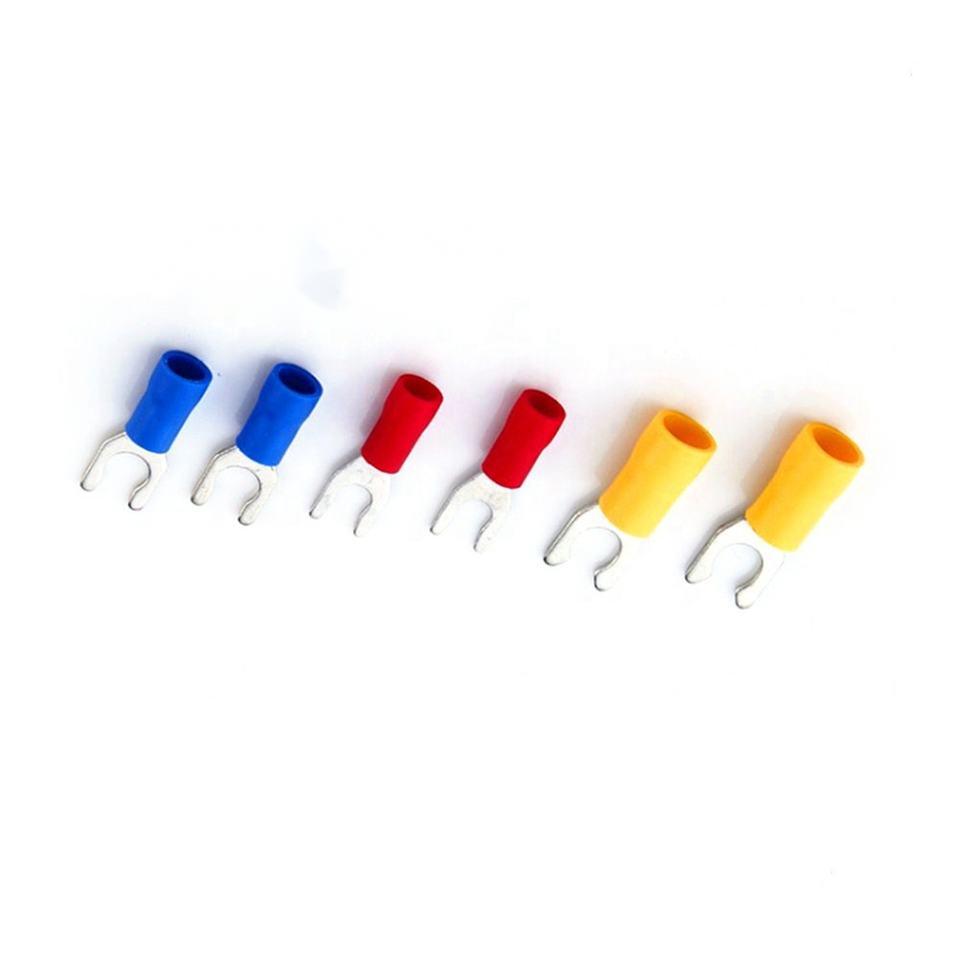

Customized Insulated Lock Spade Terminal LSV,LSVL,LSVS Copper Fork Lock Type
Product Name | SPLICE,Lug ,Crimp/Spade Terminal |
Working Temperature | -40 to 105°C |
Material | Copper/PVC/Brass |
Color | Red/Blue/Yellow |
Product Type | Terminal |
Wire range: 0.5-1.5 ㎟, AWG:22-16, Imax=19A

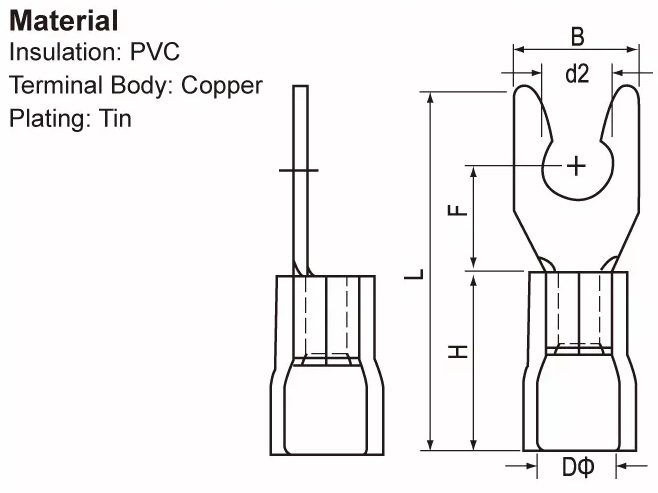

| Item No. | Stud size | Dimension (mm) | Color | |||||
| d2 | B | L | F | H | D∅ | |||
| LSV1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| LSVS1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
| LSVL1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| LSVS1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| LSVL1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
Wire range: 1.5-2.5 ㎟, AWG:16-14, Imax=27A
| Item No. | Stud size | Dimension (mm) | Color | |||||
| d2 | B | L | F | H | D∅ | |||
| LSV2-3.5 | #6 | 3.7 | 6.0 | 21.2 | 6.5 | 10.0 | 4.9 | Blue |
| LSVS2-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
| LSVL2-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| LSVS2-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| LSVL2-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
Wire range: 4-6 ㎟, AWG:12-10, Imax=48A
| Item No. | Stud size | Dimension (mm) | Color | |||||
| d2 | B | L | F | H | D∅ | |||
| LSV5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 13.0 | 6.7 | Yellow |
| LSV5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | |||
| LSV5.5-5 | #10 | 5.3 | 9.0 | 25.2 | 7.5 | |||
| LSV5.5-6 | 1/4 | 6.4 | 12.0 | 31.2 | 12.0 | |||
FAQ:
1. Are you factory or trading company?
Yes,we are manufacturer in Wenzhou,China. We can give you the
competitive price & after sale service.
2. Can we print our logo/website/company name on products?
We can print the informations as customers' authorization.
3. What's the lead time for regular order?
7-15 days as order quantity
4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. Could you change the size for customer?
Yes, the sizes can be customized, for more details, please contact
us freely.
6.What is MOQ?
No limit.
7. Which shipping method do you provide?
For samples or small orders, goods will be sent by express.
For regular orders, goods can be sent by air or by sea, just
according to your demand.
|
