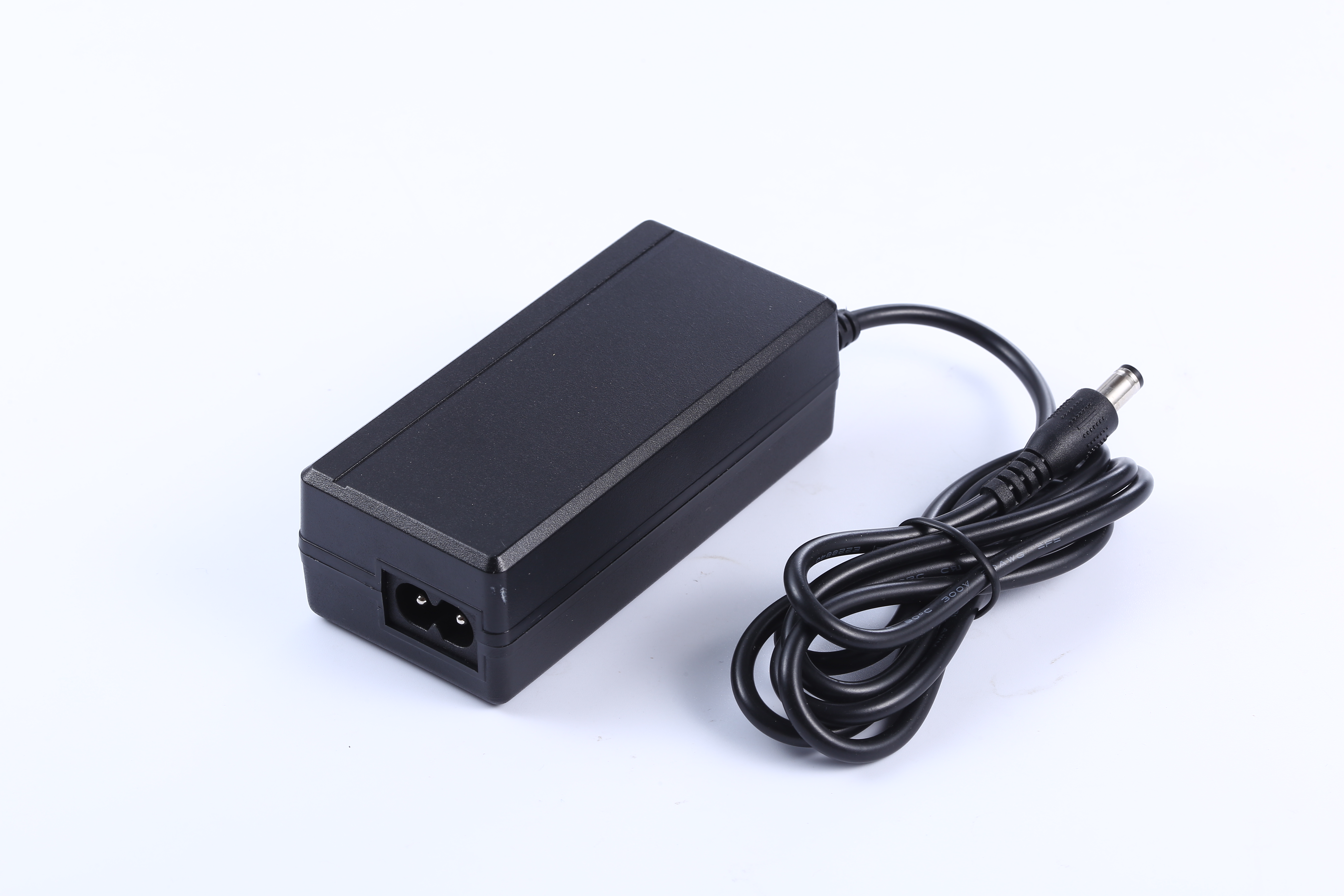

12V 800ma 9 Volt AC DC Adapter 36W 6V 12V AU EU UK US CN KR Plugs

36W Ac Dc Adapter 6v 12v Dc To Ac Adapter Ac Dc Adapter 12v 800ma Ac Dc 9 Volt Adapter

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v AU US UK EU CN JP KR Plugs v EFFICIENCY VI v 30-36 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			Multi-blade Type v UL,FCC v CB,CE,UKCA v SAA,PSE,CCC,KC,BIS,BSMI v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	ICP36-050-5000		5V	5000mA	90mV		L 6.0
	ICP36-090-3000		9V	3000mA	90mV		L 6.0
	ICP36-120-3000		12V	3000mA	120mV		L 6.0
	ICP36-150-2400		15V	2400mA	120mV		L 6.0
	ICP36-180-2000		18V	2000mA	150mV		L 6.0
	ICP36-240-1500		24V	1500mA	150mV		L 6.0
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.2A Max		Standby Power		0.30W MAX
Inrush Current		40.0A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5V-36.0V		Operating Temperature		10°C~40°C
Output Current Range		100mA-5000mA		Cooling		Convection
Output Power Range		36.0W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		97.6mm *45.6mm *32.6mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

Certification

Shipping

FQA:

Q: How do I place an order?
A: Please click “Contact Supplier” or “Chat Now” bar. Our sales representative will assist you with the purchasing.

Q: How do I make the payment?
A: The payment can be made in the form of credit card and T/T.

Q: When overload / overcurrent / over voltage / over temperature protection circuit is triggered, how to restore the output?
A: Most of Our products will automatically restart after conditions of overload, overcurrent, and over temperature are
removed.

Q: What is the difference between Class I and Class II ?
A: Class I: Using basic insulation between primary and secondary, for against an electrical shock from dangerous voltage.
Class II: Using double insulation or reinforced insulation between primary and secondary, for against an electrical shock from dangerous voltage.

Q: What are MOOP and MOPP?
A: MOOP: Means Of Operator Protection - insulation protection for operators.
MOPP: Means Of Patient Protection - insulation protection for patients.

Q: What is the difference between DoE-VI and CoC v5 tier 2?
A: Regarding the no-load power consumption, CoC v5 tier 2 is demanded much stricter than DoE-Level VI, and DoE-Level VI
hasrequirements for multiple output voltage.
Regarding the efficiency, CoC v5 tier 2 is demanded much stricter than DoE-Level VI, and DoE-Level VI has requirements for multiple output voltage.
