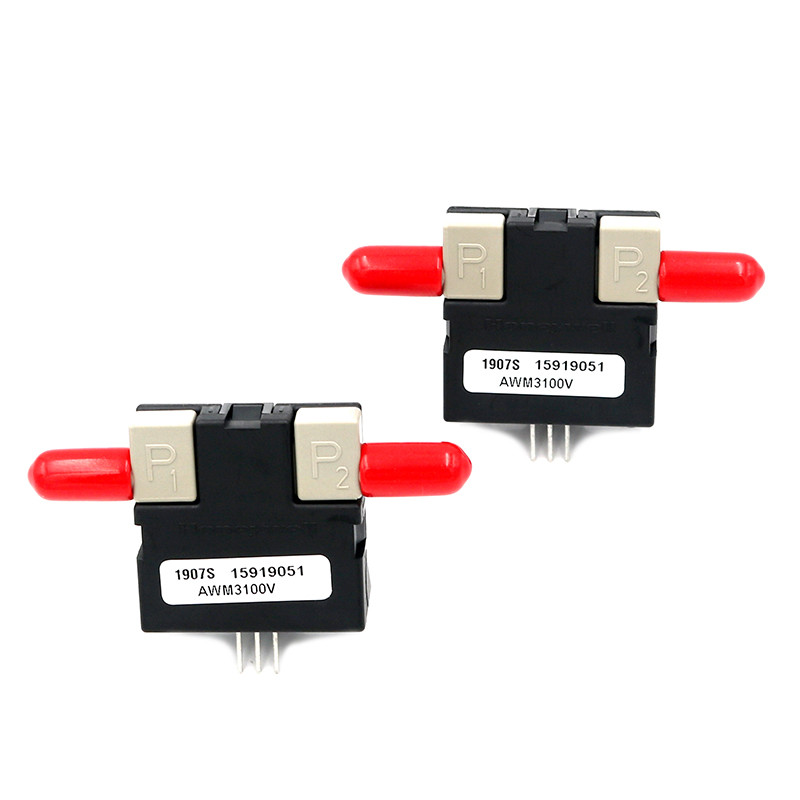

AWM3100V Gas Flow Sensor 200 SCCM Straight For Medical Devices

Product Description:

AWM3300V Flow Sensor 1.0 SLPM Straight 1000 SCCM

Features:

The environmental monitoring

Gas flow measurement

Gas content analysis

ventilator / respirator

The mist mechanism

Product technical specifications parameters:

Series name AWM3000

Flow/pressure range + 200 SLPM

Zero ±25.0 mV DC over the entire temperature range

Repeatability ±0.50% of readings

The typical value of response time is 1 ms, and the large value is 3 ms

The interface type is straight

The typical power consumption is 50 mW, and the large power consumption is 60 mW

Compensation temperature range -25°C to 85°C [-13°F to 185°F]

Medium compatibility only dry gas

Shock 100g peak (5 drops, 6 axes)

UNSPSC code 41111931

Signal regulation amplification

The output voltage of the adjustment point is 200 SCCM, 5.0 Vdc

Output temperature drift ±4% full scale

Zero 1 Vdc ±0.05 Vdc

The power supply voltage is 8.0 Vdc for a small value, 10.0 Vdc for a typical value and 15.0 Vdc for a large value

Common-mode pressure 25 psi

Operating temperature -25°C to 85°C [-13°F to 185°F]

Storage temperature -40°C to 90°C [-40°F to 194°F]

The weight of 10.8 g

Supply of goods

UNSPSC commodity 41111931 flow sensor

Specifications:

Yijiajie Electronics is a full range of silicon pressure sensors from the United States, FREESCALE/, GE, MEAS, SMI, and a full range of sensing and control products from the United States pressure, temperature and humidity, gas flow, current, Hall effect, etc., Japan HAMAMATSU flame, UV sensors, photodiodes, Japan FIGARO, UK CITY, ALPHASENSE full range of semiconductors, catalytic, electrochemical gas sensors, French HUMIREL/MEAS humidity sensors and other international well-known companies authorized agents or distributors, to provide customers with product information, products Solutions, product selection, supply guarantee and logistics services, etc.
