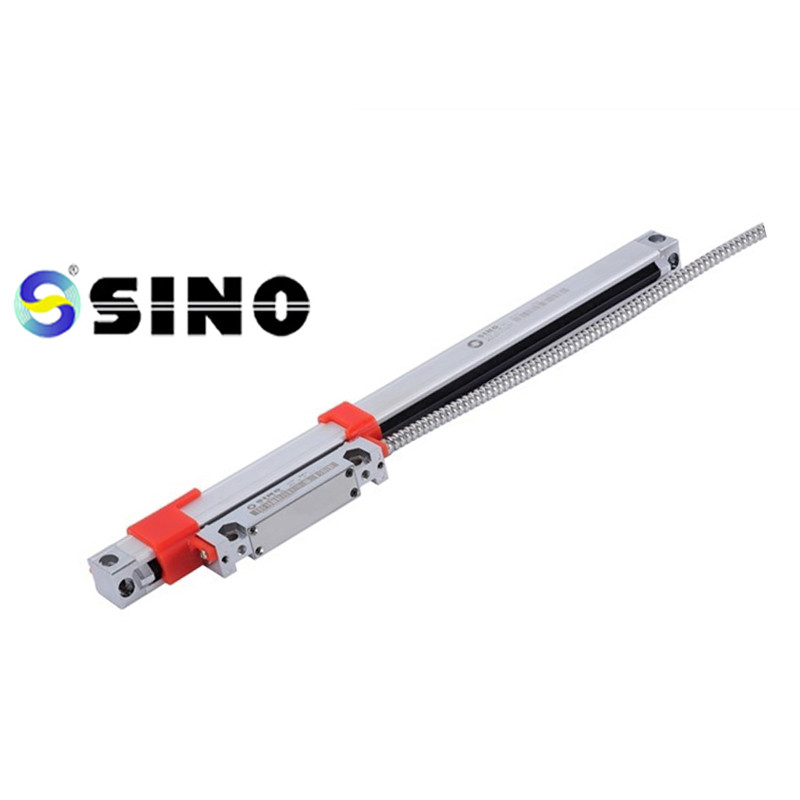

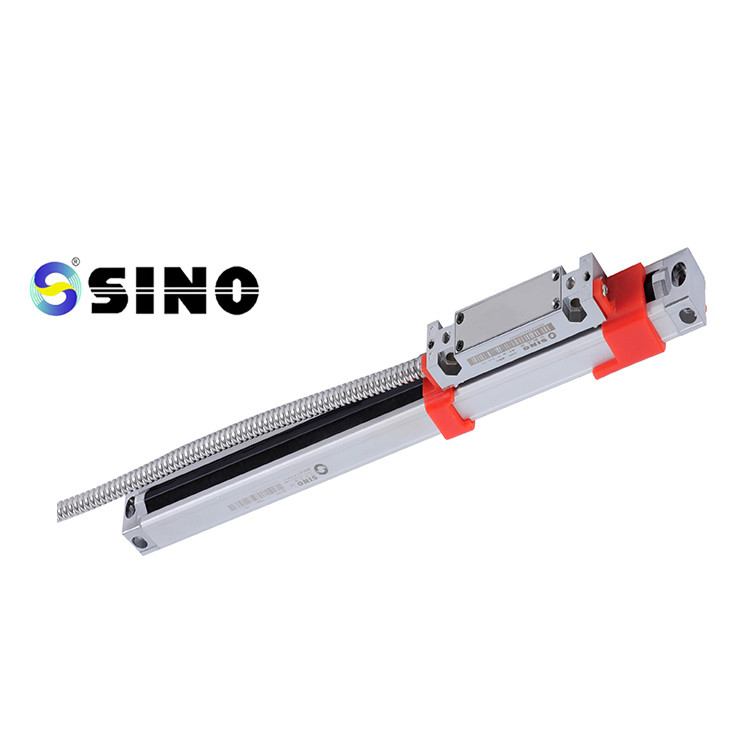

Sino Ka200 Glass Linear Scale IP53 For Milling Lathe DRO Digital Readout System CNC Machine

Ka-200 is a small encoder designed based on ka-500, which is smaller than ka-500. Optimize internal and external structures. Applicable to the following equipment:
Installation is limited and the space is smaller. Length 30-360mm

warn:

To avoid electric shock or fire, the equipment connected to the encoder should be properly stored
Avoid moisture or direct contact with coolant. The encoder is a kind of precision measuring instrument. To ensure normal function, please do not
Expose it to external shock or vibration.
To prevent the encoder from being misaligned and avoid electric shock, do not open any seals
On the encoder. There are no user-serviceable parts. Please request authorization
Technicians perform repairs

1. Technical Parameter

1.1 Scaling distance: 0.02 mm (50lines /mm)

1.2 Resolution: 5µm,1µm,0.5µm 1.3 Precision: ±3µm,±5µm,±15µm/m (20±0.1℃)

1.4 Measuring range: 30~3000mm

1.5 Moving speed: High-speed encoder 120 m/min (To be customized) Ordinary encoder 60m/min

1.6 Power supply: +5V±5%,80mA

1.7 Cable length: Standard 3m (Special length available according to the user’s needs)

1.8 Working Temperature: 0~45

Package included:
KA200 Linear Ruler x 1pc
0.5/1/5 μm Resolution Available.
Customized lengths of the encoder (L0) can be provided according to the users' needs.(Length:70-170mm)

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension

Detail Information:


All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
