10 / 100 / 1000Mbps Fiber To Ethernet Industrial POE Switch With 1 SFP Slot

10/100/1000Mbps Fiber to Ethernet 8 Port Web Management Industrial POE Switch with 1 SFP Slot

Introduction of Management Industrial POE Switch

IM-FP188GW series is the 10/100/1000 Mbps 8 Port Web Management Industrial POE Switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 75 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features of Management Industrial POE Switch

1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.

2. IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports

3. 8 x 10/100/1000Mbps Auto-sensing RJ45 ports

4. 1 x 1000Mbps SFP fiber port

5. 6KV Ethernet surge protection, adapt to a harsh outdoor environment
6. Support Auto MDI/MDIX
7. Flow control mode: full duplex with IEEE 802.3x standard,half-duplex with Back pressure standard
8. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
9. A store-and-forward switching mechanism
10. Operating environment temperature:-40 ° ~75 ° c

Spectification of Management Industrial POE Switch

Industry Standards of Management Industrial POE Switch

• EMI:FCC Part 15 Subpart B Class A, EN 55022 Class A
• EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8;
• Traffic Control: NEMA-TS2;
• Vibration:IEC 60068-2-6;
• Freefall:IEC 60068-2-32;
• Shock:IEC 60068-2-27;
• Rail Traffic: EN 50121-4

Managed Function of Management Industrial POE Switch

1. Support cable diagnosis and can locate the fault point
2. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption

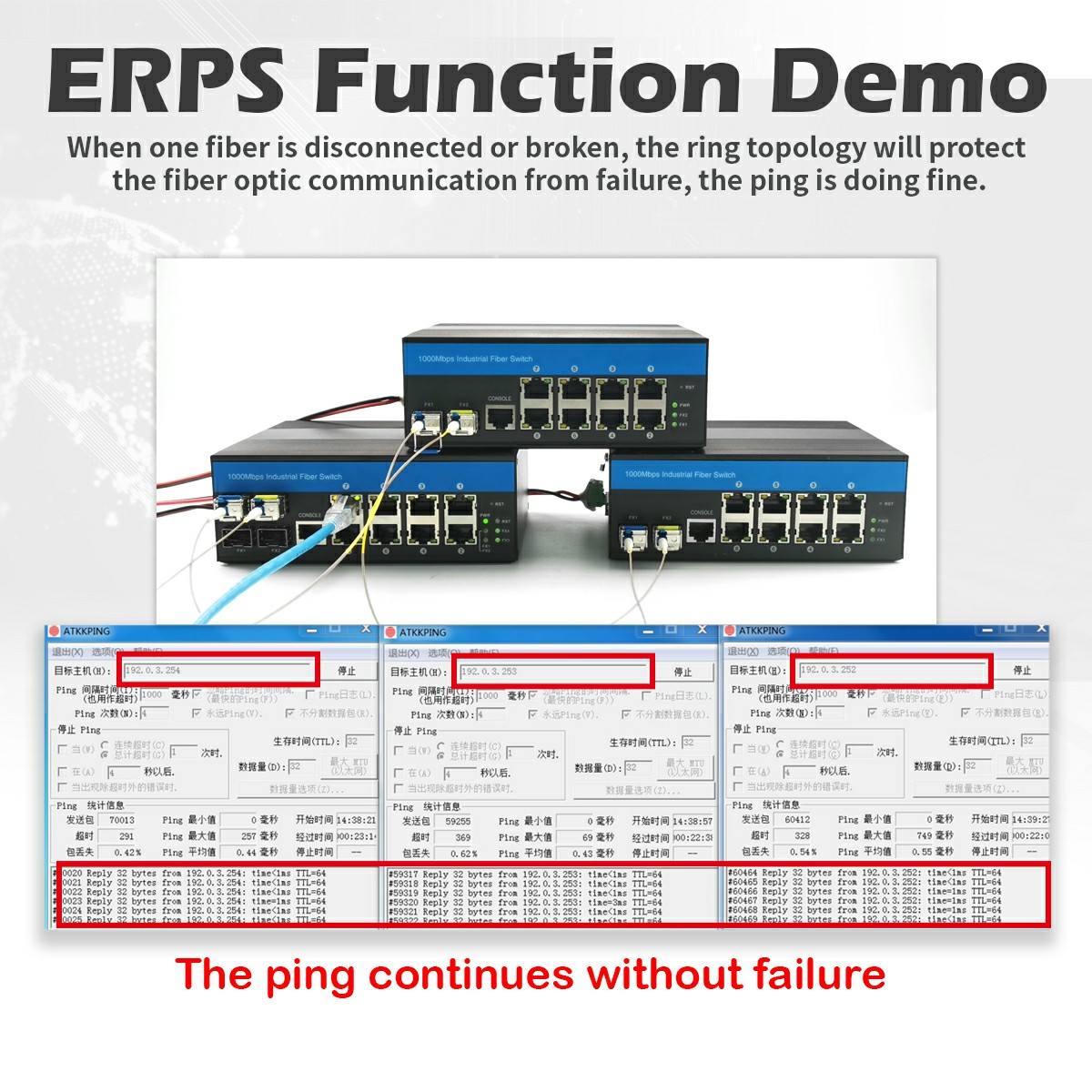

3. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
4. Support Qos, transport classification Qos, Cos, bandwidth control
5. (input/output direction), storm suppression , differentiated services
6. Support IEEE802.1q VLAN, VLAN port , based Mac VLAN, IP subnet VLAN,
7. Protocol VLAN,VLAN convert, MVR
8. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
9. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
10. Support IGMP agent report, MLD snooping
11. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
12. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
13. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
14. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
15. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
16. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.

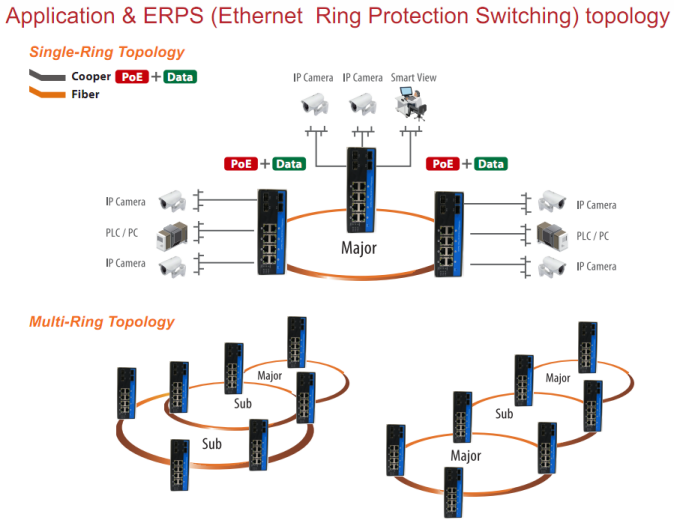

Application of Management Industrial POE Switch

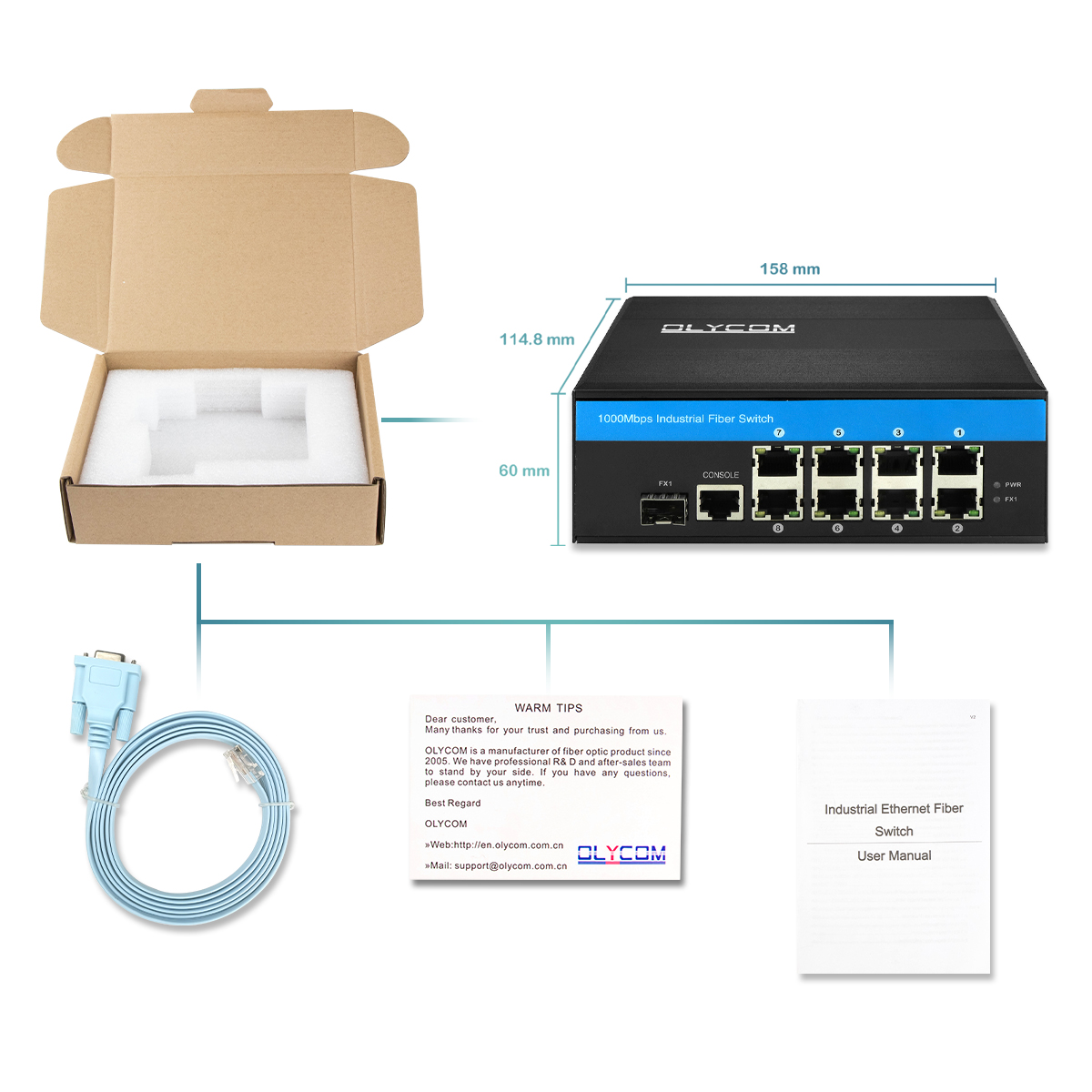

Package of Management Industrial POE Switch

1. One product, one console cable, one user manual, and one warranty card are inside one box.

2. Twenty pieces of boxes are in one carton.

FAQ of Management Industrial POE Switch

Q: Does this managed switch include the power supply?

A: No, no power adapter is included.

Q: Are you a manufacturer or trading company ?
A: We are manufacturer in Shenzhen, China, focusing on fiber optical equipments products.

Q: What are the POE standards?

A: This is an industrial POE+ switch. Each network port can reach 30W when the power supply is 48VDC 5A.

Q: Is it a managed switch?

A: Yes, this is an L2 managed POE switch for industrial networks.
