| Categories | Automatic Core Cutting Machine |
|---|---|
| Brand Name: | STT |
| Model Number: | ZZ300 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Delivery Time: | 90 days |
| Packaging Details: | seaworthy packing |
| Machine name: | transformer core cutting machines |
| Function: | making transformer center post |
| Sheet width: | 40 ~ 300mm |
| Sheet thickness: | 0.23 ~ 0.35mm |
| Feeding speed: | 180m/min |
| Motor power: | 14kw |
| Color: | customizable |
| Warranty period: | 12 months |
| Company Info. |
| Suzhou Tronsing Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Automatic Core Cutting Machine Cutting Silicon Steel To Make Transformer Core Centre Pillar
Description of automatic core cutting machine ZZ300
Automatic core cutting machine ZZ300 is a professional cutting equipment to cut silicon steel to make transformer core centre pillar. The automatic core cutting machine can be used to cut the silicon steel with maximum thickness 0.35mm and the maximum width 300mm. The core cutting machine is provided with decoiler for placing supply coil with diameter 500mm and the capacity of the decoiler is 1500kg. The feeding speed of the automatic core cutting machine is 180m/min. The total power is 14kw. The automatic core cutting machine features easy operation.
Quick details of automatic core cutting machine ZZ300
Technical parameters of automatic core cutting machine ZZ300
Typical standard specifications of automatic core cutting machine ZZ300 are shown below, however, the core cutting machine can also be manufactured as requested.
| Roll Material Width Tolerance: | ≤±0.1mm |
| Roll Material Burr Length: | ≤0.02mm |
| Sheet Thickness: | 0.2～0.35mm |
| Sheet Width: | 40～300mm |
| Sheet Length: | 150～2500mm |
| Cutting speed: | 0～180m/min |
| Motor Power: | 14Kw |

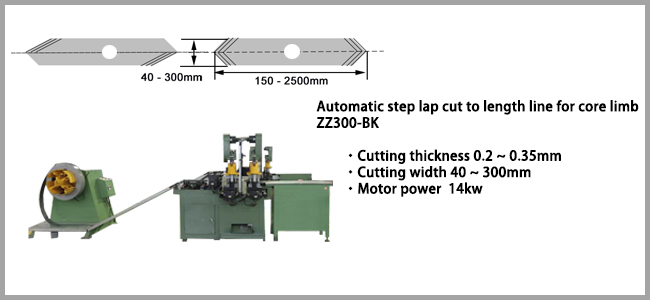

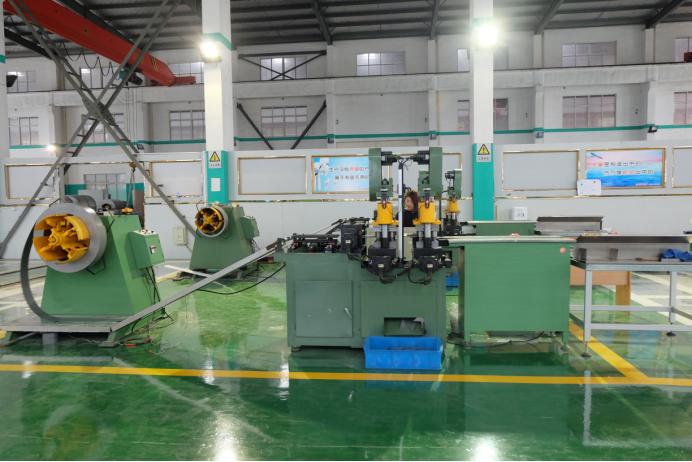

Fig 1: Automatic core cutting machine ZZ300's full view

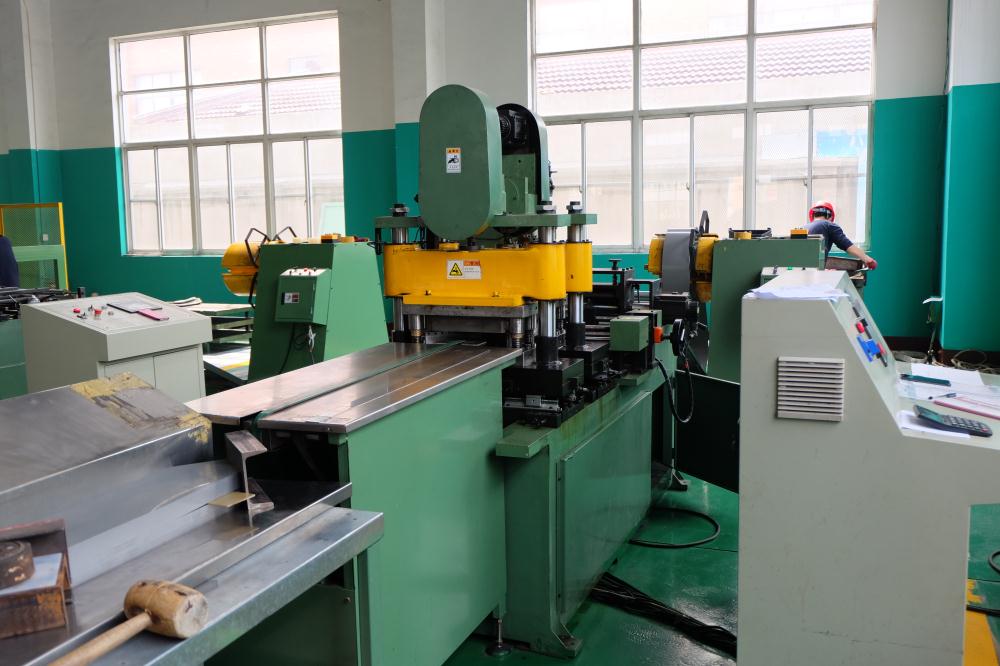

Fig 2: Automatic core cutting machine ZZ300's side view
|
