Low Cost Infrared Camera Core for Thermal Imaging System Medical Diagnosis

iHA417W thermal module is specially developed for medical diagnosis. Integrated with the self-developed wafer level packaging 384×288/17μm infrared detector by Global Sensor Technology, the iHA417W medical diagnosis thermal module has smaller size, which guarantees a lower integration cost. It helps to develop medical and health markets at all levels faster, and lets thermal imaging technology benefit the public.

With typical NETD<50mk/f1.0/25℃, and temperature uniformity ≤±0.3℃ (better than the industry average of ±0.5℃), the overall thermal imaging uniformity of iHA417W thermal imaging module is better, and its temperature measurement function is more stable.

By using thermal imaging technology, doctors can carry out 100% safe, no radiation, non-invasive, non-contact full body checkup to avoid further, unnecessary testing procedures. The heat distribution in various parts of human body can be quickly shown to early detect and diagnose physical abnormalities, so that any further treatment can be easier and more effective.

- Small Size: 25.4mm×25.4mm×30.3mm (with lens)
- Typical NETD<50mk

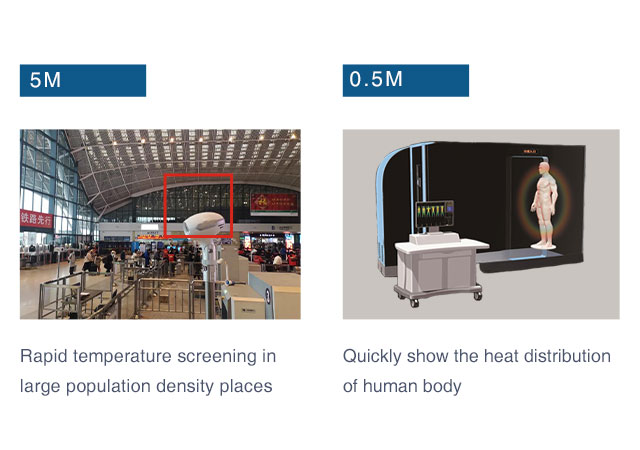

- Detect Distance: 0.5m/5m
- Light Weight as Low as 32.2g
- Superior Temperature Measurement Accuracy: ±0.5℃

The iHA417 thermal module is expected to be widely used in the fields of Disease Screening, Traditional Chinese Medicine Physiotherapy, Health Check-up, Rehabilitation etc. at present and in the future.

1. What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.

2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.

3. What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening

COMPANY INTRODUCTION

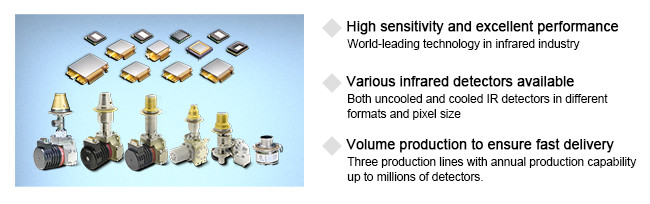

Global Sensor Technology is the world leading infrared detector manufacturer and service provider with more than 10 years of industrial experience. It is willing to provide customers all over the world with high performance cooled uncooled thermal imaging detectors, infrared camera modules and share its professional application experience.
