Home > LED Commercial & Industrial Lighting >

150W 18000LM IP65 LED Canopy Light 1-10V Regulation Anticorrosive Ambient Treatment

Categories Explosion Proof LED Light
Brand Name: A-wei lighting
Model Number: AW-YZD-A3
Certification: CE, RoHS, ETL, DCL,SAA
Place of Origin: Made in China
MOQ: 100
Price: Negotiable
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability: 5000PCS/Month.
Delivery Time: 5-7 working days for sample,10-15 working days for mass production orders
Packaging Details: 1pc/carton
Product Name: 150 watt Led Canopy Light AW-YZD-A3
Material: Die-casting Aluminum
Input voltage(v): AC85-265V
Ip rating: IP65
Power: 100W 150W
Working Life: >50000hrs
Color temperature(cct): 3000K-6500K
Wrranty: 5 years
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

150W 18000LM IP65 LED Canopy Light 1-10V Regulation Anticorrosive Ambient Treatment


150W 18000LM IP65 LED Canopy Light 1-10V Regulation Anticorrosive Ambient Treatment


Description:


  • Standard: IP66 & IK10
    Body material: Aluminum
    Type Aluminium: A1060
    LED CHIP : 150W
    DRIVER: 150W DRIVER 1-10 V
    Warranty: 5 years
    Product Dimension: 380*380*70mm
    Package size: 425*420*120mm
    NW: 6.0KG
    GW: 6.7KG


Specifications:


Type
Power150WMaterialDie-casting Aluminium
Input VoltageAC100-277VLED Brightness Decay<5%/6000hrs
PF>0.95Working Life>50000hrs
Driver Efficiency>90%Working Temperature-20-+40°C
Luminous Flux18000LMStorage Temperature-40-+80°C
ProterctionIP65Protection LevelWet Location/IP65
Color Temperature5000KCable3 core,18AWG
CRIRa>80G.W./N.W.5.5KG/5.0KG
Size380*380*70mmPacking size425*420*120mm

Structure Features:


  • Shell materials: Aluminum & PC

  • Finish: Dark Bronze/ white

  • Net Weight: 6.0kgs

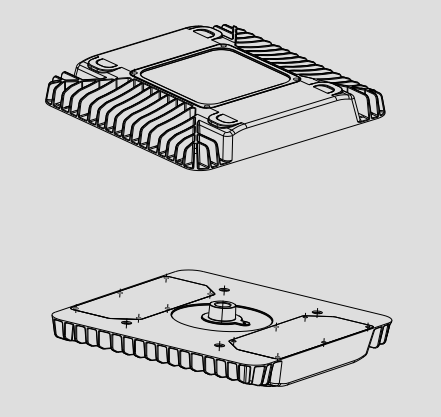

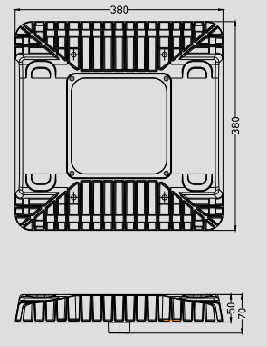

Line Drawing:



Oil Station Lamp AW-YZD-A3 Product pictures:



Applications:

  • Parking structures

  • storage areas

  • shopping area walkways

  • entryway

  • low level security
