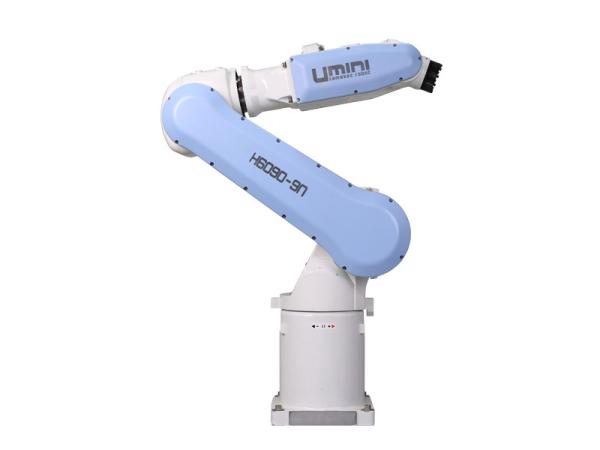

50KG 904.4mm Assembly Line Industrial Robots Arm Six Axis

Categories Industrial Robots Arm
Brand Name: zhiyao
Model Number: U6-0809
Place of Origin: China
MOQ: 1set
Price: Details
Payment Terms: T/T
Supply Ability: 100 sets / month
Delivery Time: 15 work days
Packaging Details: Wooden packing
Name: Industrial Robots Arm, Six-axis robot
Repeatability: ±0.02mm
Freedom of movement: 6
Maximum load: 8KG
Radius of motion: 904.4mm
Body weight: 50KG
Motor power consumption: 2800W
Protection class: IP54
Installation mode: Countertop mounting
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

50KG 904.4mm Assembly Line Industrial Robots Arm Six Axis

Industrial Robots Arm, Six-axis robot


Specification nameParameter
Repeatability±0.02mm
Freedom of movement6
Maximum load8KG
Radius of motion904.4mm
Speed of movementJ1297.5°/s
J2138.5°/s
J3166°/s
J4367.5°mm/s
J5187.5°/s
J6600°/s
Range of motionJ1±170.5°
J2-115.5°∽+69°
J3-50°∽+203.5°
J4±270°
J5-127°∽+135°
J6±360°
Body weight50KG
Motor power consumption2800W
Protection classIP54
Installation modeCountertop mounting
Quality 50KG 904.4mm Assembly Line Industrial Robots Arm  Six Axis for sale
