Lead Edge Cardboard Corrugated Die Cutting Machine Automatic Feeding 1320mm Sheet

Categories Automatic Die Cutting Machine
Brand Name: JIGUO
Model Number: MY-1320Q
Certification: CE
Place of Origin: CHINA
MOQ: 1 set
Price: $160000to $170000/1 Set
Payment Terms: L/C, T/T
Supply Ability: 30 set
Delivery Time: 45 days
Packaging Details: Wrap film or box
Weight: 20T
Warranty: 1 Year
After-sales service provided: Engineers available to service machinery overseas,Video technical support,Field installation
Dimension(l*w*h): 6750*4600*2260mm
Type: Die-cutting Machine,Paper Cutting Machine
Computerized: Yes
Power(w): 25KW
Name: Die cutting machine
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

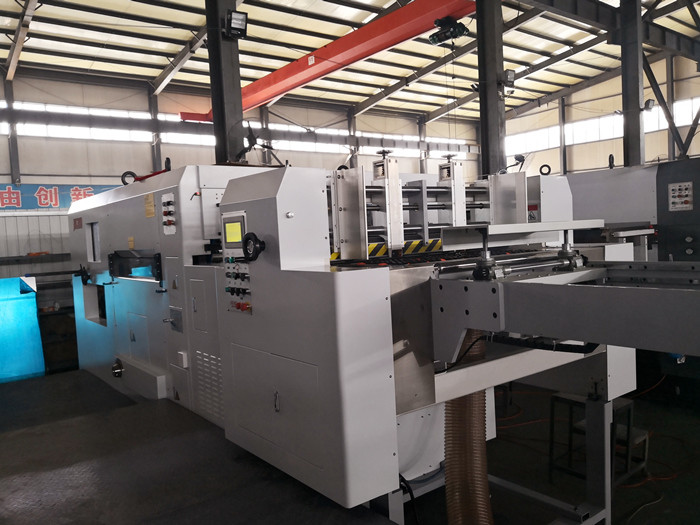

Lead Edge Cardboard Corrugated Die Cutting Machine Automatic Feeding 1320mm Sheet

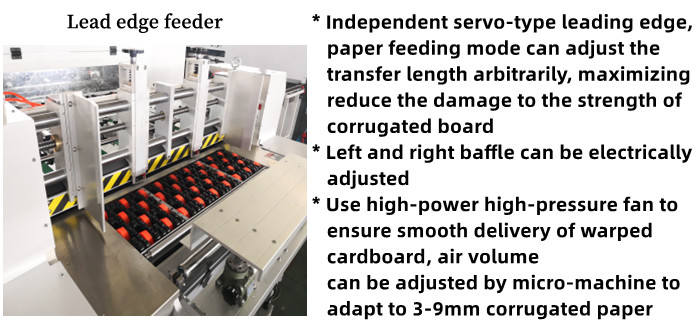

MY-1320Q Lead Edge Feeding Automatic Die Cutting & Creasing Machine Cardboard Making Factory

Main Body

* Worm gear material is made of high quality alloy copper, precision machine tool processing,

hand-scraping, high precision and especially wear-resistant

* The shock absorption booster system makes the machine less wear and tear, more pressure

* Using Japanese SMC rotary joint with pneumatic clutch, low noise, long life and smoother braking

* Equipped with automatic centralized lubrication system, the crank connecting rod of the main drive

adopts forced oil supply


Products Description​

PARAMETER
ModelMY-1320Q
Max. sheet size1320X960(mm)
Min. sheet size450X465(mm)
Max. die cutting size1300X940(mm)
Max.cutting speed6000s/h
Sheet Thickness≤10mm
Max.pressure380T
Total power25kw
Net weight20T
Overall dimension6750X4600X2260mm
Air requirements0.8Mpa,>0.36m³/min

Die Cutting Part

* Safe and flexible design of the rotating device makes the board adjustment board faster

and more convenient

* The frame is made of pneumatic lock plate, the protective beam and the lock nut are designed

to make the template more stable

* The die-cut steel plate is made of 70Cr material, which is more durable; the upper part is

provided with a floating air floating device, which makes the die-cutting board easy to

enter and exit

* Die-cut protective window design for safer operation




Certifications

Our products have passed the ISO9001 quality certification and the CE certification.We have

now grown into a well-known domestic post-press equipment manufacturing expert.

FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: Beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
