| Brand Name: | CFOFC |
| Model Number: | IHD-PLC-16 |
| Certification: | Rohs ISO 9001 |
| Place of Origin: | Shenzhen |
| MOQ: | 1000 |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 100000pcs per week |
| Delivery Time: | 5-8 work days |
| Packaging Details: | 1PC/polybag, 55 x 45 x 20 ( Millimeters) |
| Application: | FTTH FTTB FTTX Network |

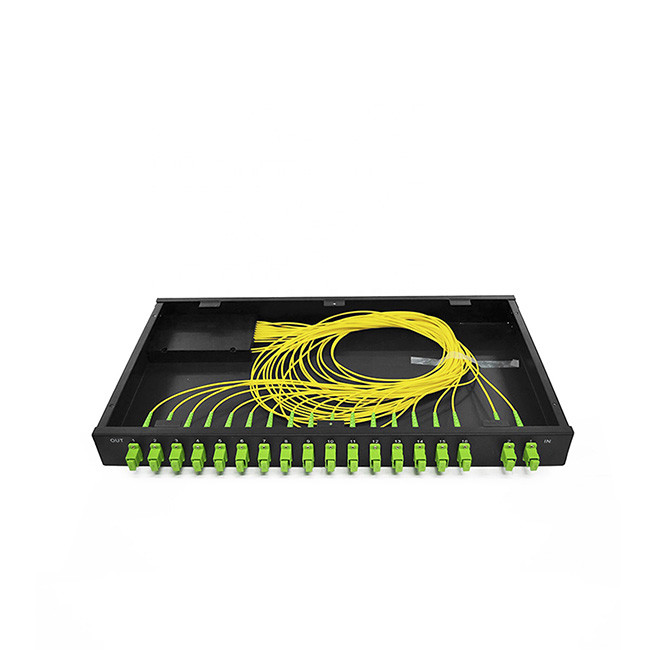

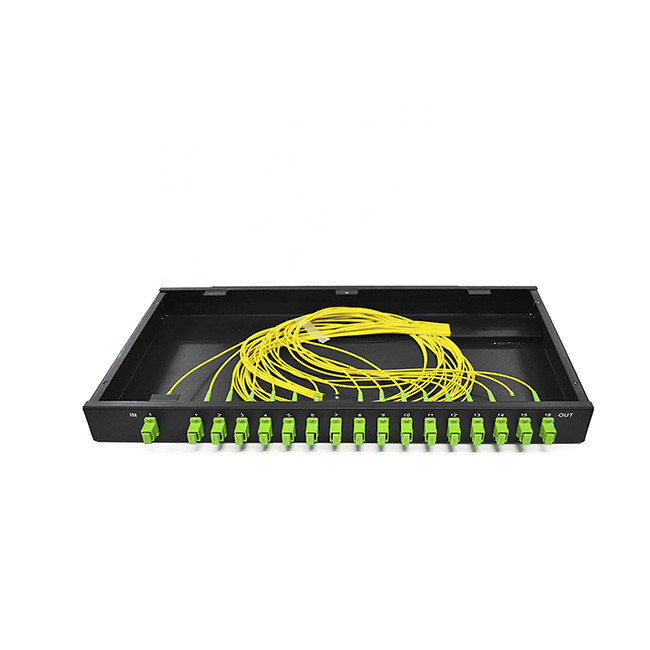

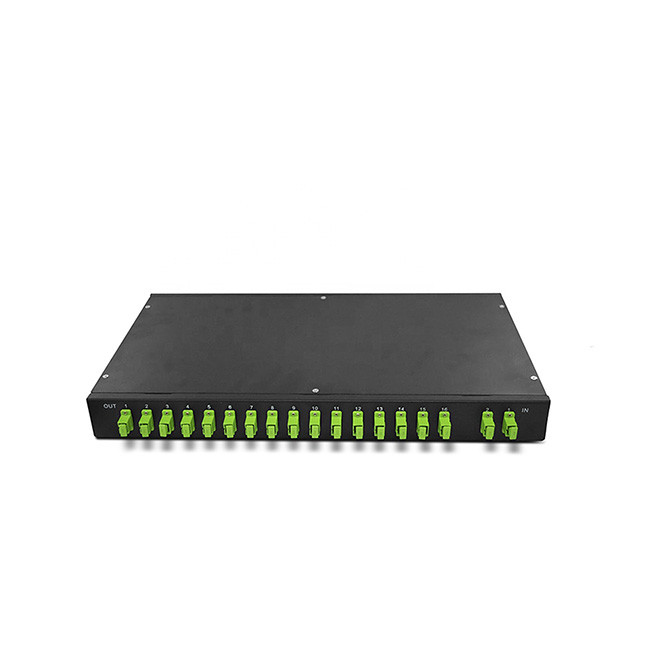

| Product name: | 1*16 2*16 PLC splitter |
| Connector: | SC/APC/UPC |
| Material: | ABS+PC |
| Connector type: | SC |
| Splitter: | splitter |
| Company Info. |
| CFOFC Communications Ltd. |
| View Contact Details |
| Product List |
Description of Fiber PLC Splitter
CFOFC provide full series of standard PLC splitter with 1x2, 1x4,1x6,1x8,,1x16,1x32,1x64,2x2,2x4,2x8,2x16,2x32,2x64, als with Non-standard 1x3 1x6 1x12 for options.It widely used in FTTX,EPOM,BPON,GPON .We launched 1xN,2XN PLC splitter with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks. All wavelengths (1260-1620nm) are not sensitive.
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating wavelength | 1260 ~1650nm | ||||||
| Insertion Loss (dB)(P/S Grade) | 3.6/4.0 | 7.2/7.4 | 10.2/10.5 | 13.5/13.7 | 16.2/16.7 | 20.5/21 | 23.8/24.5 |
| uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 | 1.8 | 2.0 |
| PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
| Return Loss (dB) | ≥55 | ||||||
| Directivity (dB) | ≥55 | ||||||
| TDL(dB) | 0.5 | ||||||
| Operating/Storage Temperature (℃) | -40~85 | ||||||
Features of Fiber PLC Splitter
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical
Application of Fiber PLC Splitter
Fiber to the point (FTTX)
Fiber to the home (FTTH)
Passive optical networks(PON)
Local area networks (LAN)
Cable television (CATV)
2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Product distribution involves multi-fields, dozens of countries
including some developed countries.
FAQ
1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality.
Mixed samples are acceptable as well.
2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways
not on the end.
3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70%
before shipment.
4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic
Patch Cord, Fiber Optic PLC Splitter. Our products are mainly
exported to Europe, South America, and some other countries and
areas.
5. Is there any discount on the product?
We have several production promotion activities every month,
welcome to inquire.
|
