Customized ISO14001 Honeycomb Cladding Wall Panel Antibacterial

Customized Design Honeycomb Panels / ISO14001 Honeycomb Cladding Wall Panel

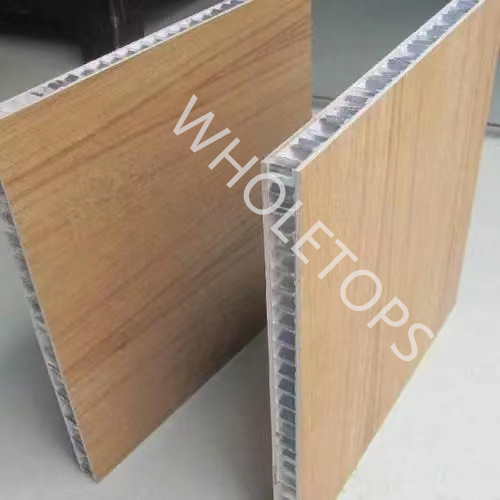

Aluminum Honeycomb Sandwich Panel

Product Information:

WHOLETOPS brand Aluminum Honeycomb Sandwich Panel is a sandwich panel consisting of two aluminum plates (generally 1100 and 3003) as face sheets and hexagonal aluminum honeycomb cells as the core material, bonded together by aviation-purpose epoxy adhesive film. This type of sandwich panel is the most widely used honeycomb panel, utilized in building facades, ceilings, decorations, furniture and more.

Fire-proofing: Grade A
Sound insulation: weight-counted sound insulation quantity 25dB
Thermal Insulation:Thermal conductivity 0.527W/m·K
Strong weather resistance:the material is self-cleaning. Using rolling coating technology with 70% flurocarbon.
Minimum radius of arc slab is 300mm, its one-time process forming no need second time process.ensure no damage to the panel strength.

Product Overview:

Material:Aluminum

Aluminum Alloy:1100/3003/5005

Thickness:8mm, 10mm , 12mm, 15mm, 18mm, 20mm 25mm

Surface Finished:PVDF Coated/Powder Coated

Coating Brand:PPG/Akzo Nobel

Warranty:10-20 years

Size:Customized

Color:Customized

Packing:Wooden Box

Warranty:10-20years

Class Fire Prevention:A2

MOQ:500㎡

Specification:

1. Total Thickness: 8mm, 10mm , 12mm, 15mm, 18mm, 20mm, 25mm and so on.

2. Top Panel: aluminum alloy sheet coated with fluro-carbon resin((PVDF) coating with 0.8 – 1.0 mm thickness.

3. Core: aluminum honeycomb core

4. Bottom Panel: aluminum sheet with PVDF coated / Power coated with 0.8—1.0mm thickness

5. Surface finish: PVDF coated / Power coated

6. Aluminum Alloy: 1100, 3003, 5005

7. size: width ≤ 1500mm, length ≤ 5800mm

Scopes of Application:

1. Building exterior walls decoration (especially for high-rise building)Curtain wall decoration, advertising aboard, signboards,ceiling etc.

2. Interior decoration, wall partitions, door, ceiling

3. Advertising board , signboards,insulation cars,

4. prototype of cabinet and so on

Our Company

Our workshop

Installing

Company Certificate

Packing

GuangDong Wholetops Building Materials Industry Co., ltd. is a national high-tech & professional manufacturing enterprise.

We are specialized in produce : solid aluminum panel, perforated aluminum solid panel, curve aluminum panel, hyperbolic aluminum panel, aluminum honeycomb panel &special aluminum ceiling and other related metal building materials.
