HEL 10D471K High Energy Varistor , 1 Circuit Through Hole Disc Varistor

1 Circuit Through Hole Disc Varistor HEL 10D471K 10mm 470V Imax 2.5KA S300K10 471KD10

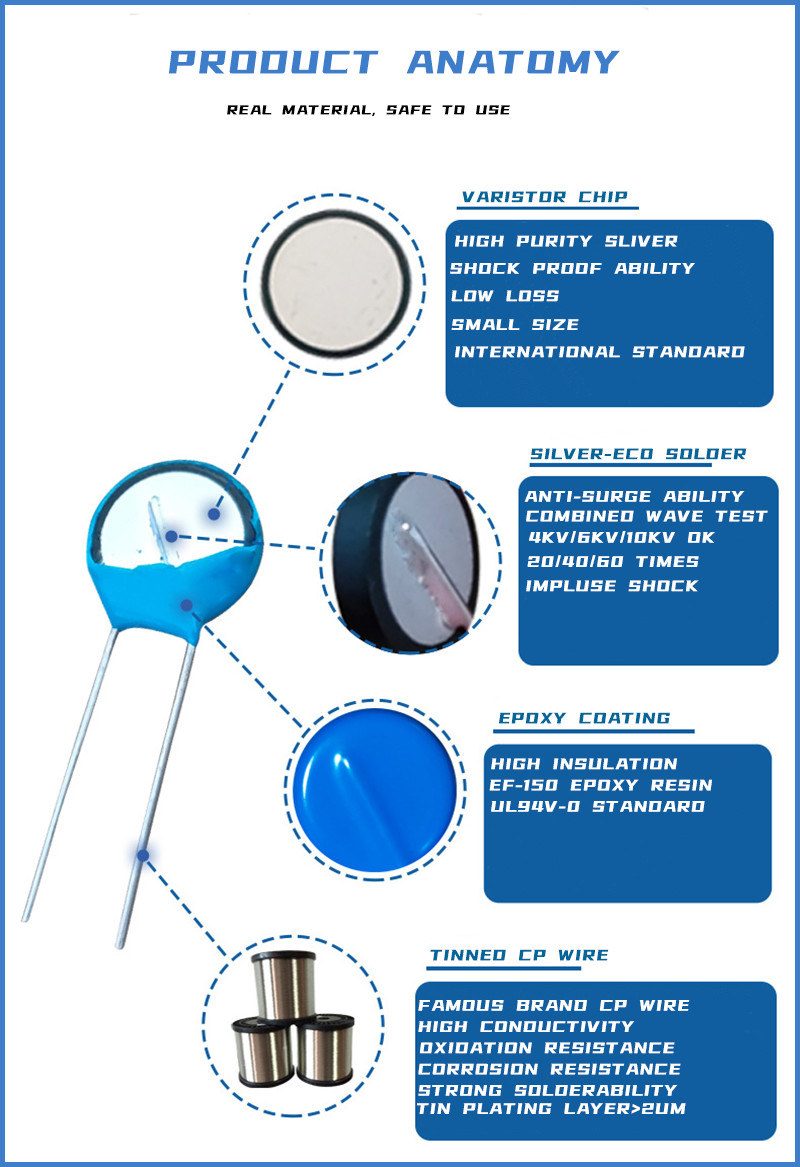

Features Of The Disc Varistor HEL 10D471K

◆ Small size, large flow capacity and energy tolerance

◆ Epoxy resin insulation encapsulation

◆ Response time: <25ns

◆ Ambient temperature: -40℃～+85℃

◆ Insulation resistance: ≥500MΩ

◆ Varistor voltage temperature coefficient: -0.5%/℃

◆ Chip diameter: 5, 7, 10, 14, 20, 25, 32, 40mm

◆ The allowable deviation of the varistor voltage is: K±10%

Function Of The Disc Varistor HEL 10D471K

①Overvoltage protection of transistors, ICs, thyristors and semiconductor switching elements and various electronic and electrical equipment
②Surge absorption and overvoltage protection of household appliances
③Industrial electrical surge absorption
④Electrostatic discharge and noise signal cancellation
⑤Surge absorption of relays and solenoid valves
⑥Overvoltage protection of leakage switch
⑦Lightning protection and overvoltage protection of telephone program-controlled switches and communication equipment

Application Of The Disc Varistor HEL 10D471K

■ Power supplies

■ Power systems

■ Line voltage

■ Telecom systems

■ White goods / appliances

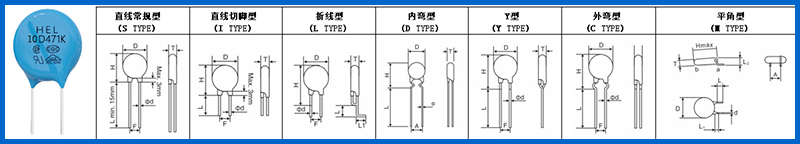

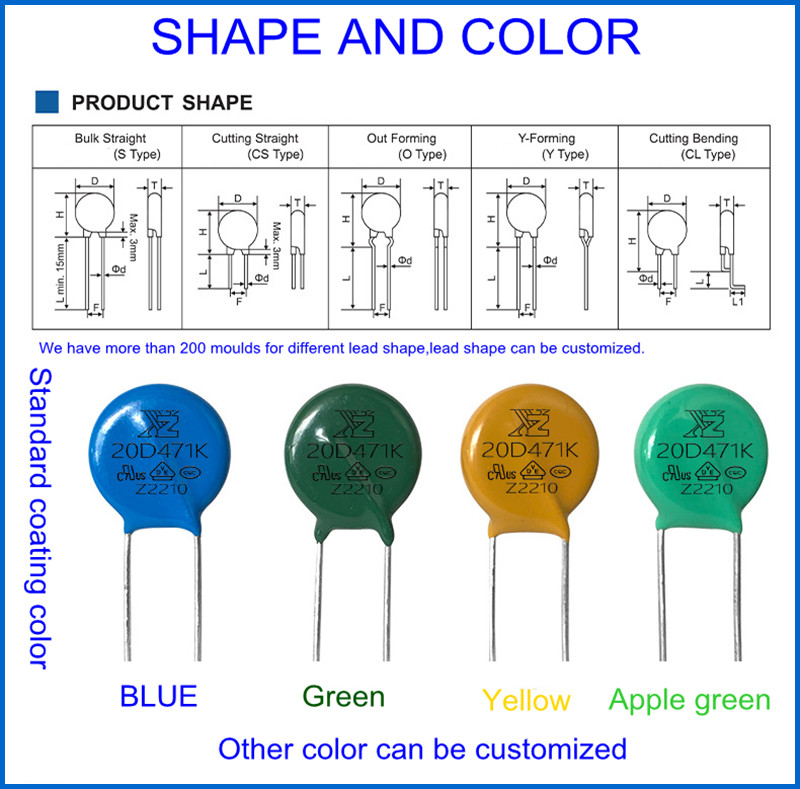

Dimension Of The Disc Varistor HEL 10D471K(mm)

Note: If the foot type is non-linear such as outward bending, usually Hmax=17mm

Electrical Parameters Of The Disc Varistor HEL 10D471K

180 to 680 The maximum limit voltage test current is 5A.

Inrush current impulse level Of The Disc Varistor HEL 10D471K

Remark: the Impluse voltage testing standards(1.2/50μs) with 40 times are only applicable to the products

which with the varistor voltage more than 430V.

Safety certification and corresponding models Of The Disc Varistor HEL 10D471K

Remark:
CQC (GB/T10193, GB/T10194).
UL1449(VZCA2/UL,VZCA8/C-UL), 105℃, 125℃, 130℃.
VDE (IEC61051-1, -2, -2-2).
CSA (C22.2 No.269.5-17).
Q1 = CQC (GB4943.1, GB8898).
Q2 = VDE (IEC60950-1 Annex.Q).
The above certification specifications may be changed, if necessary, please ask the quality control

department for the latest version.

Derating curve graph and volt-ampere characteristic graph

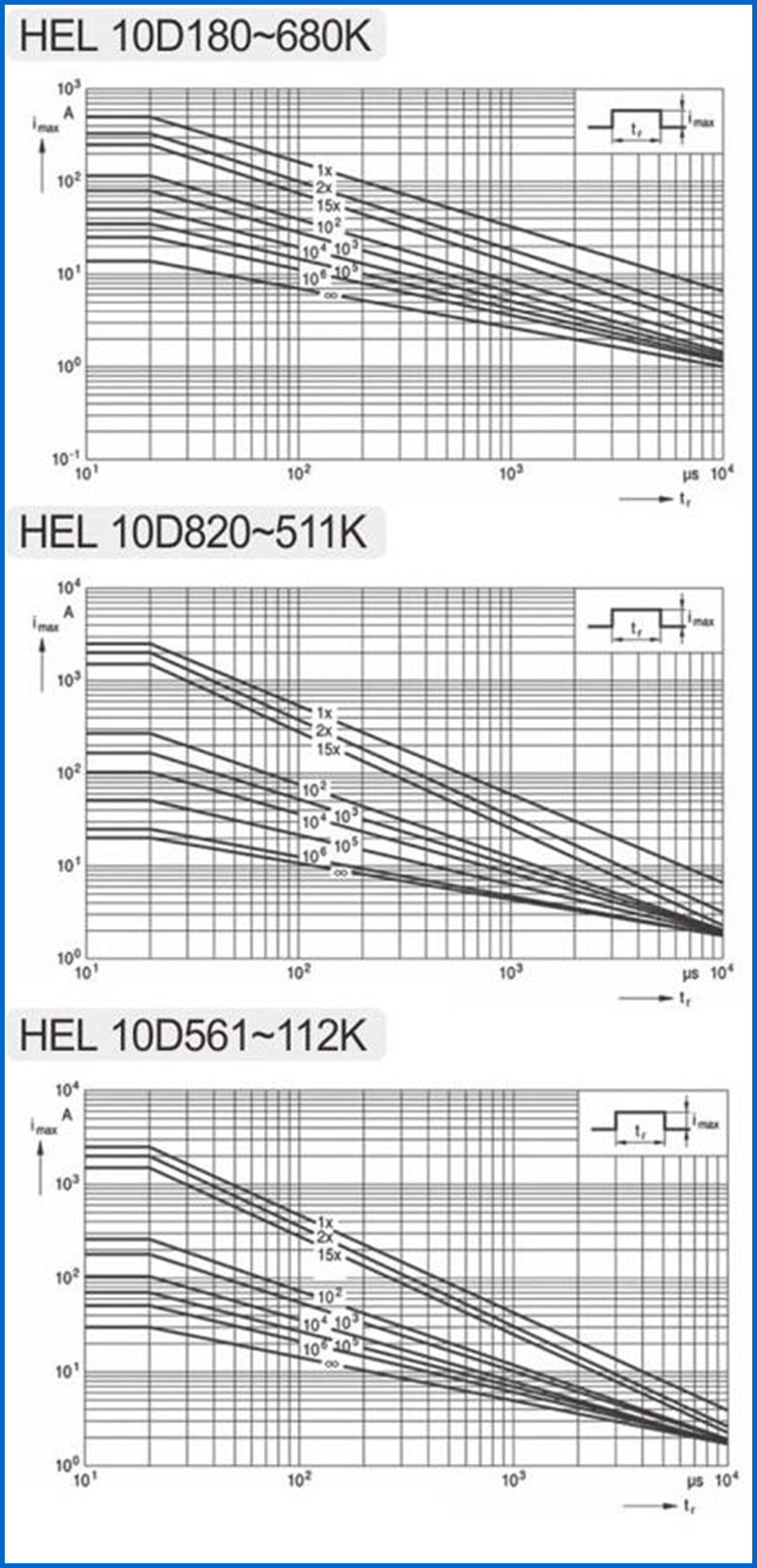

Maximum surge current imax = f(tr,pulse train)

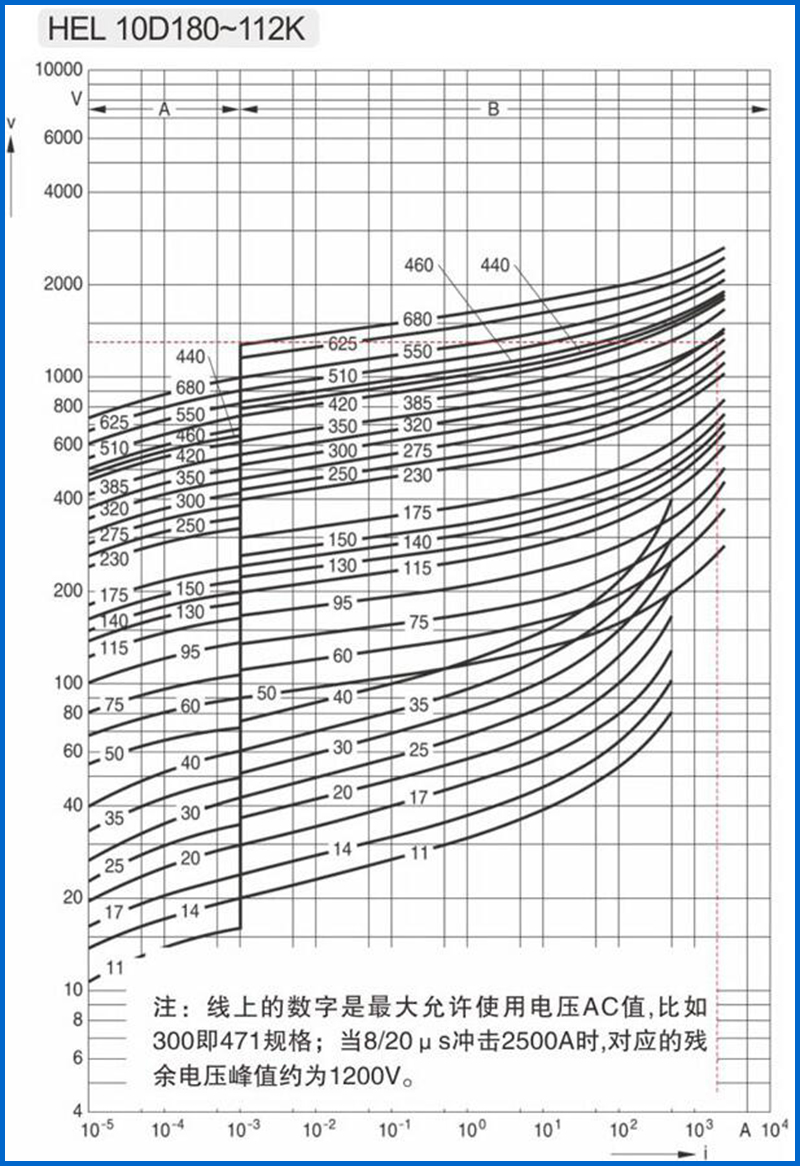

v/i characteristics

A=Leakage current, B = Protection level for worst-case varistor tolerances
