| Categories | Omron PLC CP1H |
|---|---|
| Brand Name: | OMRON |

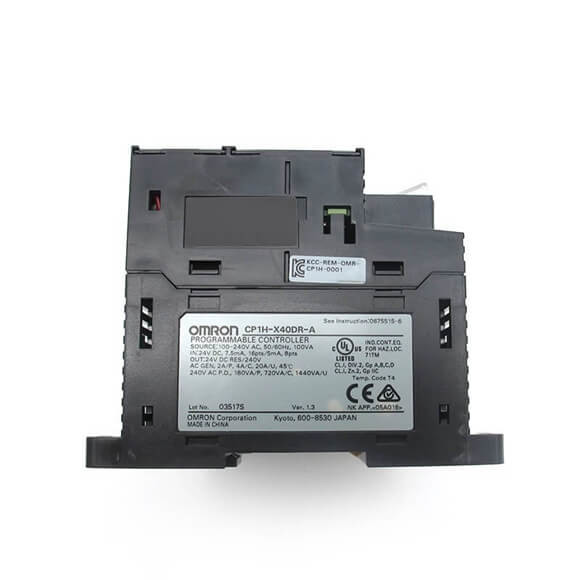

| Model Number: | CP1H-X40DR-A |
| Place of Origin: | China/Japan |
| MOQ: | 1/pc |
| Price: | $50-500 |
| Supply Ability: | 10pc/per week |
| Packaging Details: | Carton packaging |
| Payment Terms: | T/T, western union |
| Condition: | 100% original and new |
| Warranty: | 1 Year |
| Package: | Original Packing |
| Shipping Ways: | DHL,FedEx,EMS |
| MOQ: | 1 piece |
| Color: | Black or white |
| Model number: | CP1H |
| Brand: | OMRON |
| Product name: | Programmable Logic Controller |
| Packaging: | Original carton |
| Port: | selectable |
| Company Info. |
| Changsha Zhinian Automation Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| AC power supply models | DC power supply models | ||
| Model | CP1H-@@@-A | CP1H-@@@-D | |
| Power supply | 100 to 240 VAC 50/60 Hz | 24 VDC | |
Operating voltage range | 85 264 VAC | 20.4 to 26.4 VDC (with 4 or more Expansion Units and Expansion I/O Units: 21.6 to 26.4 VDC) | |
| Power consumption | 100 VA max. (CP1H-@@@-A)(page 28) | 50 W max. (CP1H-@@@-D)(page 28) | |
Inrush current (See note.) | 100 to 120 VAC inputs: 20 A max. (for cold start at room temperature) 8 ms max. 200 to 240 VAC inputs: 40 A max. (for cold start at room temperature), 8 ms max. | 30 A max. (for cold start at room temperature) 20 ms max. | |
| External power supply | 300 mA at 24 VDC | None | |
| Insulation resistance | 20 MΩ min. (at 500 VDC) between the external AC terminals and GR terminals | No insulation between primary and secondary for DC power supply | |
| Dielectric strength | 2,300 VAC at 50/60 Hz for 1 min between the external AC and GR terminals, leakage current: 5 mA max. | No insulation between primary and secondary for DC power supply | |
| Noise immunity | Conforms to IEC 61000-4-4. 2 kV (power supply line) | ||
| Vibration resistance | Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes each. Sweep time: 8 minutes ´ 10 sweeps = total time of 80 minutes) | ||
| Shock resistance | Conforms to JIS C60068-2-27. 147 m/s2 three times each in X, Y, and Z directions | ||
| Ambient operating tempera- ture | 0 to 55°C | ||
| Ambient humidity | 10% to 90% (with no condensation) | ||
| Ambient operating environ- ment | No corrosive gas | ||
| Ambient storage temperature | -20 to 75°C (Excluding battery.) | ||
| Power holding time | 10 ms min. | 2 ms min. | |
|
