| Categories | SMD COB LED |
|---|---|
| Brand Name: | PHOENIX |
| Model Number: | COB CHIP |
| Certification: | LM80 CE ROHS |
| Place of Origin: | SUZHOU |
| MOQ: | 4000PCS |
| Price: | Negotiation |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 800KK PER MONTH |
| Delivery Time: | 7-10 DAYS |
| Packaging Details: | 4000PCS /ROLL |
| Type: | COB LED |
| Dimension/mm): | 13.35×13.35×1.0mm |
| Color Temperature/K: | Tc:2700K-6500K |
| Power: | 8w-30w |
| Applications: | Hotel，Art Gallery，Museum,Ceiling lamp |
| Luminous Flux/LM: | >650LM |
| Warranty(Year): | 2 years |
| Working Time (hours): | 20000 |
| Color: | white |
| Safety: | Lead-Free |
| Viewing Angle(°):: | 120 |
| Color Rendering Index(Ra): | 70 80 |
20w 30w High Efficiency 6500K 80CRI Cool White COB Leds
Quick details:
| Type: | Cob led |
| Warranty(Year): | 2-Year |
| Emitting Color: | White color |
| Luminous Efficacy(lm/w): | 650lm |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 20000 |
| Power: | 8w |
| Viewing Angle(°): | 120 Degree |
| Color Rendering Index(Ra): | 70 80 |
| Color Temperature: | 2700-6500K |
| Place of Origin: | Suzhou ,jiangsu |
| Application: | Hotel,Art Gallery,Museum,Ceiling lamp |
| Size: | 13.35×13.35×1.0mm |
Product specification:

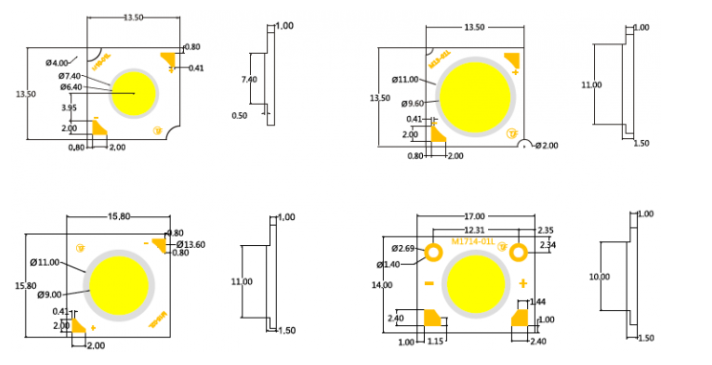

Package Structure
Absolute Maximum Ratings
Parameter | Min | Max | Unit |
Forward Current | 300 | mA | |
Forward Voltage | 22 | 26 | V |
Operating Temperature | -30 | +85 | ℃ |
Storage Temperature | -40 | +100 | ℃ |
Soldering Temperature | 350 | ℃ | |
Junction temperature | 125 | ℃ |
Typical Electro-Optical characteristics curves:
CCT | Luminous Flux (lm) | Efficacy (lm/w) | CRI (Ra) | Voltage (V) | ||
| Min. | Typ. | Typ. | Min. | Min. | Typ. | |
| TC=2700K | 600 | 700 | 95 | 95 | 22 | 24 |
| TC=3000K | 700 | 750 | 103 | 95 | 22 | 24 |
| TC=3500K | 700 | 750 | 103 | 95 | 22 | 24 |
| TC=4000K | 800 | 850 | 110 | 95 | 22 | 24 |
| TC=5000K | 800 | 850 | 110 | 95 | 22 | 24 |
| TC=6000K | 800 | 850 | 110 | 95 | 22 | 24 |

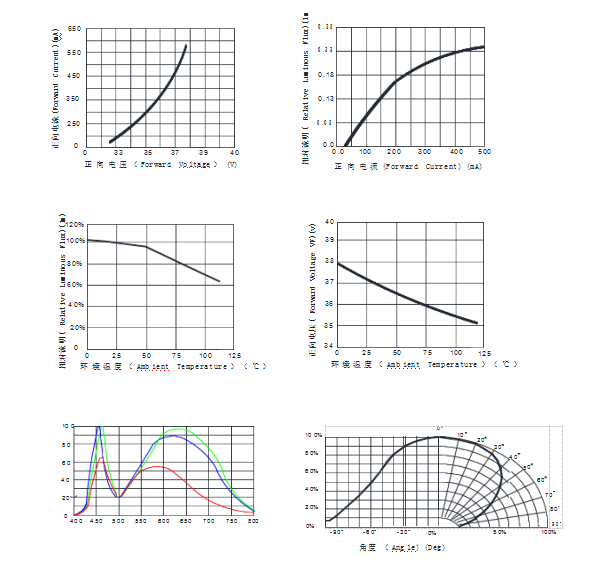

Typical Characteristics Curves
COB LED Screen packaging technology has great advantages compared with SMD packaging technology. Its pros: smaller space of LED beads, better protection performance, long service life, and low dead light rate. Its cons: difficulty in manufacturing finished products, maintenance inconvenience
|
