Integrated External Insulated Facade System , Facade Cladding Systems Stable

Insulation integrated cladding system for the cladding wall

Insulation integrated cladding system is a new building material for exterior curtain wall, it is constituted by insulation core with Fireproof Grade A,higher strengthen glue, aluminum sheet or steel sheet with marble/wooden surface and heat-reflective/anti-temperature effective or nature stone thinner panel or ceramic panel. The panel is not only with good fireproof properties,anti chemical corrosive abilities, and afford wind pressure, earthquake and so on, but also it can afford a super stress change because of temperature and humidity. At the same time, there are many better features, like light weight high strength, energy save and environmental, colorful surface, high anti-weather properties, self-cleaner, easy to install and so on.

It is not only used for exterior wall insulation and decoration for new building, and also for old building energy conservation reconstruction, additionally, Interior decoration is also ok. It can not be acted by region difference.

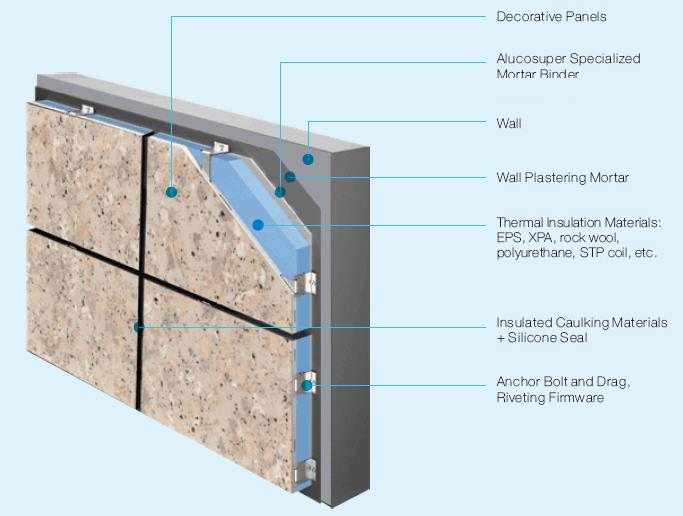

Product structure drawing


Decorative insulation specification:

Surface Panel
Material		GI/GL Steel Sheet			Aluminum Sheet
Thickness		0.6-0.8mm			1.0-1.5mm
Normal Size		Length:800,1200,2400mm Width:400,600,1200mm
Core Material
Material	RW		PU	EPS		TPS
Density	≥120Kg/m³		≥35Kg/m³	≥22Kg/m³		≥30Kg/m³

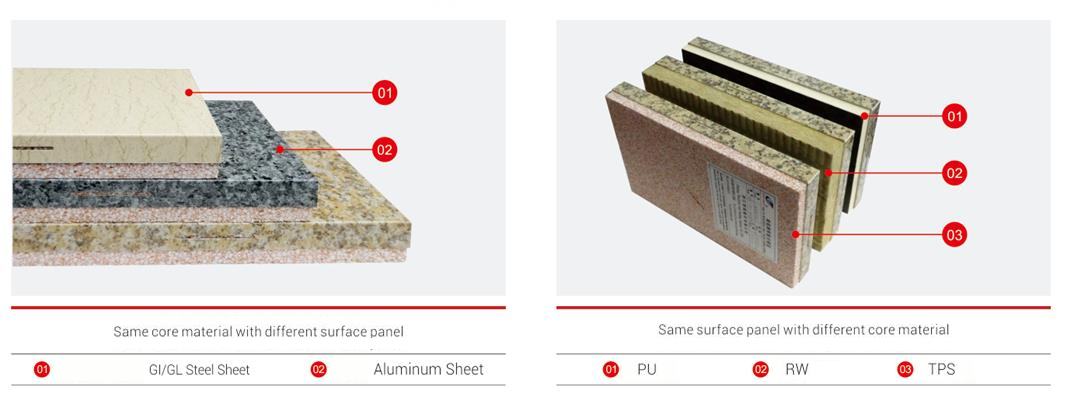

Classification:


Product Advantage

Thel heat conductivity coefficient of core material less than 0.060 w/(m.k), Fireproof Grade B1.

Surface color coated aluminum panel thickness range from 1.0 to1.5mm or coated galvanized steel range from 0.6 to 0.8mm thickness. Improve the fireproof grade and anti-stress strength of insulation panel

3.Perfect decorative. Coated metal sheet can be with PVDF metallic painting, quality painting and more colors for choice.

Easy to maintain. It can be blocking-up rain, incrustation scale to infiltrate, easy to clean.

Perfect performance in process, just like plasticity, impact resistance, construction loading, heat insulation, voice insulation etc

Durable practical applicability. Anti-corrosion, durability, and uv-resistant, it can resist to be corrosive by kinds of medium.

Easy to install. It breaks through former using anchoring fix method to use integrated panel bonding cement mortar and dedicated anchoring directly.

Coated aluminum sheet with low density, recycle and save resource.

Product Application

Decorative insulation panel data monitor

Test Item		Test Result
Compress Strength		0.28 MPa
Flat Tension strength		0.13MPa, insulation material damage, after 48h water-tolerant, 0.11MPa insulation material damage
Bending Strength		Horizontal 305MPa,Vertical 293MPa
Shear Strength		119.9 MPa
Weather Resistance		After 80 times high temperature(70℃)- spraying water(15℃) circular and 5 times heater (50℃)-freeze(-20℃) circular, no water seepage fissure, no pulverization, no hollowing, no peel off. Tensile adhesive strength is 0.17MPa, damage area lies in inside of insulation layer
Wind Load Resistance		After 12000Pa wind load resistance test, sample without damage, system wind load resistance data is 8000Pa, coefficient K =1.5
Combustion Performance	Core: polyurethane	Grade B1	Smoke toxicity with safety grade ZA1
	Core:Rock wool	Grade A
Heat Conductivity Coefficien	Core: polyurethane	0.0249 W/(m.k)
	Core:Rock wool	0.044 W/(m.k)

Comparison among decorative insulation panel, natural stone material and real stone painting

Item	warranty	Decorative	Installation	Insulation feature	Safety	overall costs
Decorative insulation pane	25 years	Colorful, size controlled, perfect decorative	Light weight, easy to install	Best	Combined by bonding and anchoring, high safety	Diversified combined, low cost and controlled
Natural stone material	Aboved 25 years	Few varieties, hard to control aberration	Difficult to transport and installation	Normal	Heavy weight, lower safety	Scarce resource, higher cost
Real stone painting	3-5years	Bad weather resistance	Influenced by environment in construction	bad	Easy to drop, lower safety	Sole low cost, shorten use life
