700w Piezoelectric Transducer Ultrasound With 4pcs PZT4 Piezoelectric Ceramics

Categories Ultrasonic Piezoelectric Transducer
Brand Name: QRsonic
Model Number: QR-3030-4BZ
Certification: CE
Place of Origin: China
MOQ: 1 pcs
Price: Negotation
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Delivery Time: 3 workdays
Packaging Details: Packed in carton
Products Name: piezoelectric transducer ultrasound
Frequency: 30 khz
Output power: 700 watt
Joint bolt: M10
Ceramic disc Diameter: 30mm
Qty of ceramic discs: 4pcs
Capacitance: 6.2-7.2nf
Amplitude: 6um
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

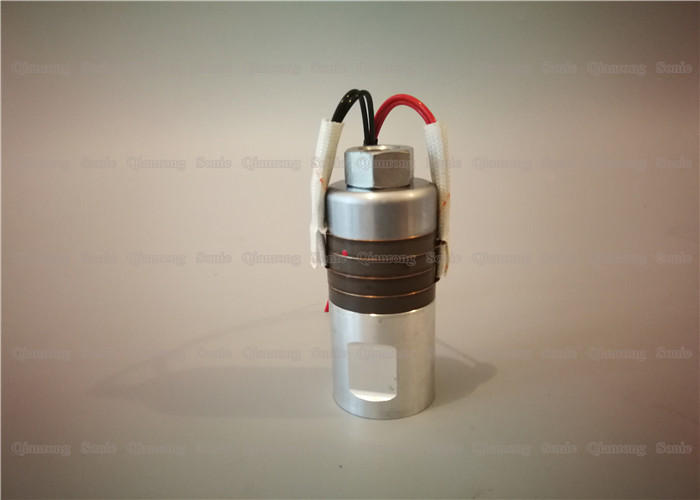

700w Piezoelectric Transducer Ultrasound With 4pcs PZT4 Piezoelectric Ceramics

High Frequency 700w 30Khz Ultrasonic Transducer with 4pcs PZT4 Piezoelectric Ceramics


Specifications:


ModelQR-3030-4BZ
Frequency30khz
Output power700 watt
Joint boltM10
Ceramic disc Diameter30mm
Qty of ceramic discs4pcs
Capacitance6.2-7.2nf
Amplitude6 um
ApplicationPlastic welding machine

Parameters:


The columnar type NTK TYPE

Item No.


Connect screw


Ceramic dia (mm)


Qty of Ceramic (pc)

Frequency (khz)


Capacitance

power (W)


YellowGreyBlack
7015-4BZM20 X 1.57041512500-1400017000-190002600
6015-4BZM20 X 1.5604158000-1000010000-1200012500-135002200
6015-6BZM20 X 1.56061514000-1600019500-210002600
5015-4BZM18 X 1.55041512000-1300013000-1430015000-170001500
4015-4BZM16 X 14041510000-1100010500-11500700
5520-4BZM18 X 15542010000-1100010500-1150014300-200002000
5020-6BZM18 X 1.55062018500-2000022500-250002000
5020-4BZM18 X 1.55042011000-1300013000-1500015000-170001500
5020-2BZM18 X 1.5502206000-65006500-70008000-9000800
5020-4CZM18 X 1.55042011000-1200013000-1400014500-160001500
5020-4HZM18 X 1.55042011000-120001500
5020-4BLM18 X 1.55042011000-125001500
4020-4BZ1/2-20UNF404209000-100009500-11000900
4020-2BZ1/2-20UNF402204800-5500500
3820-4BZ1/2-20UNF384206500-7500800
The columnar type NTK TYPE

Item No.


Connect screw


Ceramic dia (mm)


Qty of Ceramic (pc)

Frequency (khz)


Capacitance

power (W)


YellowGreyBlack
5025-2BZM12 X 1502255000-56007000-8000500
3828-2BZ1/2-20UNF382283800-4300500
3828-4BZ1/2-20UNF384287600-850010500-12000800
3028-2BZ3/8-24UNF302282700-31003400-3800400
3028-4BZM10*1304286000-7000700
2528-4FZM8 X 1254283900-4300400
2528-2FZM8 X 1252281950-22002200-2500300
3030-4BZM10304306200-6900700
3035-2FZ3/8-24UNF302352700-3100500
3035-4BZM10 X 1304355000-6200800
2535-2FZM8 X 1252351900-2200400
2540-2BZ3/8-24UNF252402000-2300500
3040-4BZM10304405500-62001000
3050-4BZM8304505500-6200600
1560-2BZM6 X 0.7515260700-800100

Application:


Ultrasonic technology is a widely used non-destructive testing technology based on acoustic theory and is used in electronics, communications, medicine, biology and physics. In modern detection technology, the transducers developed by ultrasonic technology are getting more and more attention because of their high sensitivity and high precision.
Transducers commonly used in the detection process are: piezoelectric transducers, magnetostrictive transducers, electromagnetic transducers and laser transducers. The most commonly used is a piezoelectric transducer, whose core component is a piezoelectric wafer. The piezoelectric wafer can be deformed under the action of pressure, resulting in polarization of the wafer itself, and positive and negative bound charges appear on the surface of the wafer, and this effect is a piezoelectric effect. Moreover, the piezoelectric effect is reversible, that is, deformation occurs after a voltage is applied to the wafer. In the detection process, the ultrasonic effect can be generated by the inverse piezoelectric effect of the ultrasonic probe, and the piezoelectric effect is used to achieve the purpose of receiving the ultrasonic wave.


High Frequency 700w 30Khz Ultrasonic Transducer with 4pcs PZT4 Piezoelectric Ceramics
