Categories | High Precision Laser Distance Sensor |
---|---|
Brand Name: | JRT/OEM |
Model Number: | U81-yx1202142 |
Certification: | CE ,ISO9001,ROHS, FCC ,FDA. |
Place of Origin: | Chengdu China |
MOQ: | 1 |
Price: | Welcome to contact us for discussion |
Payment Terms: | T/T, Western Union, Pay pal |
Supply Ability: | 10000 pcs/day |
Delivery Time: | 1-3 working days |
Packaging Details: | neutro-packing |
PRODUCT NAME: | Laser Distance Sensor Arduino |
ACCURACY: | +-1mm |
size: | 41X17X7MM |
Weight: | About 4g |
Measuring Range: | 0.03-5m |
Voltage: | DC3.3V |

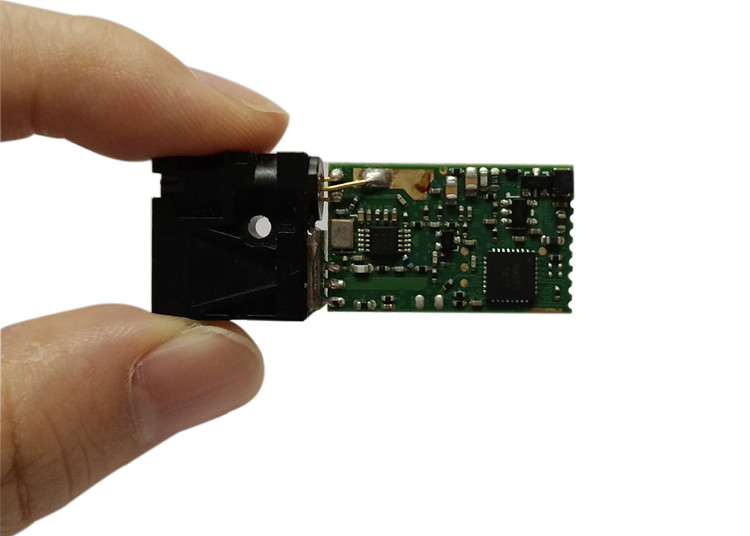

5M Intelligent World Advanced High Precision Laser Distance Sensor Arduino USB 1mm
Customers ordered JRT High Precision laser distance sensor,
normally it can be shipped to you in 3-5 working days, if we got
your payment and have stocks.
You can use our High Precision laser distance sensor module to test
via the usb adapter easily.
High Precision Laser Distance Sensor Benefits
Suitable for work at home and in private construction;
Reliable design - resistant to scratches, drops and designed for a
long service life;
Measurement of long distance of 5m;
Tracking mode - for continuous measurement;
Additional characteristics
Storage temperature: from -20 to +60 degrees.
Technical specifications For the High Precision Laser Distance Sensor
Model Number | U85 |
Accuracy | ±1 mm |
Measuring Unit | mm |
Measuring Range (without Reflection) | 0.03-5m |
Measuring Time | 0.125~4 seconds |
Laser Class | Class II |
Laser Type | 620nm-690nm, <1mW |
Dimensions | 41*17*7mm |
Weight | About 4g |
Voltage | DC2.0~3.3V |
Operating Temperature | 0-40 ℃ (32-104 ℉ ) |
Storage Temperature | -25~60 ℃ (-13~140 ℉) |
![]() |
