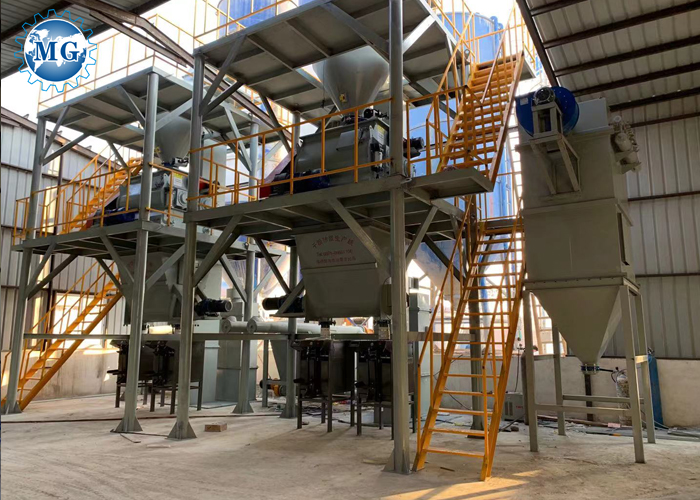

CE Supplier Automatic Dry Mortar Mixer Machine
Putty Powder Production Line
1. Decription
This production line adopted latest Germany Technology,the silo is in tower type,and latest management system applied in automatic control,improved the man-friendly operation and automatic in large extent.The capacity of this automatic dry mortar production line at 3-10 thousand tons one year,
Generally, there are EIGHT parts of the dry mix mortar plant
Wet Sand Drying System: equipped with Triple-cylinder dryer to reduce the sand water content to ≤0.5%;
Raw Materials Storage System: store all kind of raw materials ;
Lifting & Conveying System: Bucket Elevator, Belt Conveyor, Screw Conveyor, Crane;
Weighing System: depending on different formulas, weighing in proportion accurately;
Mixing System: with 60~180s blending, materials are mixed evenly;
Bagging System: end products are packed by 25/50/1000kg bags, or stored in silos, or delivered by bulk tank truck directly;
Dust Collection System: collect dust from drying system, weighing system, mixing system, packing system, protect the working and living environment.
Control System: Semi-auto/Full-auto Control, convenient for operation and management.
2. Product Technical Parameter
Technical parameter of MG full automatic dry mortar production line:
| Model | Name | Capacity | Machine height | Workshop area |
| MG-3.0 | Simple dry mortar production line | 3T/H | 3.5m | 400-500 m2 |
| MG-3.1 | Improved simple dry mortar production line | 4-5T/H | 3.5m | 400-500 m2 |
| MG-3.2 | Semi-automatic dry mortar production line | 6-8T/H | 6m | 600-800 m2 |
| MG-3.7 | Full automatic dry mortar production line | 10-12T/H | 8m | 800-1000m2 |
Raw Material of Dry Mortar Plant:
1. Cementing material: cement, lime, plaster.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder etc.
4. Water-retention and thickening material.
5. Chemical additives.

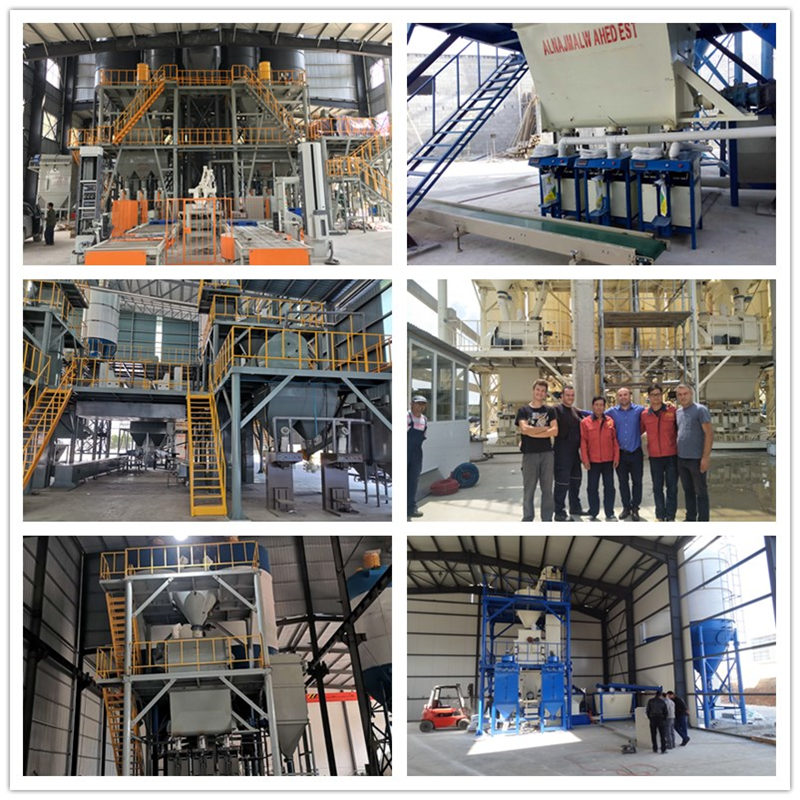

4. Product Abroad
5. About Us:

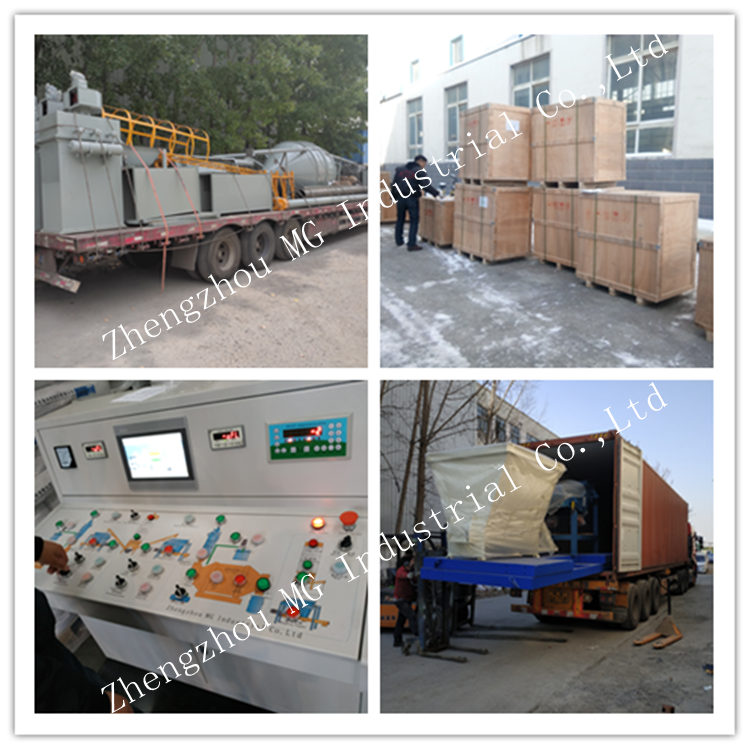

6. Packing & Shipment
|
